Product Description

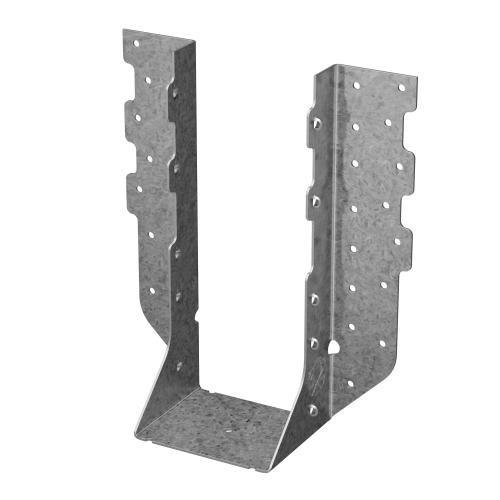

The Simpson Double 2 x 10 Face-Mount Joist Hanger ZMAX HHUS210-2Z is a heavy-capacity structural connector from Simpson engineered for framing applications where doubled 2x10 lumber joists must carry higher loads with reliable, long-lasting performance. Built with a ZMAX coating for enhanced corrosion resistance and a double-shear nailing design that distributes load through two points on each joist nail, this face-mount hanger is a go-to choice for contractors and builders who need a strong, efficient connection without compromise.
Key Features
- Double-shear nailing design - distributes load through two points on each joist nail, delivering greater connection strength so builders can achieve heavy-capacity performance with fewer nails overall.
- Heavy-capacity construction - engineered specifically for applications where higher loads are required, giving structural professionals confidence when framing demanding floor and roof assemblies.
- ZMAX coating - provides an enhanced level of corrosion resistance beyond standard galvanized finishes, making this hanger well-suited for moisture-prone or corrosive environments.
- Compatible with all common nails - no specialty fasteners are needed, keeping installation straightforward and jobsite material requirements simple.
- Face-mount configuration - allows the hanger to attach directly to the face of the supporting member, streamlining installation and fitting naturally into standard doubled 2x10 framing layouts.
Why This Product
- Built for higher-load framing demands - the heavy-capacity design addresses structural connections that standard hangers are not rated to handle, reducing the need for workarounds or additional hardware on demanding projects.
- Faster installation without sacrificing strength - the double-shear nailing system achieves superior load distribution using fewer nails, helping crews work more efficiently while maintaining connection integrity.
- Long-term durability in tough conditions - the ZMAX coating is specifically formulated for enhanced corrosion resistance, meaning this hanger holds up in environments where moisture exposure would degrade a standard galvanized connector over time.
- Simplified fastener sourcing - compatibility with all common nails means no special-order fasteners are required, keeping procurement straightforward and projects moving on schedule.
Specifications
- Model No.: HHUS210-2Z
- Gauge (Ga.): 14
- W (in.): 3 5/16
- H (in.): 9 3/16
- B (in.): 3
- Coating/Material: ZMAX
- Country of Origin: United States
Options
Contact us for Configurable Options and Special orders
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What makes the HHUS210-2Z different from a standard joist hanger?
The HHUS210-2Z is a heavy-capacity hanger built for applications where higher loads are required. Its double-shear nailing design distributes the load through two points on each joist nail, providing greater strength than conventional single-shear hangers while using fewer nails overall.
What type of nails are compatible with the HHUS210-2Z?
This hanger is designed to work with all common nails, so no specialty fasteners are required. This makes installation straightforward and keeps jobsite material requirements simple.
What does the ZMAX coating provide?
The ZMAX coating delivers an enhanced level of corrosion resistance compared to standard galvanized finishes, making the HHUS210-2Z well-suited for use in environments where moisture or corrosive conditions are a concern.
What lumber size is the HHUS210-2Z designed to support?
The HHUS210-2Z is designed as a double 2x10 face-mount joist hanger, accommodating doubled 2x10 dimensional lumber joists. Its width (W) of 3 5/16 in., height (H) of 9 3/16 in., and seat width (B) of 3 in. reflect these dimensional requirements.
