Product Description

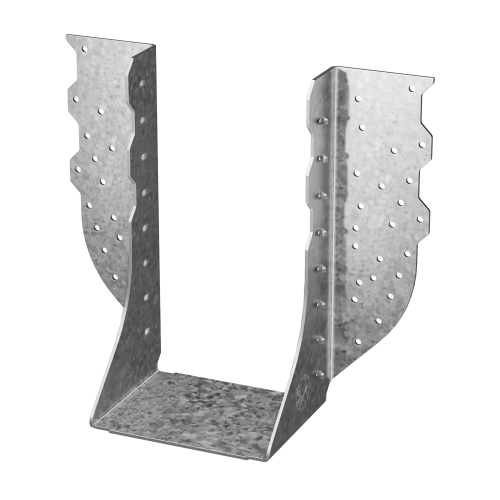

The Simpson HGUS7.37/14 Face-Mount Hanger is a heavy-gauge girder hanger built for structural connections that demand extra-heavy load capacity and reliable performance. Engineered for face-mount installations, this hanger is well suited for girder support connections in heavy timber and engineered lumber framing, making it a dependable choice for both residential and commercial construction projects where a secure joist-to-girder connection is essential.
Key Features
- Extra-Heavy Capacity Design - engineered to handle demanding girder support applications, giving builders confidence in high-load structural connections where standard hangers fall short.
- Double-Shear Nailing Technology - distributes load through two points on each joist nail, increasing structural integrity and reducing stress concentration at the connection point.
- 12-Gauge Steel Construction - heavy-gauge steel provides the rigidity and strength needed for demanding framing applications, ensuring the hanger maintains its form under sustained load.
- Zinc Galvanized G90 Coating - delivers corrosion resistance that helps the hanger hold up in challenging construction environments over the long term.
- Face-Mount Configuration - designed for straightforward face-mount installation, supporting efficient site work and consistent alignment in joist-to-girder connections.
Why This Product
- Built for High-Load Structural Work - the extra-heavy-capacity design and 12-gauge steel construction make this hanger a practical choice for heavy timber and engineered lumber framing where structural performance cannot be compromised.
- Enhanced Connection Strength Through Double-Shear Nailing - by distributing load at two points per joist nail, this face-mount hanger provides superior load distribution compared to single-shear alternatives, adding a meaningful layer of structural reliability.
- Corrosion-Resistant Finish for Long-Term Durability - the G90 zinc galvanized coating helps protect the hanger against corrosion, making it suitable for demanding job site conditions and extending the service life of the connection.
- Trusted Simpson Brand Quality - manufactured by Simpson, a widely recognized name in structural connectors, this hanger reflects the engineering standards and quality control that contractors and builders rely on across residential and commercial projects.
Specifications
- Model No.: HGUS7.37/14
- Gauge (Ga.): 12
- W (in.): 7-3/8
- H (in.): 12-9/16
- B (in.): 4
- Coating / Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Girder support connections in heavy timber and engineered lumber framing
- High-load structural applications where extra-heavy-capacity hangers are required
- Face-mount installations demanding double-shear nailing for superior load distribution
- Residential and commercial construction projects requiring reliable joist-to-girder connections
What's Included
- 1 x Simpson HGUS7.37/14 Face-Mount Girder Hanger
Options
Contact us for Configurable Options and Special orders
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What are the dimensions of the HGUS7.37/14 hanger?
The HGUS7.37/14 has a width (W) of 7-3/8 inches, a height (H) of 12-9/16 inches, and a B dimension of 4 inches, making it suited for heavy timber and engineered lumber girder applications requiring a robust, properly sized connection.
What gauge steel is used in the construction of this hanger?
The HGUS7.37/14 is constructed from 12-gauge steel, which is a heavy-gauge material chosen to ensure structural performance under demanding load conditions.
What type of corrosion protection does the HGUS7.37/14 have?
This hanger features a Zinc Galvanized G90 coating, which provides corrosion resistance for long-term durability in demanding construction environments.
How does double-shear nailing benefit the HGUS7.37/14's performance?
The double-shear nailing technology on the HGUS7.37/14 distributes load through two points on each joist nail, providing enhanced strength and connection reliability compared to single-shear nailing arrangements.
