Product Description

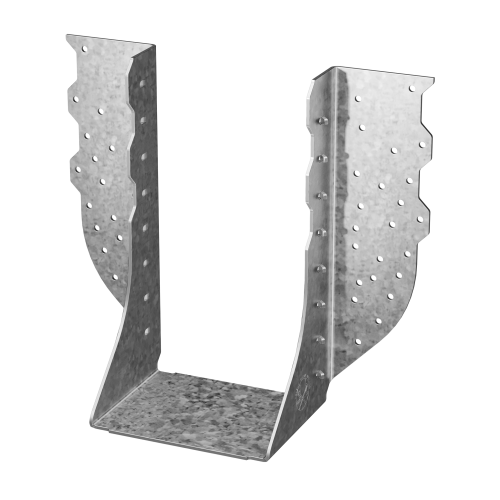

The Simpson HGUS210 Galvanized Face-Mount Joist Hanger for 2x10 is a heavy-gauge connector engineered by Simpson Strong-Tie for applications where higher load values are needed. Designed to provide solid support underneath the joist, rafter, or beam, this face-mount hanger creates a strong, reliable connection using a double-shear nailing system that delivers exceptional capacity without requiring specialty fasteners. Built from 12-gauge steel with a G90 zinc galvanized finish, it is a dependable choice for demanding structural framing applications.
Key Features
- Double-shear nailing design - distributes the load through two points on each joist nail, significantly increasing connection strength so the hanger can handle higher load values where standard hangers may fall short
- Compatible with standard 16d common nails - no specialty fasteners required, which simplifies procurement and speeds up installation on the job site
- Fewer nails needed per connection - reduces material use and labor time without sacrificing structural performance
- 12-gauge steel construction - provides the heavy-duty rigidity needed for demanding framing connections involving 2x10 joists, rafters, or beams
- G90 zinc galvanized finish - offers extra corrosion resistance, making this hanger a practical option for applications where moisture exposure is a concern
- Tabs must not be bent or removed - preserving the tab configuration is essential to maintaining the hanger's rated performance and connection integrity
Why This Product
- Engineered for high-load applications - the HGUS series is specifically designed for situations where greater load capacity is required, making this hanger a step up from standard face-mount options when structural demands are higher
- Faster, simpler installation - the double-shear nailing system allows for fewer nails and the use of common 16d nails throughout, cutting down installation time without adding complexity or specialty hardware costs
- Built-in corrosion protection - the G90 galvanized coating provides extra durability in moisture-prone environments, giving builders and contractors confidence in the long-term performance of the connection
- Made with consistent quality - produced by Simpson Strong-Tie, a well-established name in structural connectors, the HGUS210 is backed by a design that prioritizes both strength and ease of use for 2x10 framing applications
Specifications
- MPN: HGUS210
- Member Size: 2x10
- Gauge: 12
- Height (H): 9-1/8 in.
- Width (W): 1-5/8 in.
- Base Width (B): 5 in.
- Coating/Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or nail holes may differ from picture.
Frequently Asked Questions
What is double-shear nailing and why does it matter?
Double-shear nailing distributes the load through two points on each joist nail, which significantly increases the overall strength of the connection compared to single-shear nailing. This design allows the HGUS210 to handle higher load values while using fewer nails.
What size joist is the HGUS210 designed for?
The HGUS210 is designed for a nominal joist size of 2x10, with an interior hanger height of 9-1/8 in. to accommodate standard dimensional lumber.
What type of nails should be used to install the HGUS210?
The HGUS210 should be installed with 16d common nails. Its design allows for the use of standard nails for all connections, simplifying the installation process.
Is the HGUS210 suitable for outdoor or moisture-exposed applications?
Yes. The HGUS210 is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance, making it suitable for applications where exposure to moisture is a concern.
