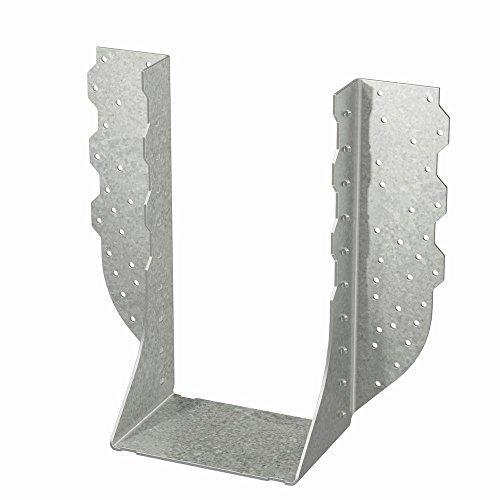

The Simpson HGUS5.62/12 HGUS Galvanized Face-Mount Joist Hanger by Simpson is engineered for structural framing applications where higher load values are required. Designed to deliver strong, reliable support underneath joists, rafters, or beams, this face-mount hanger accommodates nominal 6x12 and 6x14 members as well as 5-1/2 in. x 12 to 18 in. tall glulam, making it a versatile solution for heavy-duty girder and beam connections. Built from 12-gauge steel with a Zinc Galvanized G90 finish, it is built to perform in demanding environments where structural integrity cannot be compromised.

Key Features

• Double-shear nailing technology - distributes the load through two points on each joist nail rather than one, resulting in a stronger, more reliable connection at every joint
• Compatible with standard 16d common nails - eliminates the need for specialty fasteners, reducing material costs and keeping installation straightforward
• Fewer nails required for a complete connection - speeds up installation time on the job site without sacrificing load performance
• Accommodates multiple member sizes - fits nominal 6x12, nominal 6x14, and 5-1/2 in. x 12 to 18 in. tall glulam members, providing flexibility across a range of heavy structural framing applications
• 12-gauge steel construction - delivers the rigidity and structural capacity needed for high-load face-mount connections in demanding framing conditions
• Zinc Galvanized G90 finish - provides extra corrosion resistance, helping the hanger maintain its structural integrity over time in challenging environments
• Tabs must not be bent or removed - preserving the original form of the hanger ensures rated load performance is maintained as designed

Why This Product

• Engineered for high-load applications - the HGUS series is specifically designed for connections where higher load values are needed, making this hanger appropriate for heavy joists, beams, and glulam members that standard hangers are not rated to handle
• Faster installation without trade-offs - double-shear nailing allows for fewer nails while actually increasing connection strength, so builders can work more efficiently on the job site without giving up load capacity
• Broad member compatibility in a single hanger - support for nominal 6x12, nominal 6x14, and 5-1/2 in. x 12 to 18 in. tall glulam members means this one hanger covers multiple framing scenarios, reducing the need to source different products for similar applications
• Corrosion-resistant finish extends service life - the G90 galvanized coating adds a layer of protection against corrosion, making this hanger a dependable long-term choice for structural connections exposed to moisture or other demanding conditions

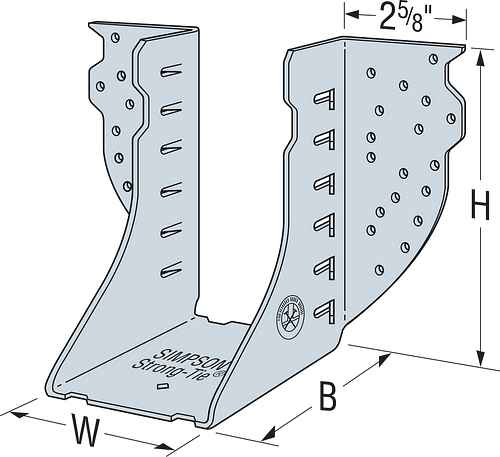

Specifications

• MPN: HGUS5.62/12
• Brand: Simpson Strong-Tie
• Gauge: 12
• Seat Width: 5-5/8 in.
• Hanger Height: 10-7/16 in.
• Member Size: 6x12, 6x14, 5-1/2 in. x 12 to 18 in. tall glulam
• Coating/Finish: Zinc Galvanized, G90
• Install With: 16d common nails

Approved Applications

• Face-mount connections for nominal 6x12 and 6x14 joists or beams
• Face-mount connections for 5-1/2 in. x 12 to 18 in. tall glulam members
• Structural framing applications requiring higher load values and girder support

Options

• Contact us for Configurable Options and Special orders

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
