Product Description

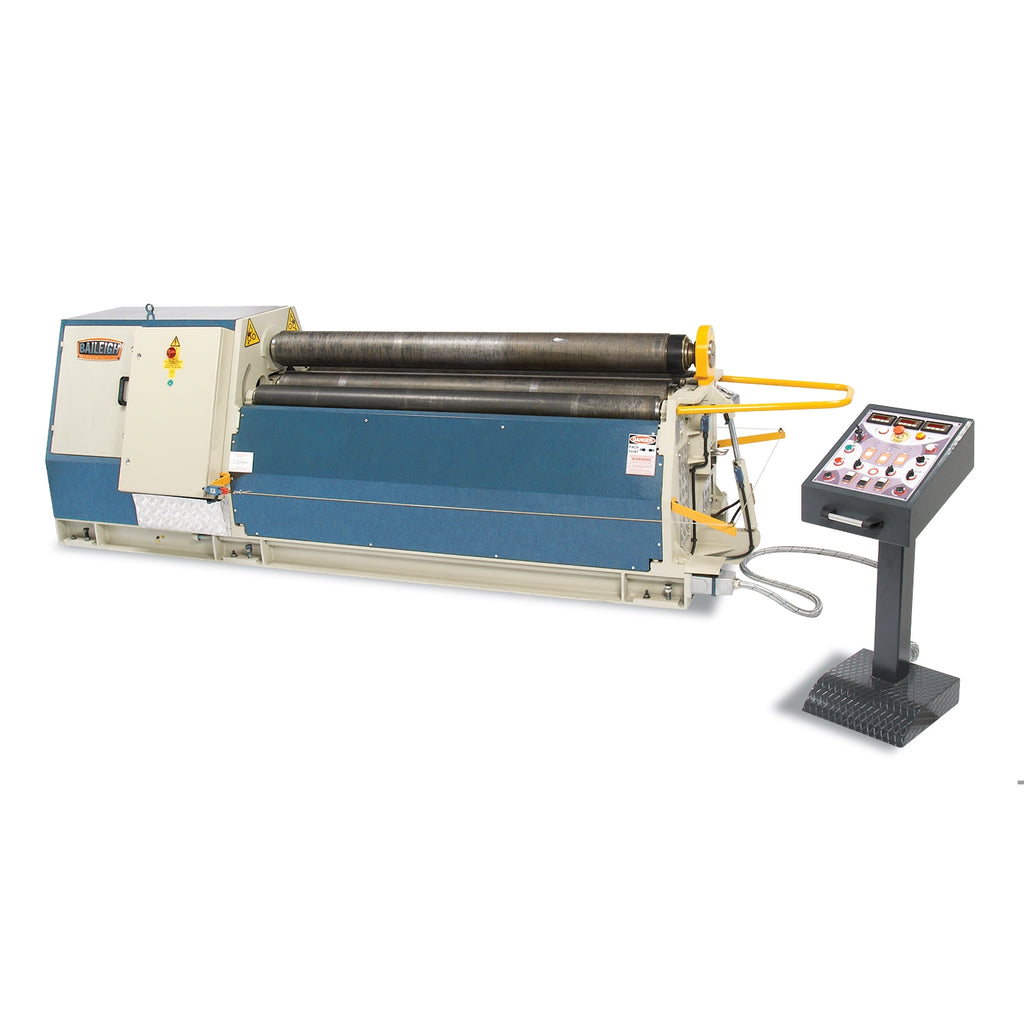

Baileigh Four Roll Plate Roll PR-603-4 by Baileigh is a powerful four-roll hydraulic plate roll designed for shops that demand precision, repeatability, and efficiency in plate bending. Engineered with a robust all-steel frame and hydraulically driven rolls, this machine delivers smooth, accurate forming for a wide range of materials and applications, making it a premier choice for industrial metal fabrication environments.
Key Features
- Four-Roll Design: Unlike three-roll machines, the four powered rolls allow operators to feed the plate in once with no need to pre-bend on separate equipment, saving time and significantly improving productivity.
- Bending Capacity: Capable of bending up to 60" wide, 3/8" thick mild steel with precision and consistency across the full width of the material.
- Hydraulic Roll Adjustment: Provides smooth, controlled roll movement for accurate, repeatable bends without manual repositioning between passes.
- Cone Bending Attachment: Enables production of cones and other specialized shapes, expanding the range of parts this machine can produce.
- Heavy-Duty All-Steel Frame: Ensures rigidity and long-term durability under sustained load, supporting consistent performance in demanding shop environments.

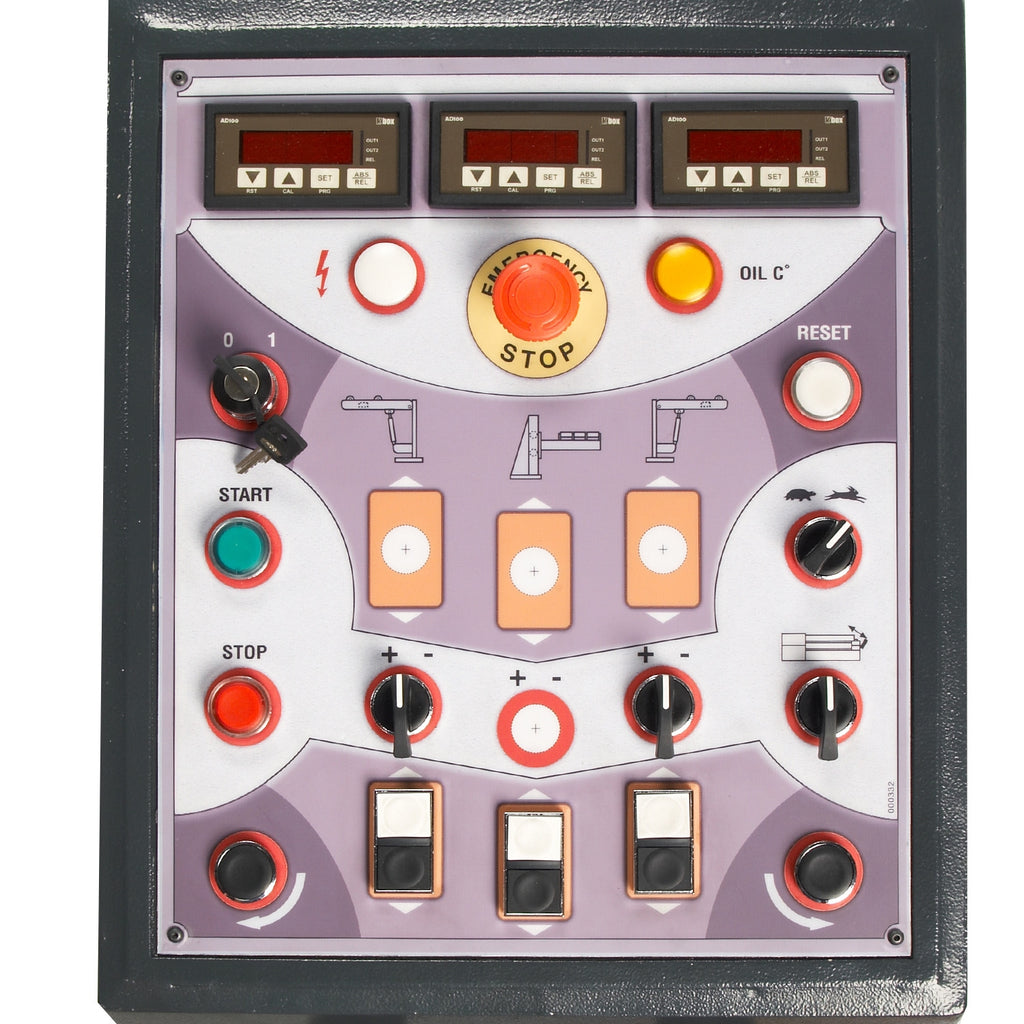

- Intuitive Controls: Simple operator interface allows for efficient machine operation and reliable repeatability from part to part.
- Faster Setup and Better Control: The four-roll configuration reduces material handling steps and gives operators superior control throughout the bending process.
Specifications
- Country of Origin: Turkey
Frequently Asked Questions
- What is the advantage of a four-roll plate roll over a three-roll design?
- A four-roll design like the PR-603-4 allows the operator to feed the plate in a single pass without needing to pre-bend the leading and trailing edges on separate equipment. This reduces material handling, speeds up the workflow, and produces more accurate, consistent bends.
- What is the maximum bending capacity of the PR-603-4?
- The PR-603-4 is designed to bend mild steel plate up to 60" wide and 3/8" thick, making it well suited for a broad range of fabrication applications in industrial and production shop settings.
- Can the PR-603-4 produce cone shapes in addition to cylinders?
- Yes. The PR-603-4 includes a cone bending attachment that enables the machine to produce cones and other specialized curved shapes, expanding its versatility beyond standard cylindrical rolling.
- What type of frame construction does the PR-603-4 use?
- The PR-603-4 features a heavy-duty all-steel frame construction that provides the rigidity and structural integrity needed to maintain precision and durability under continuous load in demanding fabrication environments.
