Product Description

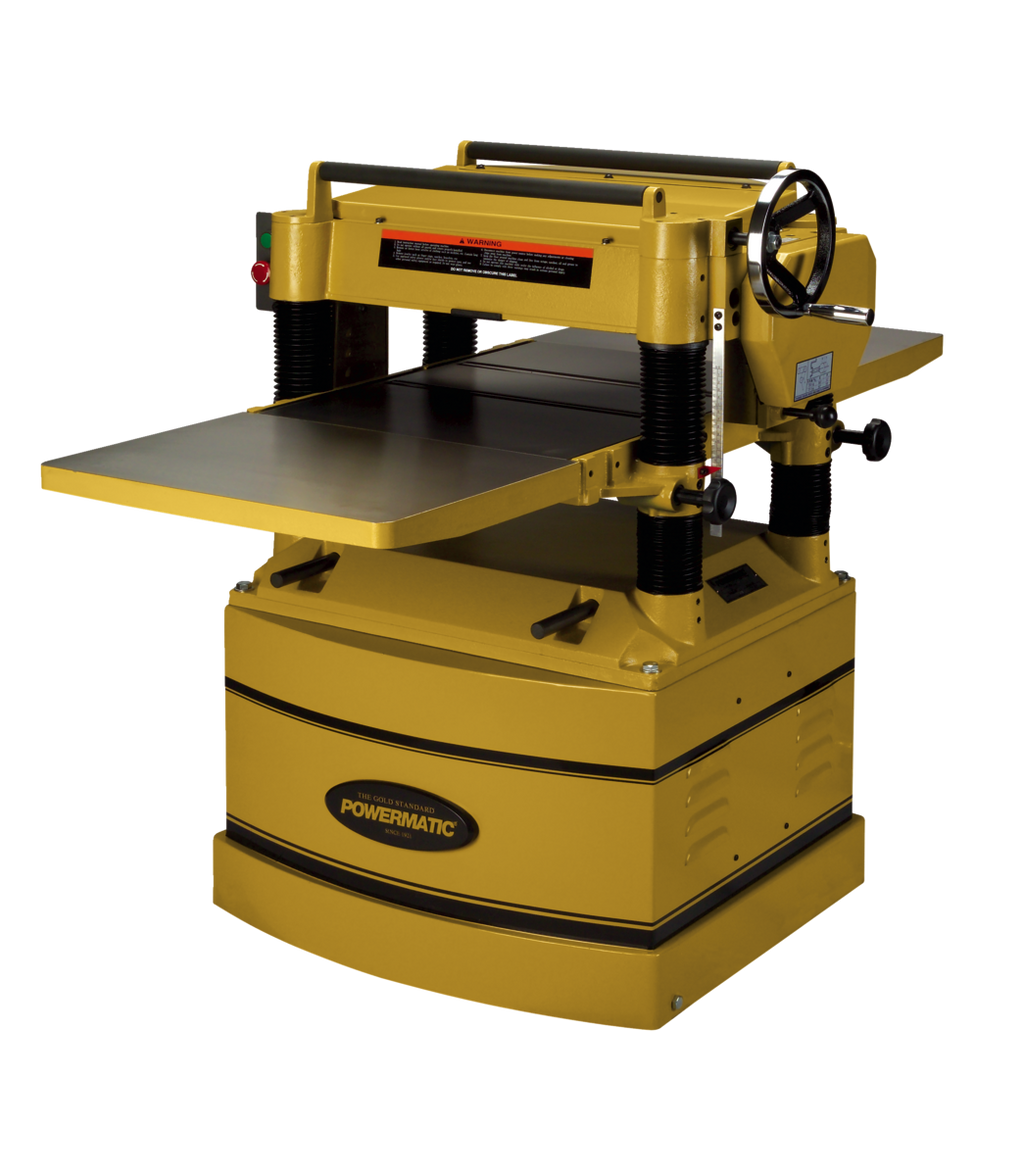

The Powermatic 209HH 20" Helical Head Planer is a professional-grade thickness planer engineered for demanding woodworking environments. Built around a 5HP, 3-Phase motor rated for 230/460V operation, this Powermatic machine combines a robust cast iron construction with a state-of-the-art helical cutterhead to deliver smoother cuts, quieter operation, and a finer surface finish than conventional planer systems.
Key Features
- Helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems

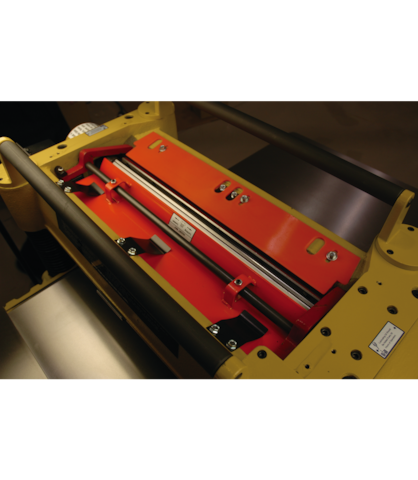

- Cast iron head assembly fully supports feed rollers and cutterhead for maximum rigidity and durability
- Cast iron table with extensions creates a generous 55-1/2" x 20" working area to accommodate large workpieces
- Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation
- Chip breaker and pressure bar assists to reduce snipe for a cleaner, more consistent finish

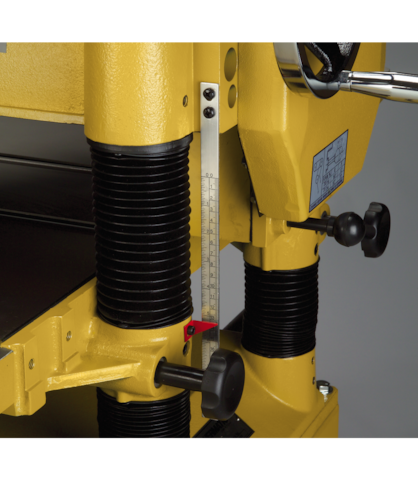

- Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
- Fully enclosed base cabinet with integrated casters for shop mobility
Specifications
- Model: Powermatic 209HH
- MPN: PM9-1791316
- Planing Capacity: 20"
- Motor: 5HP, 3-Phase, 230/460V
- Cutterhead Type: Helical
- Number of Carbide Knife Inserts: 100 four-sided inserts
- Table Working Area: 55-1/2" x 20"
- Maximum Depth of Cut: 1/8"
- Infeed Roller: Serrated steel
- Outfeed Roller: Smooth steel
- Country of Origin: Taiwan
Frequently Asked Questions
- What makes the helical cutterhead on the Powermatic 209HH superior to conventional cutterheads?
- The helical cutterhead features 100 four-sided carbide knife inserts that provide smoother, quieter cutting and a finer finish than conventional systems. Because each insert has four usable cutting edges, they can be rotated to a fresh edge when one side dulls, extending the overall life of the tooling.
- How does the Powermatic 209HH help reduce snipe during planing operations?
- The machine is equipped with a chip breaker and pressure bar that assists to reduce snipe, helping to produce a more consistent surface across the full length of the workpiece.
- Can the Powermatic 209HH be moved around the shop easily?
- Yes. The fully enclosed base cabinet includes integrated casters, allowing the machine to be repositioned throughout the shop without disassembly or additional equipment.
- What is the total working area provided by the planer table?
- The cast iron table with extensions creates a total working area of 55-1/2" x 20", providing ample support for wide and lengthy workpieces during heavy-duty planing tasks.
