Product Description

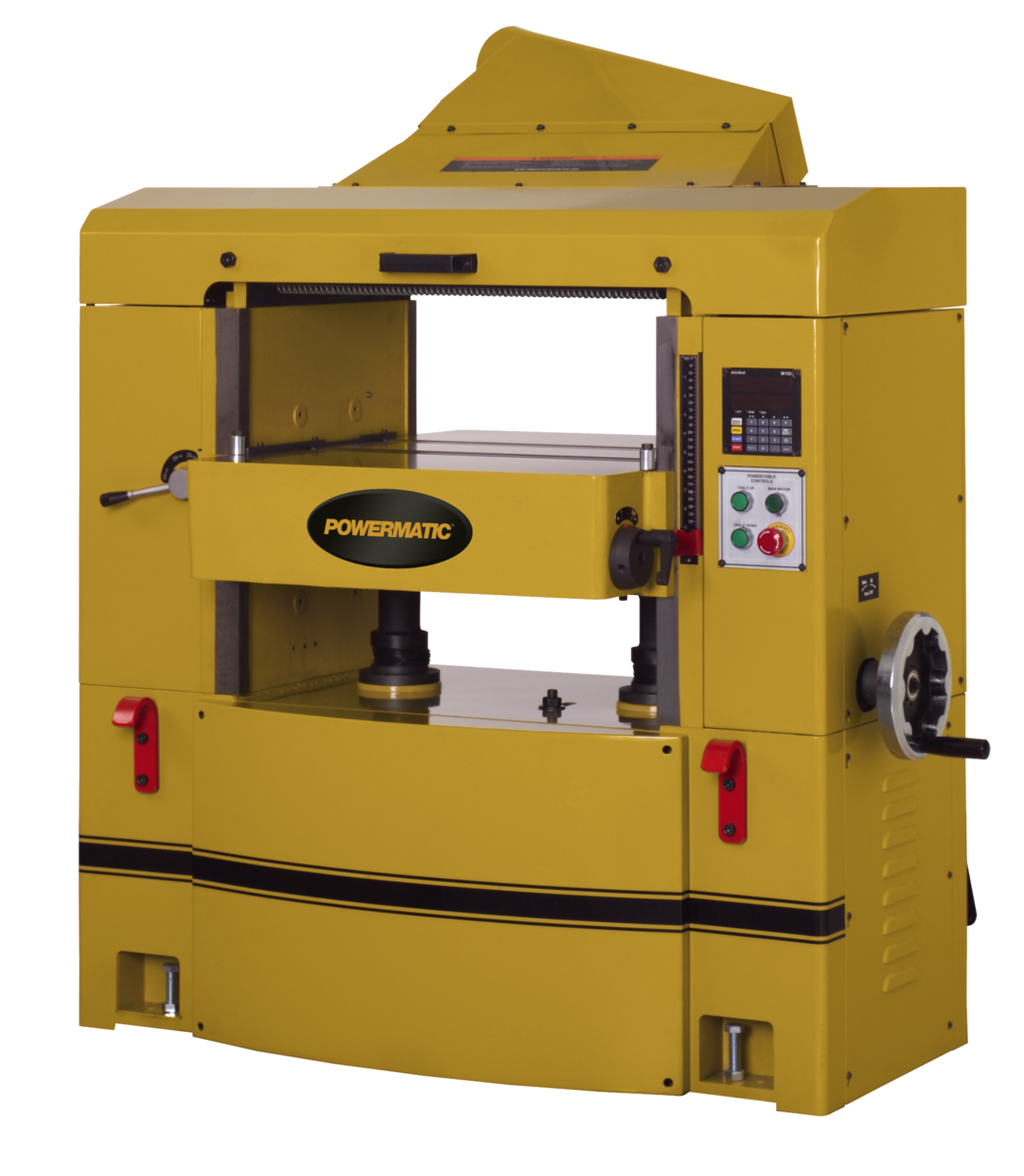

Powermatic WP2510 Planer, 15HP 3Ph 230/460V Helical Head is a heavy-duty industrial planer from Powermatic engineered for demanding woodworking and production environments. Built around a solid steel helical insert cutterhead with 174 four-sided carbide inserts, the WP2510 delivers superior surface quality while minimizing downtime and reducing sound levels - making it a standout choice for professional shops requiring consistent, high-throughput material removal.
Key Features
- 3" diameter infeed and outfeed rollers are supported by four large needle bearings for long life
- Adjustable table

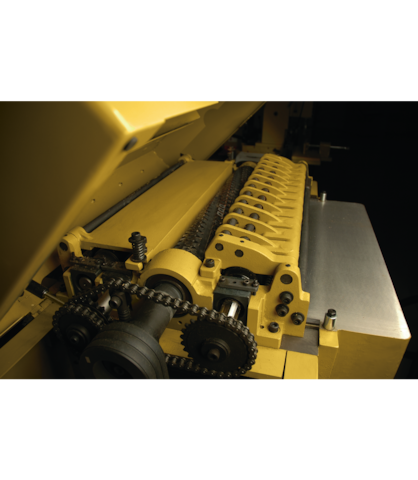

- Massive gear box maintains positive feed by using a large chain drive with automatic tensioners to power infeed and outfeed rollers
- Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
- Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding

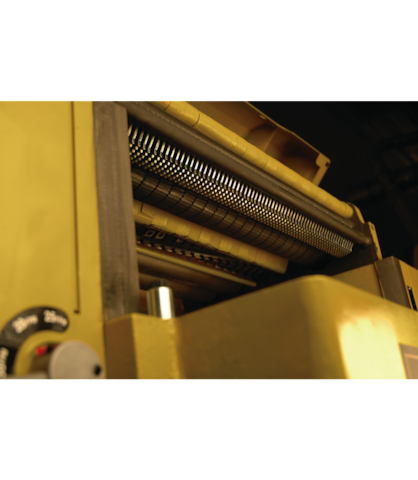

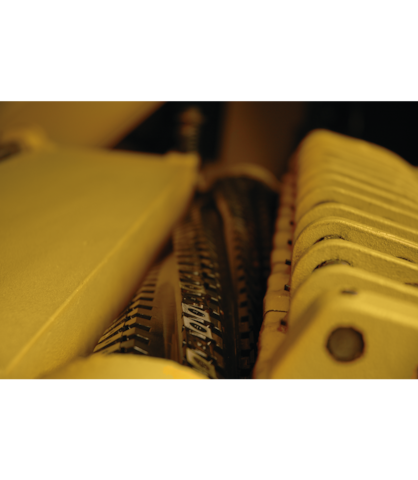

- Solid steel helical insert head with 174 four-sided carbide inserts eliminates need for adjustment after changing knives, reduces sound levels
Specifications
- MPN: PM9-1791303
- Brand: Powermatic
- Model: WP2510
- Motor: 15HP, 3-Phase, 230/460V
- Cutterhead Type: Solid steel helical insert head
- Carbide Inserts: 174 four-sided carbide inserts
- Infeed/Outfeed Roller Diameter: 3"
- Table Roller Adjustment Range: 0" to 0.050"
- Country of Origin: Taiwan
Frequently Asked Questions
- Does the helical insert head require adjustment after changing carbide inserts?
- No. The solid steel helical insert head with 174 four-sided carbide inserts eliminates the need for adjustment after changing knives, saving significant setup time and reducing downtime in production environments.
- How are the infeed and outfeed rollers supported, and why does it matter?
- The 3" diameter infeed and outfeed rollers are supported by four large needle bearings, providing robust support that is engineered for long service life even under continuous heavy use.
- How does the Quick-Set lever work for adjusting table rollers?
- The Quick-Set micro-adjustable lever allows the operator to easily raise and lower the table rollers anywhere from 0" to 0.050" with a single touch, enabling fast and precise adjustments to accommodate uneven stock.
- How does the gear box ensure consistent stock feeding?
- The massive gear box maintains positive feed by using a large chain drive with automatic tensioners to power the infeed and outfeed rollers, ensuring reliable and consistent material movement through the planer.
