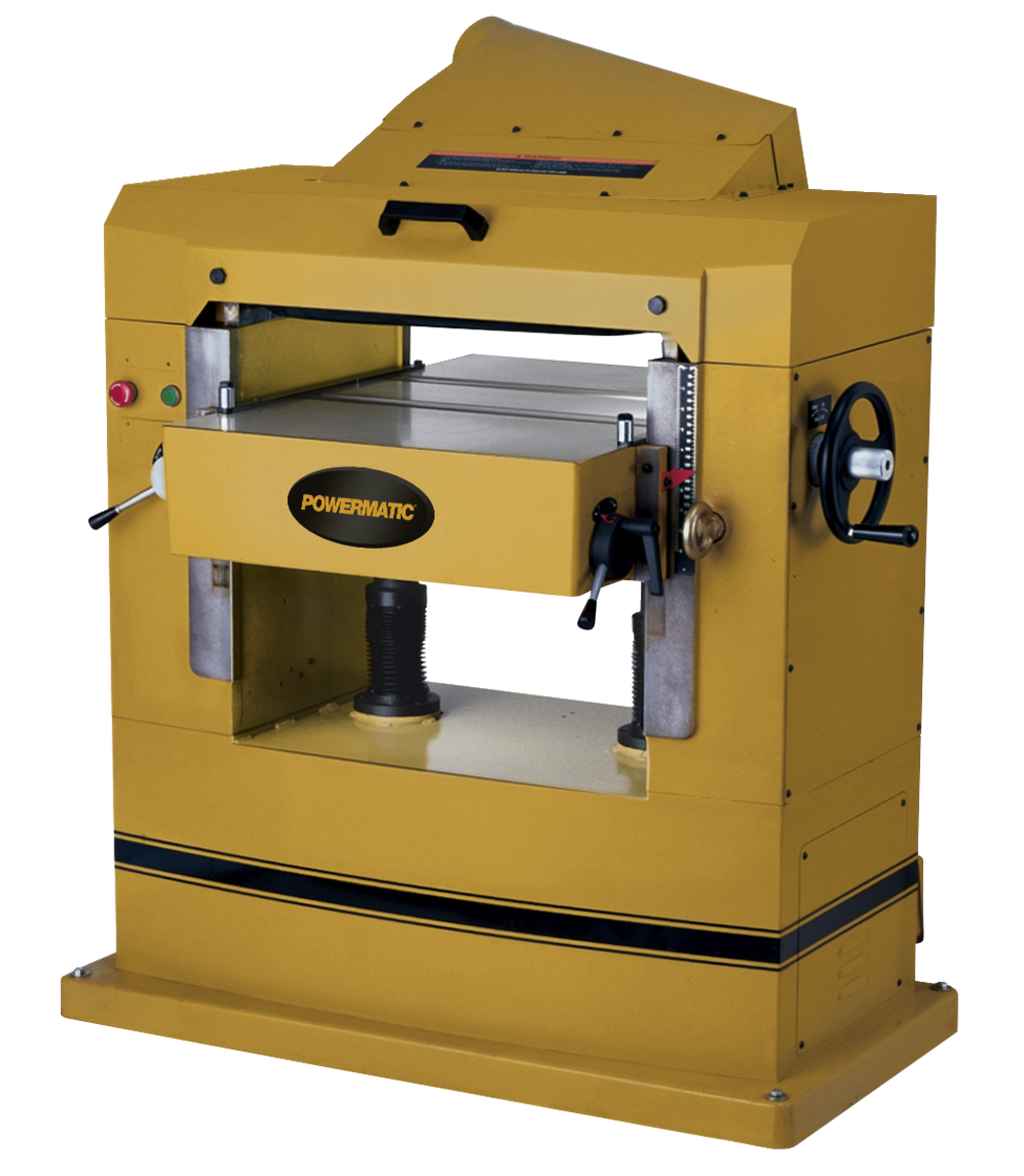

The Powermatic 201HH Planer is a professional-grade, heavy-duty thickness planer engineered for woodworking shops that demand exceptional surface quality, rock-solid rigidity, and long-term durability. Powered by a 7.5HP, 3-Phase, 230V motor and built with an all cast iron construction, this machine delivers the stability and precision required for both rough dimensioning and fine finish planing of hardwoods and softwoods alike. At the heart of the 201HH is a helical cutterhead equipped with 125 four-sided carbide knife inserts, producing a noticeably smoother, quieter cut than conventional straight-knife cutterhead systems.

Key Features

• Helical cutterhead with 125 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• 2 feed speeds - 20 and 30 fpm - accommodates rough and fine finish work, allowing operators to match feed rate to the material and desired surface quality
• All cast iron construction; the heavy cast iron table travels on two large lead screws for precise, repeatable depth adjustments
• Segmented infeed roller with sectional chip breaker for planing multiple height stock simultaneously
• Adjustable bed rollers allow smooth feeding of rough or finished workpieces
• Roller bearing-mounted feed rollers for smooth operation and long service life
• Dust chute with 5" port for straightforward connection to dust collection systems
• Cast iron construction throughout ensures maximum rigidity and vibration damping for consistent planing accuracy

Specifications

• Model: Powermatic 201HH
• MPN: PM9-1791268
• Motor: 7.5HP
• Phase: 3-Phase
• Voltage: 230V
• Cutterhead Type: Helical
• Carbide Knife Inserts: 125 four-sided inserts
• Feed Speeds: 20 / 30 fpm
• Dust Port: 5"
• Table Construction: Cast iron, travels on two large lead screws
• Feed Roller Bearings: Roller bearing-mounted
• Country of Origin: Taiwan

Frequently Asked Questions

What type of cutterhead does the Powermatic 201HH use, and why does it matter?

The 201HH features a helical cutterhead with 125 four-sided carbide knife inserts. This design provides smoother, quieter cutting and a finer finish than conventional straight-knife cutterhead systems. Because each insert has four usable cutting edges, they can be rotated to a fresh edge when one side dulls, extending the overall life of the tooling.

Can the 201HH plane multiple boards of different thicknesses at the same time?

Yes. The segmented infeed roller and sectional chip breaker are specifically designed to allow planing of multiple height stock simultaneously, making it possible to run boards of varying thicknesses in a single pass.

What are the two feed speeds used for?

The two feed speeds - 20 fpm and 30 fpm - are selected based on the type of cut being performed. The slower 20 fpm speed is ideal for fine finish work where maximum surface quality is the priority, while the faster 30 fpm speed is suited to rough stock removal for faster material dimensioning.

What size dust collection port does the 201HH have?

The machine is equipped with a dust chute featuring a 5" port, allowing it to connect directly to most shop dust collection systems for effective chip and dust removal during operation.
