Product Description

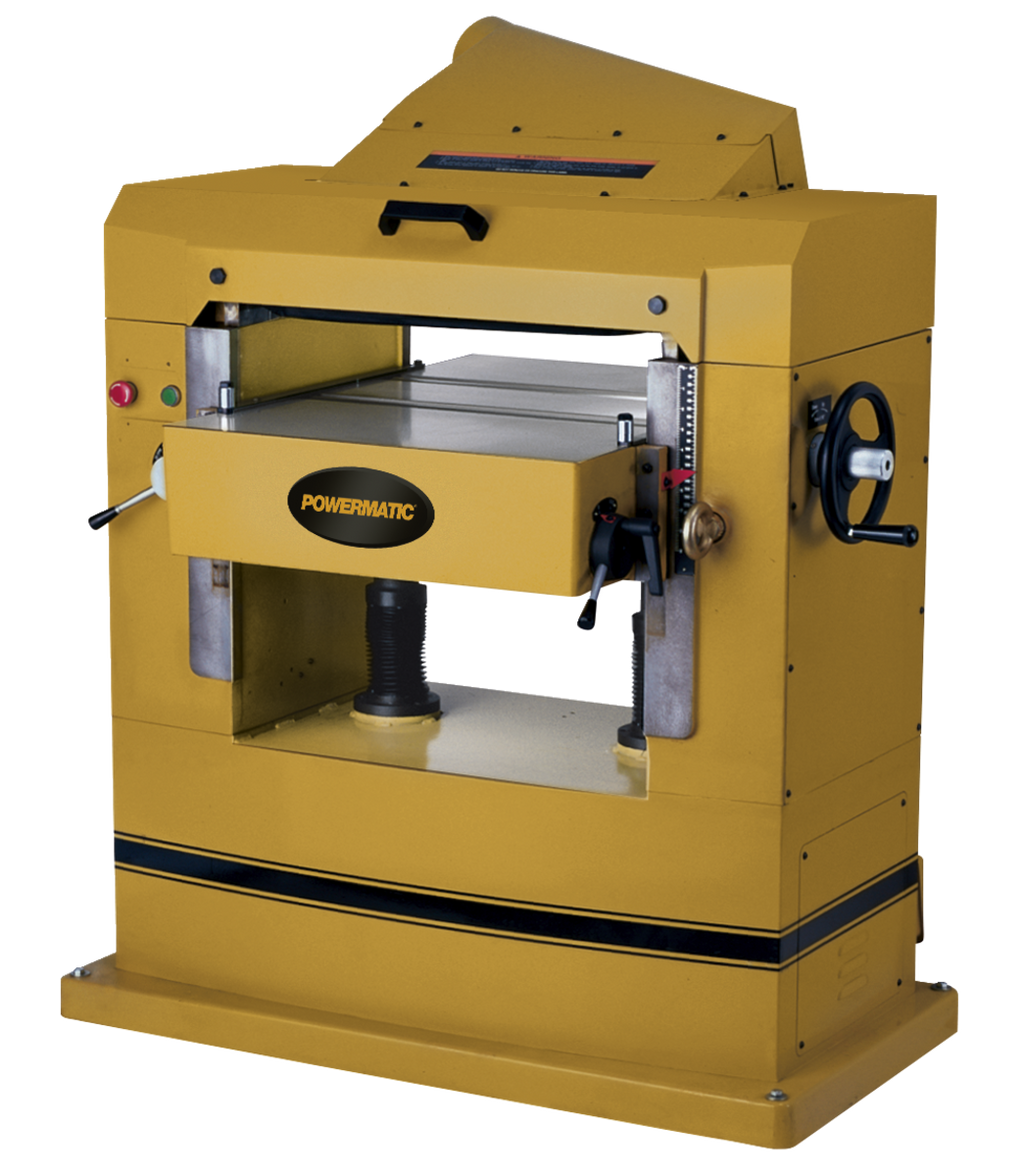

The Powermatic 201 Planer 7.5HP 1Ph 230V is a heavy-duty professional planer from Powermatic, engineered for woodworkers and production shops that demand rock-solid rigidity, precise stock removal, and consistently smooth surface finishes. Built entirely from cast iron, the Model 201 delivers the mass and stability required for accurate, repeatable planing across a wide range of workpiece conditions - from rough-sawn lumber to fine finish work.
Key Features
- 2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
- Adjustable bed rollers allow smooth feeding of rough or finished workpieces

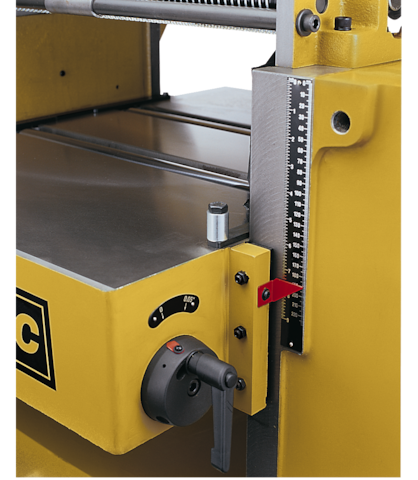

- All cast iron construction; the heavy cast iron table travels on two large lead screws for stable, controlled height adjustment
- Dust chute with 5" port for dust collection, compatible with standard dust collection systems
- Roller bearing-mounted feed rollers for smooth operation and long life

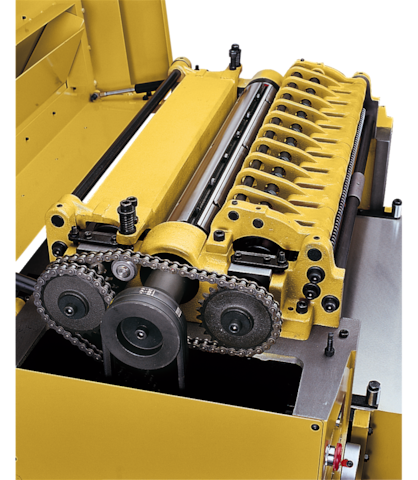

- Segmented infeed roller with sectional chip breaker for planing multiple height stock simultaneously
- Straight knife cutterhead with 4 high speed steel knives gives a clean, smooth cut
Specifications
- MPN: PM9-1791261
- Brand: Powermatic
- Model: 201
- Horsepower: 7.5 HP
- Phase: 1-Phase
- Voltage: 230V
- Feed Speeds: 20 fpm / 30 fpm
- Dust Port: 5"
- Cutterhead Knives: 4 high speed steel knives
- Construction: All cast iron
- Country of Origin: Taiwan
Frequently Asked Questions
- What are the two feed speeds available on the Powermatic 201 Planer, and when should each be used?
- The Powermatic 201 offers two feed speeds - 20 fpm and 30 fpm. The slower 20 fpm speed is ideal for fine finish work where surface quality is the priority, while the faster 30 fpm speed is suited for rough stock removal and initial dimensioning passes.
- Can the Powermatic 201 plane multiple boards of different thicknesses at the same time?
- Yes. The segmented infeed roller with a sectional chip breaker is specifically designed for planing multiple height stock simultaneously, making it possible to run boards of varying thicknesses in a single pass.
- What type of dust collection connection does the Powermatic 201 Planer use?
- The Powermatic 201 features a dust chute with a 5" port for dust collection, allowing straightforward connection to standard 5" dust collection systems for effective chip and dust management during operation.
- What type of knives does the cutterhead use, and how does it affect cut quality?
- The straight knife cutterhead is equipped with 4 high speed steel knives, which deliver a clean, smooth cut on workpieces. The roller bearing-mounted feed rollers complement the cutterhead by ensuring consistent, smooth stock feeding for an even surface finish.
