Product Description

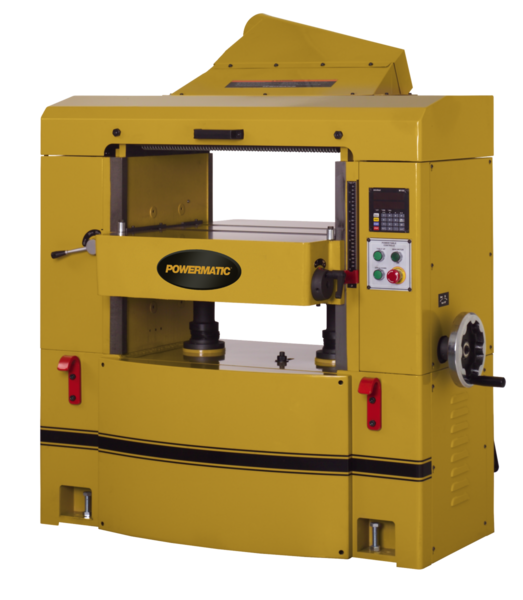

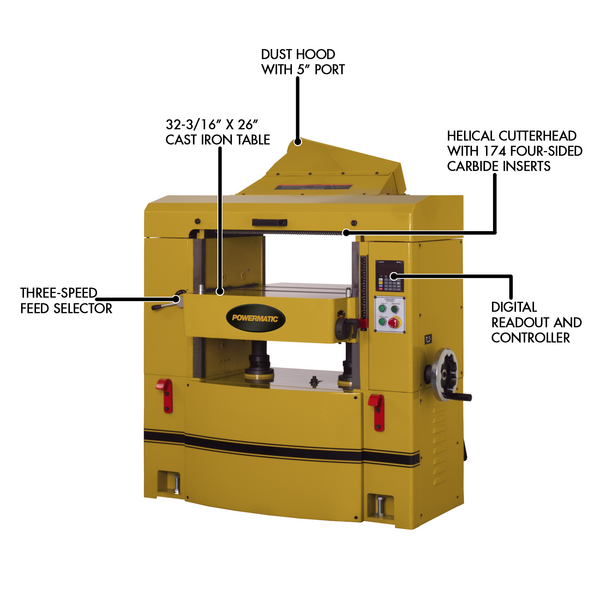

The Powermatic WP2510 Planer with Helical Head by Powermatic is a heavy-duty 15HP, 3-Phase, 460V thickness planer engineered for demanding professional woodworking environments. Equipped with a solid steel helical insert head carrying 174 four-sided carbide inserts, this machine eliminates the need for adjustment after changing knives while delivering reduced sound levels and exceptional surface quality on every pass.
Key Features
- 3" diameter infeed and outfeed rollers are supported by four large needle bearings for long life
- Adjustable table

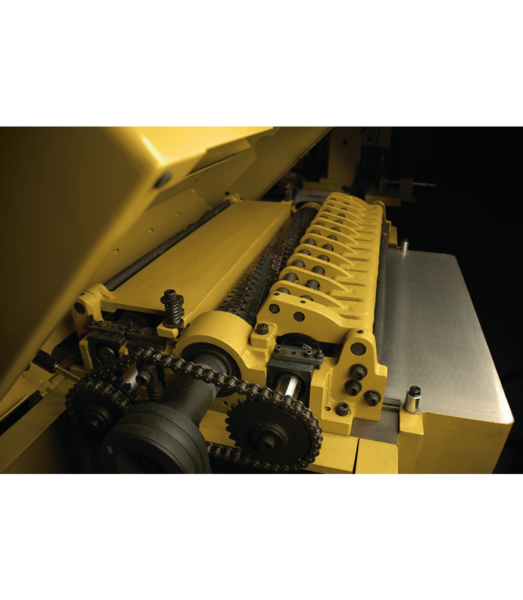

- Massive gear box maintains positive feed by using a large chain drive with automatic tensioners to power infeed and outfeed rollers
- Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
- Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding

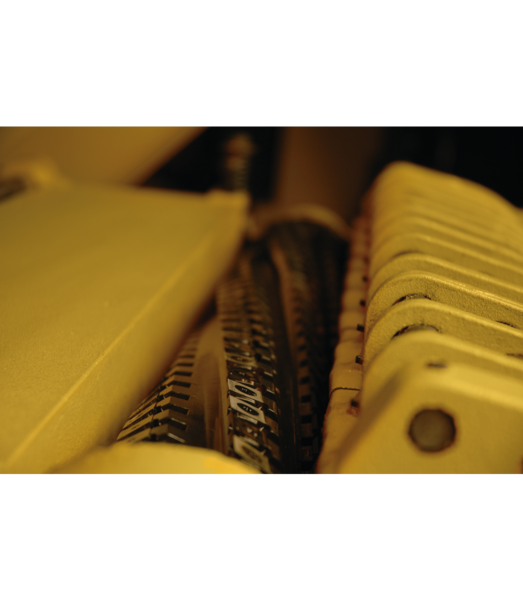

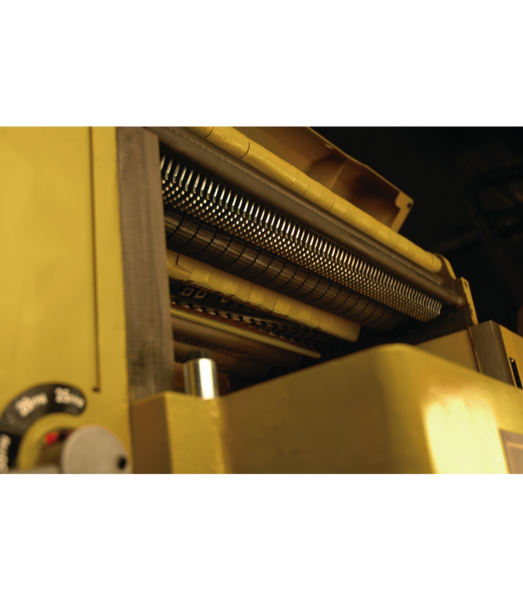

- Solid steel helical insert head with 174 four-sided carbide inserts eliminates need for adjustment after changing knives, reduces sound levels
Specifications
- MPN: PM9-1791303-4
- Brand: Powermatic
- Model: WP2510
- Motor: 15HP
- Phase: 3-Phase
- Voltage: 460V
- Cutterhead Type: Solid Steel Helical Insert Head
- Number of Carbide Inserts: 174 four-sided carbide inserts
- Infeed/Outfeed Roller Diameter: 3"
- Table Roller Adjustment Range: 0" to 0.050"
- Country of Origin: Taiwan
Frequently Asked Questions
- Does the helical insert head require re-adjustment each time carbide inserts are changed?
- No. The solid steel helical insert head with 174 four-sided carbide inserts is specifically designed to eliminate the need for adjustment after changing knives, saving setup time and keeping the machine running efficiently.
- How are the infeed and outfeed rollers supported, and why does it matter?
- The 3" diameter infeed and outfeed rollers are supported by four large needle bearings. This bearing configuration is designed for long service life under heavy use, ensuring consistent and reliable roller performance over time.
- How precise is the table roller adjustment on the WP2510?
- The Quick-Set micro-adjustable lever allows the operator to easily raise and lower table rollers from 0" to 0.050" at a touch, enabling fine-tuned control over how the machine handles uneven or varying stock.
- How does the gear box maintain consistent feed through the machine?
- The massive gear box uses a large chain drive with automatic tensioners to power both the infeed and outfeed rollers, maintaining positive feed throughout the cutting process for reliable, consistent stock advancement.
