Product Description

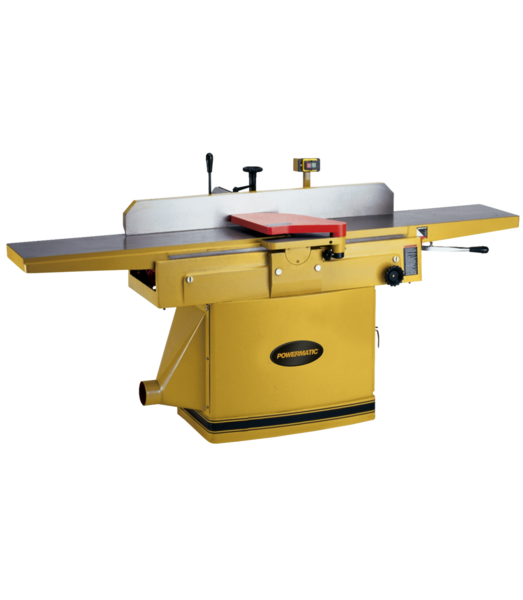

Powermatic 12" Jointer 3HP 460V with Helical Cutterhead (1285HH-4) - MPN: PM9-1791308-4 - delivers big capacity and performance for serious woodworking applications. Built around a large precision ground cast iron table and a helical cutterhead with 42 two-sided carbide inserts, this 3HP, 460V jointer is engineered for heavy-duty work where accuracy, surface quality, and durability are essential. The parallelogram design keeps tables in close proximity to the cutterhead, ensuring a superior finish and allowing fast depth of cut adjustments that remain consistent even after years of demanding use.
Key Features
- Helical cutterhead with 42 two sided carbide inserts for fast knife changes with no adjustments and a quiet clean cut
- Large 12" x 84" precision ground cast iron table surface for heavy-duty work

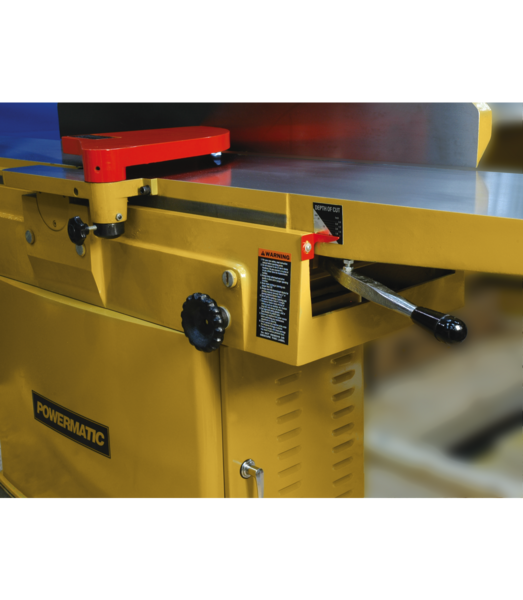

- Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments

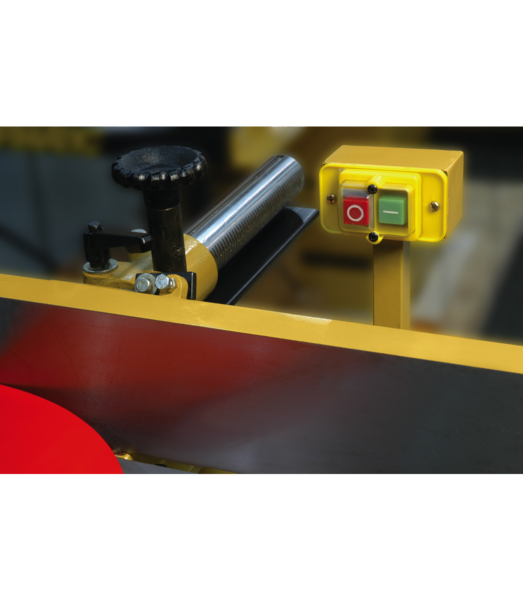

- Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
- Table "lips" on both sides of cutterhead aid in noise reduction
Specifications
- MPN: PM9-1791308-4
- Model: 1285HH-4
- Cutterhead Type: Helical
- Number of Carbide Inserts: 42 two-sided
- Table Surface: 12" x 84" precision ground cast iron
- Motor: 3HP
- Voltage: 460V
- Country of Origin: Taiwan
Frequently Asked Questions
- What type of cutterhead does the Powermatic 1285HH-4 use?
- This jointer features a helical cutterhead equipped with 42 two-sided carbide inserts. This design allows for fast knife changes with no adjustments while delivering a quiet, clean cut.
- What is the recommended maximum cutting depth for non-rabbeting cuts?
- The recommended maximum cutting depth for non-rabbeting cuts is 1/8". For rabbeting cuts, the maximum cutting depth is 1/2", as stated in the machine's manual.
- How does the parallelogram design benefit everyday jointing work?
- The parallelogram design keeps the table in close proximity to the cutterhead, which improves the finish quality and allows for fast depth of cut adjustments. It also ensures the tables remain perfectly parallel even after extended heavy-duty use.
- How does the fence assembly adjust, and what makes it precise?
- The fence assembly is constructed of cast iron and adjusts via a rack and pinion system, which provides smooth fence positioning without play for accurate, repeatable setups.
Note: The recommended max cutting depth for non-rabbeting cuts is 1/8".
