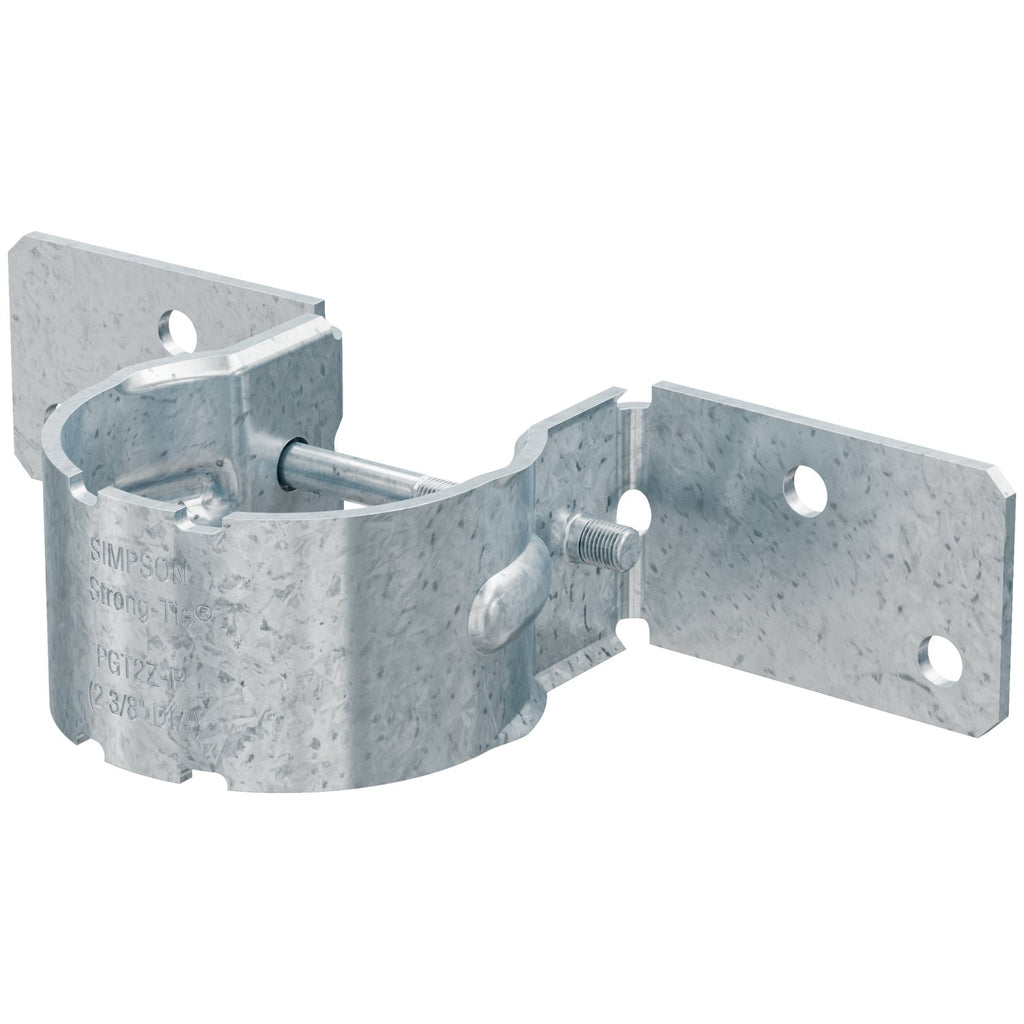

The Simpson Strong-Tie PGT2Z-R PGT2 12-Gauge ZMAX Galvanized Pipe Grip Tie for 2 in. Pipe is engineered by Simpson Strong-Tie to make it easy to attach wood fence rails to metal fence posts. By combining the classic look of a wood fence with the long-term durability of galvanized steel posts, this pipe grip tie helps eliminate the common problem of rotting fence posts - extending the overall life of your fence. Suitable for standard applications as well as corners and splices, the PGT2Z-R is a versatile solution for both new fence construction and the replacement of damaged wooden posts.

Key Features

• Install on 2 in. (2-3/8 in. outside diameter) vertical pipes, offsetting corners to allow for the correct rail alignment
• Use 3 to 4 PGTs per pipe; line up to string line
• Field-bend PGT flanges to fit corner and angled conditions (bend one time only)
• Made from 12-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Suitable for standard applications as well as corners and splices
• Made in the United States

Specifications

• Model Number: PGT2Z-R
• Gauge: 12
• Member Size: 2-3/8 in. outside pipe diameter
• Coating: ZMAX
• Finish: ZMAX
• Width: 6.5 in.
• Height: 1.5 in.
• Country of Origin: United States
• Installs With: PGT2Z attaches to rails with (4) 1/4 in. x 1-1/2 in. Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws (not included)

Approved Applications

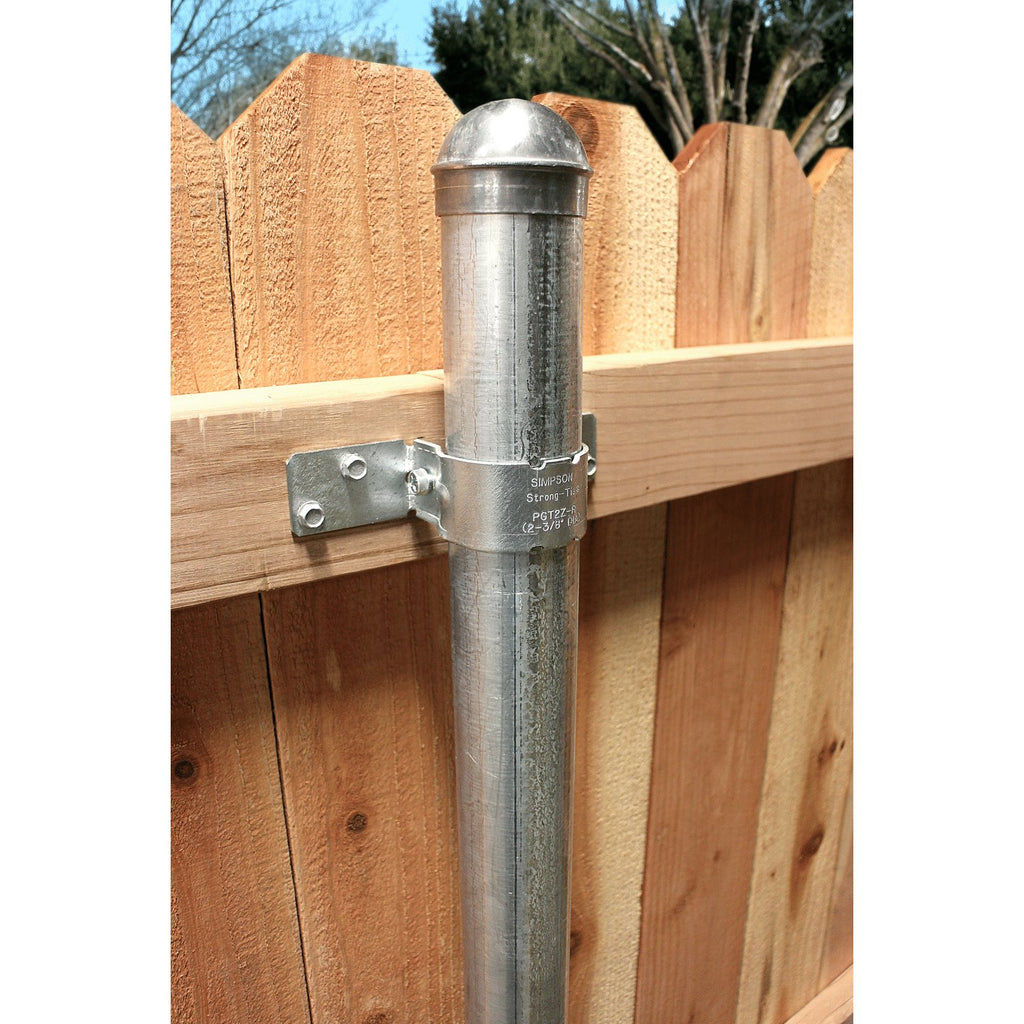

• Attaching wood fence rails to metal fence posts
• New fence construction
• Replacement of damaged wooden fence posts
• Standard fence line applications
• Corner and angled fence configurations
• Splice conditions
• Exterior and treated-wood applications

What's Included

Each pack contains (1) PGT2Z-R Ga. Pipe Grip Tie, (1) bolt supplied.

Frequently Asked Questions

What size pipe is the PGT2Z-R designed to fit?

The PGT2Z-R is designed to install on 2 in. pipes with a 2-3/8 in. outside diameter. It fits vertical pipes and offsets corners to allow for correct rail alignment.

How many PGT2Z-R ties should I use per pipe?

It is recommended to use 3 to 4 PGTs per pipe, lining them up to a string line to ensure proper alignment during installation.

Can the PGT2Z-R be used for corner and angled fence conditions?

Yes. The PGT flanges can be field-bent to fit corner and angled conditions. Note that the flanges should be bent one time only to maintain structural integrity.

What hardware is needed to attach the PGT2Z-R to wood fence rails?

PGT2Z attaches to rails with (4) 1/4 in. x 1-1/2 in. Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws, which are not included. One bolt for securing to the pipe is supplied with the tie.
