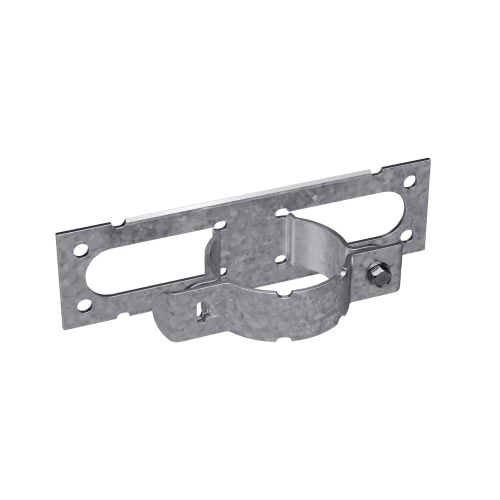

The Simpson Pipe Grip Tie is a two-piece fence bracket engineered to connect wood fence rails to galvanized metal fence posts cleanly, securely, and with far less effort than traditional fastening methods. Whether you are building a new fence with steel posts and wood rail infill or upgrading an existing installation by swapping out rotting wood posts for galvanized steel, this connector delivers a solid, long-lasting rail-to-post connection. The design accommodates standard line fence runs as well as corner and splice applications, making it a practical choice for a wide range of residential and commercial fence projects.

Key Features

• Two-piece bracket design - creates a solid, secure connection between wood fence stringers and metal fence posts, eliminating the looseness or play common with single-piece alternatives
• Fits 2 in. pipe with a 2-3/8 in. outside diameter - installs directly onto standard vertical galvanized fence posts with corners offset to allow for correct rail alignment at line, corner, and splice positions
• Unique locking tab on the front strap - requires only one screw to fasten the strap, reducing the number of fastening steps and speeding up the overall installation process
• No protruding carriage bolts or sharp corners - produces a cleaner, safer finished fence surface that reduces snag and injury risk for installers and end users alike
• Faster to install than comparable two-piece fence-post brackets - cuts labor time on larger fence runs, which matters especially when installing 3 to 4 brackets per post across a full project
• Made from 12-gauge steel - provides the structural rigidity needed for a firm, long-term connection between wood rails and steel fence posts
• G90 zinc galvanized finish - delivers enhanced corrosion resistance that helps the brackets hold up in outdoor and moisture-prone environments over the long term
• Sold as a complete carton with all bracket hardware included - includes 50 attachment plates, 50 front straps, and 55 hex-head bolts so the full bracket count is ready to install right out of the box

Why This Product

• Wood look with steel-post durability - by pairing wood fence rails with galvanized steel posts instead of wood posts, this system helps prevent the rotting and deterioration that shortens the lifespan of traditional all-wood fence installations, extending the life of the overall structure
• Safer and cleaner installation than conventional brackets - the elimination of protruding carriage bolts and sharp corners is a deliberate design choice that makes handling and installation safer and leaves a neater finished appearance
• Versatile across multiple fence configurations - a single bracket design handles standard panel runs, corner posts, and splice connections, so you do not need different hardware for different sections of the same fence project
• Engineered and backed by Simpson Strong-Tie - produced by a manufacturer with a long-standing reputation in structural connectors and construction hardware, supporting confidence in performance for both professional contractors and serious DIY builders

Specifications

• Manufacturer Part Number (MPN): PGT2E-R50
• Model: PGT2E
• Quantity Included: 50-Pack (50 attachment plates, 50 front straps, 55 hex-head bolts)
• Compatible Pipe Size: 2 in. pipe (2-3/8 in. outside diameter)
• Gauge: 12-Gauge Steel
• Width: 7.25 in.
• Height: 2 in.
• Coating / Finish: Zinc Galvanized, G90
• Material: Steel
• Installation Fasteners: (4) 1/4 in. x 1-1/2 in. Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws or 1/4 in. lag screws (follow code requirements for predrilling)
• Country of Origin: United States

Approved Applications

• Attaching wood fence rails (stringers) to galvanized metal fence posts
• New fence construction using metal posts with wood rail infill
• Replacement of damaged or rotting wood fence posts with galvanized steel posts
• Standard line fence panel installations
• Corner fence post connections
• Splice connections along fence runs
• Any application requiring installation on vertical pipes with a 2-3/8 in. outside diameter

What's Included

This listing is sold as a full carton containing:

• (50) Attachment plates (PGT2E)
• (50) Front straps
• (55) 1/4 in. diameter x 3/4 in. long hex-head bolts

Note:

Frequently Asked Questions

What pipe size is the PGT2E designed to fit?

The PGT2E is designed to install on 2 in. vertical pipes with a 2-3/8 in. outside diameter. The corners are offset to allow for correct rail alignment at standard line installations as well as corners and splices.

What hardware is included in this 50-pack, and what additional fasteners are needed?

Each full carton includes 50 attachment plates, 50 front straps, and 55 hex-head bolts (1/4 in. diameter x 3/4 in. long). To attach the ties to the wood rails, you will also need four 1/4 in. x 1-1/2 in. Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws or 1/4 in. lag screws per tie (follow code requirements for predrilling).

How many Pipe Grip Ties should be used per post?

Simpson recommends using 3 to 4 PGTs per pipe and lining them up to a string line to ensure proper alignment of the fence rails.

What material and corrosion protection does the PGT2E have?

The PGT2E is made from 12-gauge steel and features a G90 zinc galvanized coating for extra corrosion resistance, making it well suited for outdoor fence applications where long-term durability is important.
