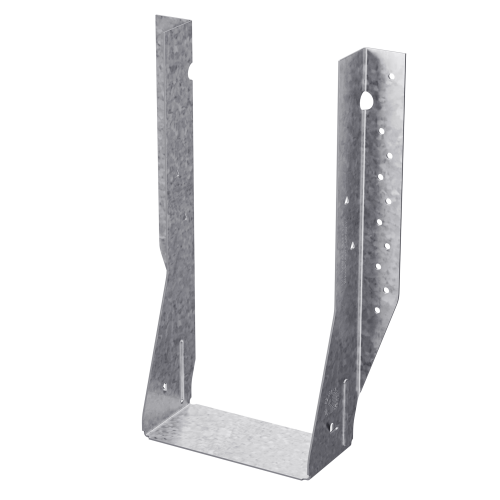

The Simpson MIU4.12/16 Face-Mount I-Joist Hanger is an engineered connector purpose-built for commercial, high-load, and double I-joist applications without requiring web stiffeners. Sized for a 4-inch x 16-inch joist, this heavy-duty hanger features Positive-Angle Nailing (PAN) technology that minimizes flange splitting while allowing faster, ergonomically improved nailing. Speed prongs temporarily position and secure the connector during installation, significantly reducing setup time on the job site. Manufactured in the United States and finished with a zinc galvanized G90 coating, the MIU4.12/16 delivers reliable structural performance in demanding construction environments.

Key Features

• No Web Stiffeners Required: Designed for commercial, high-load, and double I-joist applications without the need for web stiffeners, streamlining installation.
• Positive-Angle Nailing (PAN): Allows nailing from a more favorable angle, minimizing splitting of the I-joist flanges while saving time on the job.
• Speed Prongs: Temporarily positions and secures the hanger to the header, enabling easier, faster single-handed installation.
• Optional Triangle Joist Nail Holes: Provides additional uplift capacity when needed for enhanced structural performance.
• Zinc Galvanized G90 Coating: Offers corrosion resistance suitable for a wide range of construction environments.
• Domestic Manufacturing: Made in the United States to consistent quality standards.
• Face-Mount Design: Installs directly to the face of the header for straightforward, secure attachment.

Specifications

• Model Number: MIU4.12/16
• Joist Size: 4 in. x 16 in.
• Gauge: 16
• Width: 4-1/8 in.
• Height: 15-9/16 in.
• Seat Depth: 2-1/2 in.
• Coating / Material: Zinc Galvanized, G90
• Mount Type: Face-Mount
• Country of Origin: United States

Approved Applications

• Commercial construction framing requiring high-load joist connections
• Double I-joist applications
• High-load single I-joist installations
• Applications requiring additional uplift resistance using optional triangle joist nail holes
• Face-mount header-to-joist connections where web stiffener-free installation is preferred

Installation Notes

• Use all specified fasteners as required. Verify that the header can accept the required fasteners specified in the load table.
• Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required when using these holes.
• MIU - add four additional 10d x 1-1/2 in. joist nails for a total uplift load of 975 lbs.

Frequently Asked Questions

What joist size is the MIU4.12/16 designed to fit?

The MIU4.12/16 is sized for a 4-inch x 16-inch I-joist, making it suitable for heavy-duty and commercial framing applications where larger joist dimensions are required.

Does this hanger require web stiffeners during installation?

No, the MIU4.12/16 is specifically designed so that web stiffeners are not required. It is engineered for commercial, high-load, and double I-joist applications without the need for this additional step, streamlining the overall installation process.

What features help speed up installation of this hanger?

The MIU4.12/16 includes speed prongs that temporarily position and secure the hanger to the header, enabling easier single-handed installation. Additionally, Positive-Angle Nailing (PAN) technology allows nailing from a more favorable angle, reducing flange splitting and improving ergonomics to help save time on the job site.

What corrosion protection does the MIU4.12/16 have, and where is it manufactured?

The MIU4.12/16 is finished with a zinc galvanized G90 coating, which provides corrosion resistance suitable for a wide range of construction environments. Its Country of Origin is the United States.
