Product Description

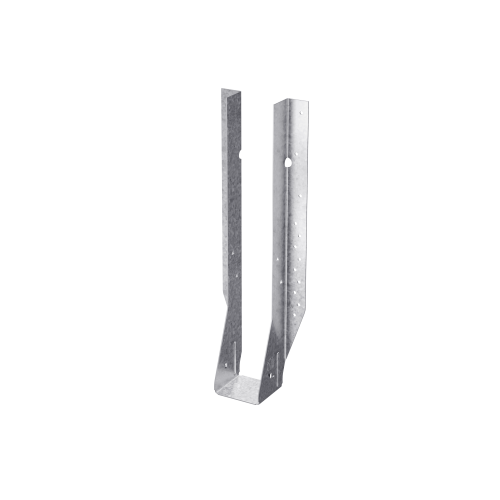

The Simpson MIU2.56/20 Galvanized Face-Mount I-Joist Hanger is built for commercial and high-load I-joist connections where performance and reliability cannot be compromised. Engineered by Simpson to support 2-1/2 in. x 20 in. engineered wood members, this face-mount hanger delivers a strong, load-bearing connection underneath the joist without requiring web stiffeners - streamlining installation on demanding structural projects. Constructed from 16-gauge steel with a G90 zinc galvanized coating, the MIU2.56/20 is a purpose-built solution for contractors and builders working with large-format engineered lumber in commercial framing applications.
Key Features
- Positive-angle nailing (PAN) - minimizes splitting of the I-joist flanges during fastening while allowing nailing from a more efficient angle, saving time on the job without sacrificing connection integrity
- No web stiffeners required - simplifies the installation process for commercial and high-load I-joist applications, reducing material and labor overhead on the jobsite
- 16-gauge steel construction - provides the structural strength needed to handle the demands of commercial-grade and high-load engineered wood framing connections
- G90 zinc galvanized coating - delivers enhanced corrosion resistance, helping the hanger hold up in environments where moisture exposure is a concern
- Cannot be modified - ensures the hanger is always installed as engineered, protecting the integrity of the rated structural connection and keeping installations code-consistent
Why This Product
- Purpose-built for high-load I-joist work - the MIU series is specifically designed for commercial and high-load I-joist applications, making this hanger a dependable fit where standard hangers may fall short
- Faster installation without added steps - positive-angle nailing and the elimination of web stiffener requirements combine to speed up the fastening process, keeping commercial framing projects on schedule
- Corrosion-resistant finish for long-term performance - the G90 zinc galvanized coating provides an added layer of protection beyond basic galvanizing, supporting the durability of the connection over the life of the structure
- Consistent, unmodified structural performance - because this hanger is installed exactly as designed with no field modifications, builders get predictable, rated load performance every time it is used in an engineered wood connection
Specifications
- Manufacturer: Simpson Strong-Tie
- MPN / Model: MIU2.56/20
- Series: MIU
- Member Size: 2-1/2 in. x 20 in.
- Width: 2-9/16 in.
- Height: 19-7/16 in.
- Seat Depth: 2-1/2 in.
- Gauge: 16
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Hanger Type: Face-Mount
- Install With: 0.162 in. x 3-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the header (sold separately)
- Country of Origin: United States
Approved Applications
- Commercial and high-load I-joist connections
- Engineered wood member connections requiring a 2-1/2 in.
Frequently Asked Questions
- What size engineered wood member is the MIU2.56/20 designed to fit?
- This hanger is designed for an actual joist size of 2-1/2 in. x 20 in. engineered wood members, making it suitable for commercial and high-load I-joist applications.
- Does this hanger require web stiffeners during installation?
- No. The MIU2.56/20 is specifically engineered for commercial and high-load I-joist applications without requiring web stiffeners, simplifying the installation process.
- What nails should be used to install the MIU2.56/20?
- Install this hanger with 0.162 in. x 3-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the header for proper rated performance.
- Can the MIU2.56/20 be modified or skewed to fit a different application?
- No. This hanger cannot be modified and must be installed as designed in order to achieve its full rated structural performance. It is made from 16-gauge steel with a G90 zinc galvanized coating for corrosion resistance.
