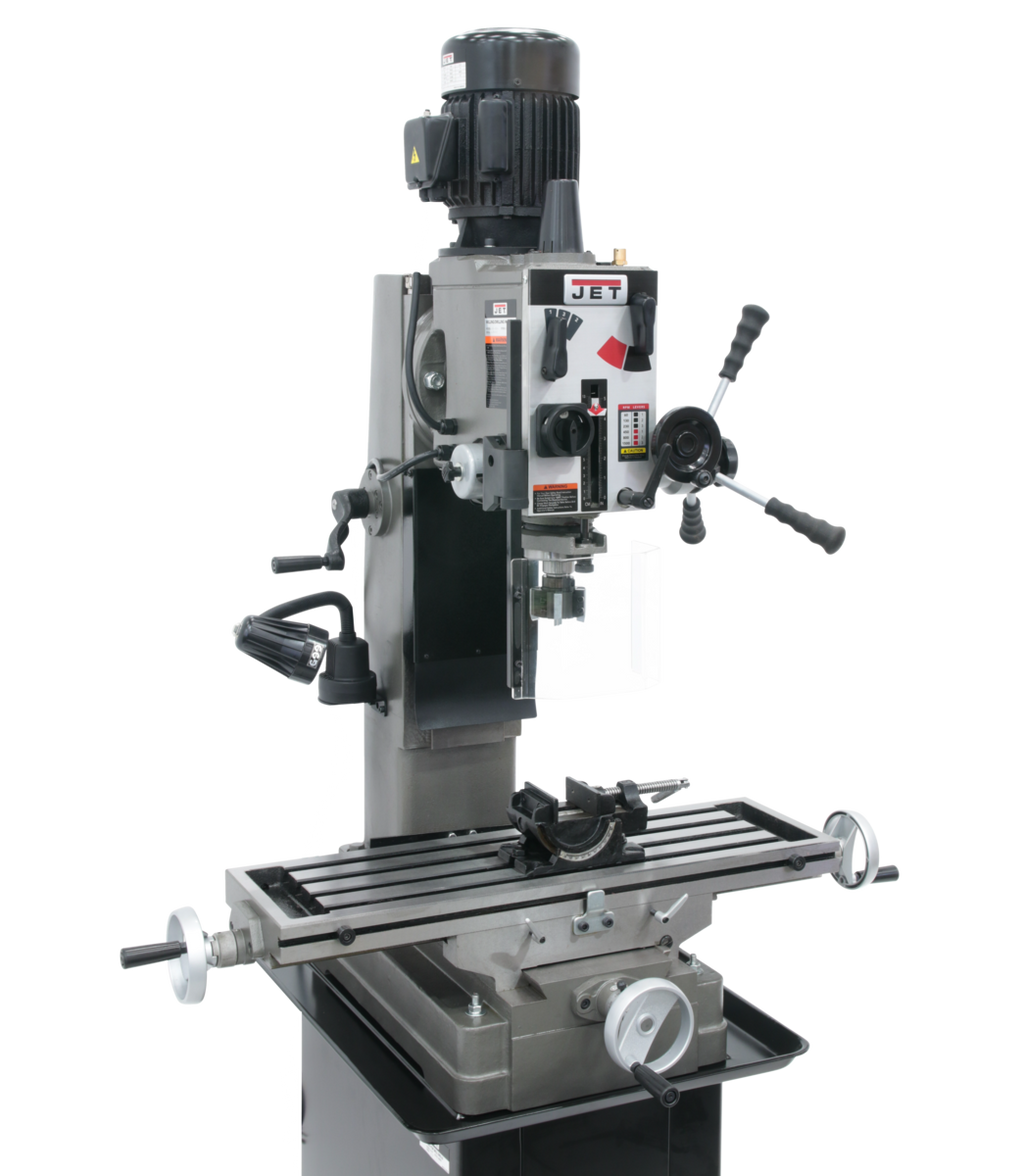

The JET JMD-45GH Geared Head Square Column Mill/Drill with Newall DP500 2-Axis DRO is a heavy-duty milling and drilling machine engineered by JET to deliver the rigidity and precision required for a wide variety of demanding drilling and milling applications in high-intensity environments. Featuring a 6-speed geared head, R8 spindle, and square column with dovetail ways, this machine is built to provide full power to cutting tools with rapid, repeatable speed changes and exceptional accuracy.
Key Features
- Calibrated fine down feed built in for precise depth control
- CSA/CUS Certified for safety and compliance
- Easy to read internal depth gauge for convenient monitoring during operation
- Full power to the cutting tools delivered through a 6-speed geared head
- Heavy-duty design allows for a variety of precision drilling applications in demanding environments
- Milling table allows for movement, enabling versatile workpiece positioning
- R8 spindle allows use of all mill tooling for maximum tooling compatibility
- Rapid spindle speed changes through quick-select gear shift levers
- Square column with dovetail ways ensures rigidity and accurate travel
- Includes Newall DP500 2-Axis DRO for enhanced measurement precision
- Mill Drill Stand, p/n 350045, shown in some images, is optional
Specifications
- MPN: JT9-351158
- Stock Number: 351158
- Motor: 1-1/2 HP, 115/230V, 1Ph
- Number of Spindle Speeds: 6
- Range of Spindle Speeds (RPM): R8
- Spindle Taper: R8
- Spindle Travel Auto (In.): 5
- Face Mill Capacity (In.): 4
- Max Distance Spindle to Table (In.): 18-1/8
- Table Size (L x W) (In.): 9-1/2 x 32-1/4
- T-Slots Number and Size (In.): 19-11/16
- Base Dimensions (In.): 26-11/16 x 15-15/16
- Overall Dimensions (L x W x H) (In.): 29 x 36 x 50
- Weight (Lbs.): 794
- DRO: Newall DP500 2-Axis
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
- Warranty: JET Red Assurance 2-Year Warranty
Frequently Asked Questions
- What type of spindle does the JMD-45GH use, and what tooling is compatible?
- The JMD-45GH features an R8 spindle, which allows use of all mill tooling. This is a widely used taper standard, making it easy to find compatible end mills, collets, drill chucks, and other milling and drilling accessories.
- How many spindle speeds are available, and how are they changed?
- The machine offers 6 spindle speeds through its geared head. Speed changes are made quickly and easily using quick-select gear shift levers, minimizing downtime between operations and delivering full power to the cutting tools at each speed setting.
- Does the JMD-45GH include a digital readout (DRO)?
- Yes. This model comes equipped with the Newall DP500 2-Axis DRO, providing precise positional readouts to enhance accuracy during milling and drilling operations. It also includes a calibrated fine down feed built in and an easy to read internal depth gauge for additional measurement convenience.
- Is the Mill Drill Stand included with the machine?
- No. The Mill Drill Stand, p/n 350045, shown in some images, is optional and is not included with the purchase of the JMD-45GH. It must be purchased separately if desired.
