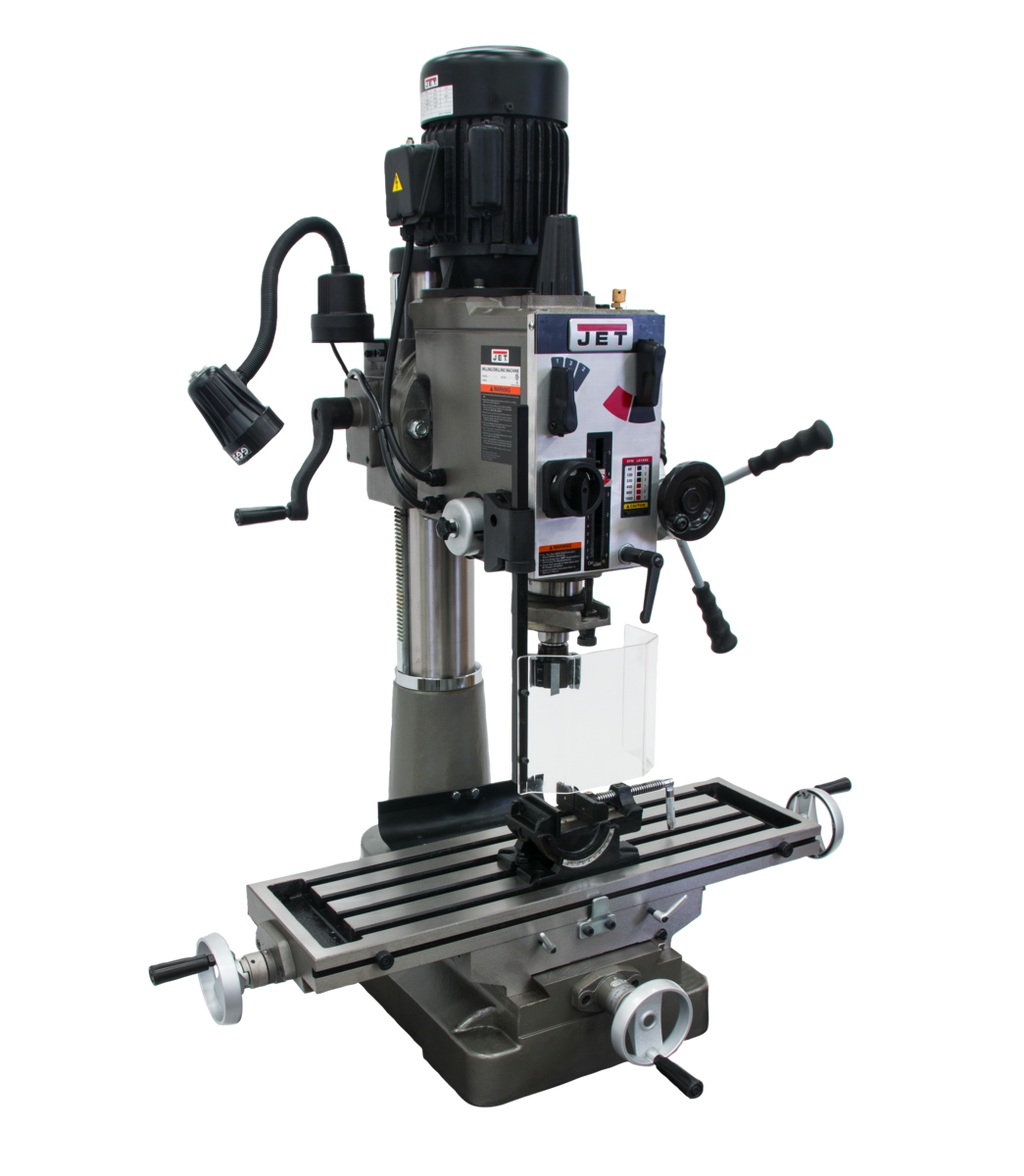

JET JMD-40GHPF Geared Head Mill/Drill with Power Downfeed & Newall DP500 2-Axis DRO is a heavy-duty, CSA/CUS Certified precision milling and drilling machine from JET, engineered for operators who demand full power delivery, rapid speed changes, and automatic downfeed capability in a single versatile platform. The combination of a 6-speed geared head, standard power downfeed, and integrated Newall DP500 2-Axis DRO makes this mill/drill an exceptional choice for toolrooms, job shops, and serious machinists requiring repeatable accuracy across a wide range of precision drilling and milling applications.

Key Features

• Calibrated fine down feed built in for repeatable depth control
• CSA/CUS Certified for safe operation in North American environments
• Easy to read internal depth gauge for quick, accurate depth monitoring
• Full power to the cutting tools through 6 speed geared head, delivering consistent torque across all speed ranges
• Heavy-duty design allows for a variety of precision drilling applications
• Milling table allows for movement, enabling versatile workpiece positioning
• Power Downfeed standard, automating the spindle advance for consistent, hands-free material removal
• R8 spindle allows use of all mill tooling, maximizing tooling compatibility and flexibility
• Rapid spindle speed changes through quick-select gear shift levers for efficient workflow
• Mill Drill Stand, p/n 350045, shown in some images, is optional

Specifications

• MPN: JT9-351146
• Stock Number: 351146
• Country of Origin: Taiwan
• Motor: 1-1/2HP, 115/230V, 1Ph
• Number of Spindle Speeds: 6
• Range of Spindle Speeds (RPM): 65-1550
• Spindle Taper: R8
• Spindle Travel (In.): 5
• Spindle Travel Auto (In.): 4-1/2
• Quill Diameter (In.): 3
• Swing (In.): 21
• Face Mill Capacity (In.): 4
• Max Distance Spindle to Table (In.): 15-3/4
• Table Size (L x W) (In.): 8-1/4 x 28-3/4
• Table Longitudinal Travel (In.): 20-1/2
• Column Diameter (In.): 4-1/2
• Base Dimensions (In.): 24-1/4 x 15-15/16
• Overall Dimensions (L x W x H) (In.): 29 x 36 x 50
• Weight (Lbs.): 721
• Prop 65: Cancer and Reproductive Harm
• Warranty: JET Red Assurance 2-Year Warranty

Frequently Asked Questions

What spindle taper does the JMD-40GHPF use, and what tooling does it accept?

The JMD-40GHPF is equipped with an R8 spindle, which allows use of all mill tooling. The R8 taper is one of the most widely available standards in the industry, giving operators broad compatibility with end mills, collets, drill chucks, boring heads, and other common mill accessories.

What is the spindle speed range on this machine?

The JMD-40GHPF delivers a spindle speed range of 65-1550 RPM across 6 speeds. Speed changes are made quickly and efficiently through quick-select gear shift levers, minimizing downtime between operations.

Does this mill/drill include power downfeed as a standard feature?

Yes. Power Downfeed is standard on the JMD-40GHPF, providing automated spindle advance for consistent and controlled material removal. The auto spindle travel extends to 4-1/2 inches, and a calibrated fine down feed is built in for precise depth management. An easy to read internal depth gauge further supports accurate depth monitoring.

Is the Mill Drill Stand included with the JMD-40GHPF?

No. The Mill Drill Stand, p/n 350045, shown in some images, is optional and not included with the machine. It must be purchased separately if a dedicated stand is desired for your installation.
