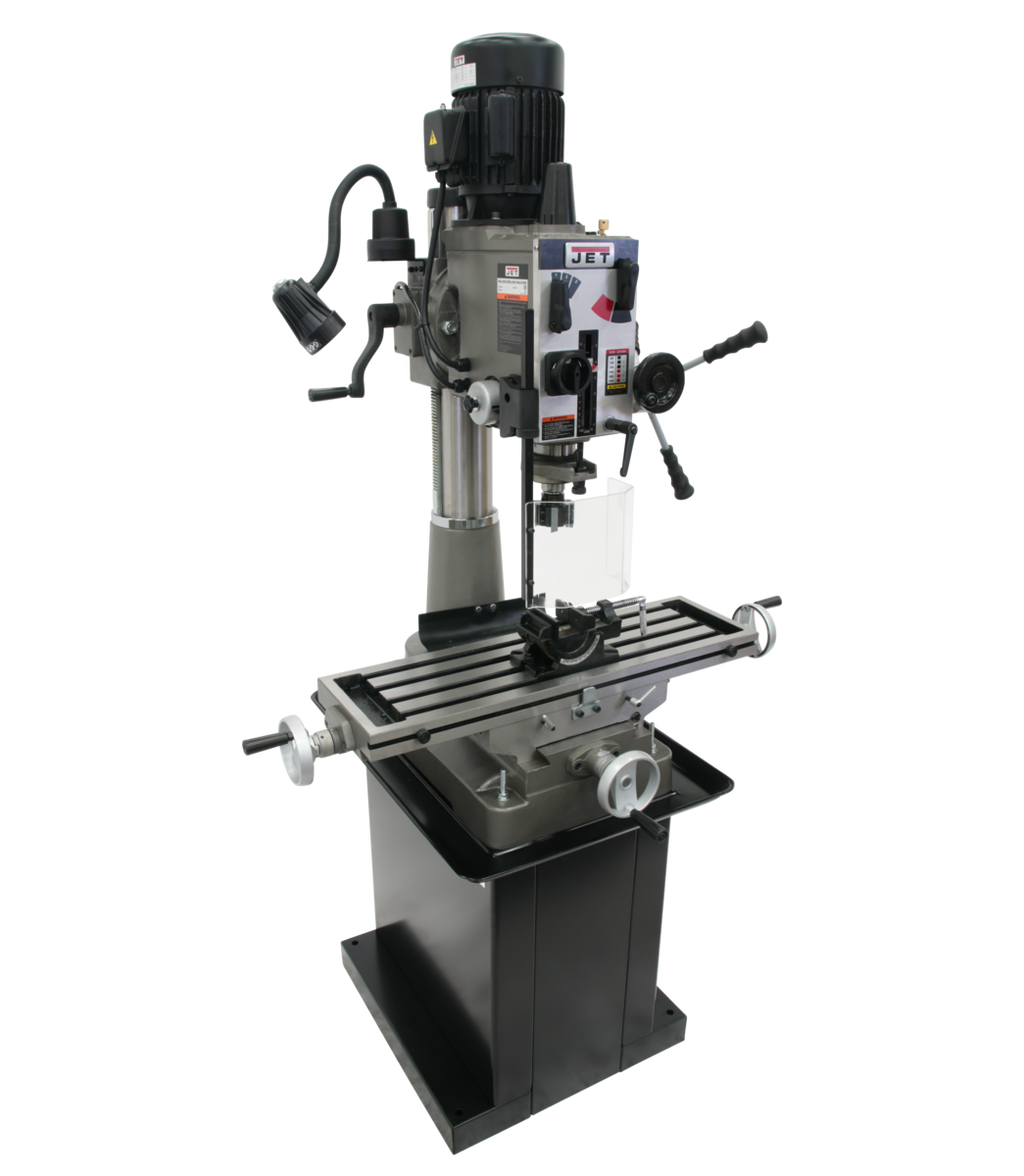

JET JMD-40GH Geared Head Mill/Drill with Newall DP500 2-Axis DRO & X-Powerfeed by JET delivers a heavy-duty, precision-focused milling and drilling experience for serious metalworking applications. The 6-speed geared head ensures full power reaches the cutting tools at every speed setting, while the integrated Newall DP500 2-Axis DRO and X-Powerfeed combination elevates repeatability and efficiency on every pass. CSA/CUS Certified and built for demanding shop environments, this mill/drill is the go-to choice for machinists who require accuracy and versatility from a single machine.

Key Features

• Calibrated fine down feed built in for precise depth control on every operation
• CSA/CUS Certified for verified safety compliance
• Easy to read internal depth gauge keeps measurements visible at a glance
• Full power to the cutting tools delivered through a 6-speed geared head for consistent performance across all speed ranges
• Heavy-duty design allows for a variety of precision drilling applications in demanding shop conditions
• Milling table allows for movement, expanding the range of workpiece positioning options
• R8 spindle allows use of all mill tooling, maximizing tooling compatibility and versatility

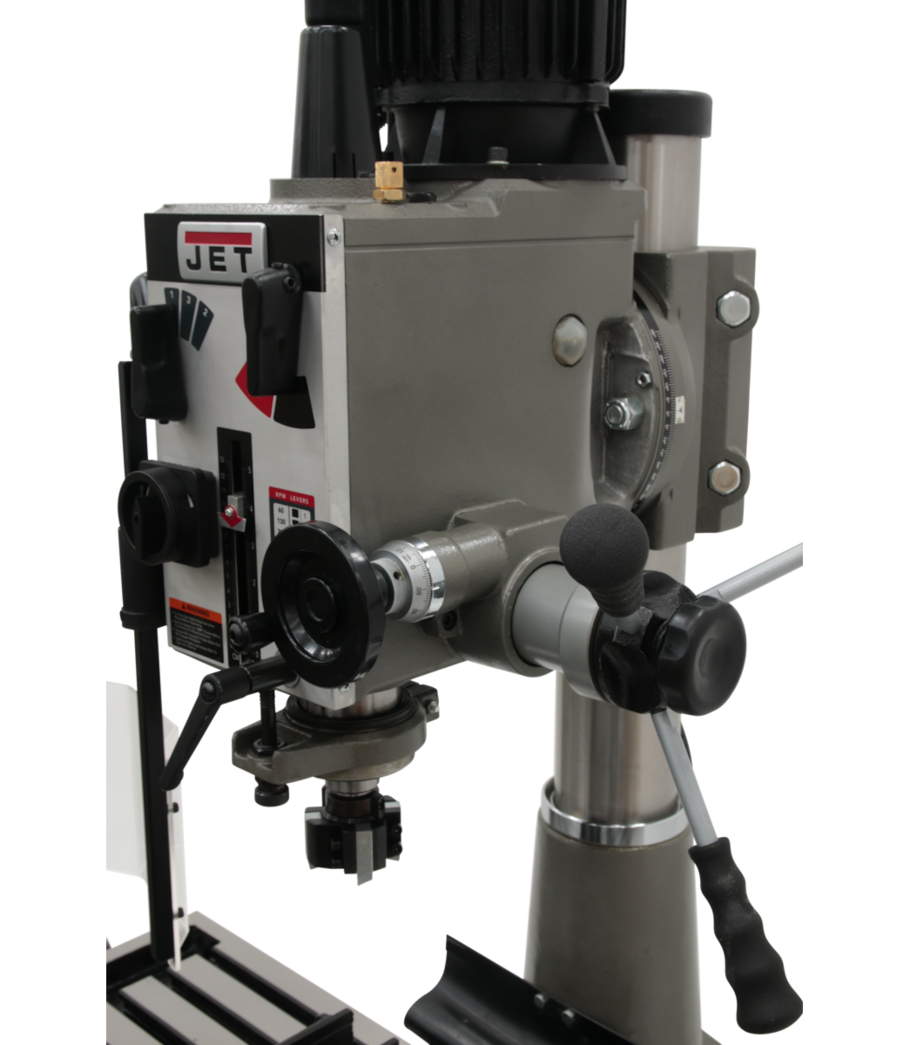

• Rapid spindle speed changes through quick-select gear shift levers minimize downtime between operations
• Includes Newall DP500 2-Axis DRO for accurate, real-time positional readout
• X-Powerfeed automates longitudinal table travel for consistent, hands-free feed control
• Mill Drill Stand (p/n 350045, shown in some images) is optional and sold separately

Specifications

• Stock Number: 351145
• Country of Origin: Taiwan
• Motor: 1-1/2HP, 115/230V, 1Ph
• Number of Spindle Speeds: 6
• Range of Spindle Speeds (RPM): 65, 130, 220, 480, 925, 1550rpm
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3
• Table Longitudinal Travel (In.): 20-1/2
• Swing (In.): 21
• Face Mill Capacity (In.): 4
• Max Distance Spindle to Table (In.): 15-3/4
• Column Diameter (In.): 4-1/2
• Base Dimensions (In.): 24-1/4 x 15-15/16
• Overall Dimensions (L x W x H) (In.): 29 x 36 x 50
• Weight (Lbs.): 694
• Powerfeed: X-Powerfeed
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

How many spindle speeds does the JMD-40GH offer, and what is the speed range?

The JMD-40GH features 6 spindle speeds available at 65, 130, 220, 480, 925, and 1550rpm. Speed changes are made quickly and easily through quick-select gear shift levers, minimizing interruptions during work.

What spindle taper does this mill/drill use, and does it support standard mill tooling?

The JMD-40GH uses an R-8 spindle taper, which allows use of all mill tooling. This makes the machine highly compatible with a wide range of standard milling and drilling accessories available in the market.

Is the Mill Drill Stand shown in the product images included with the machine?

No. The Mill Drill Stand (p/n 350045) shown in some images is optional and is not included with the JMD-40GH. It must be purchased separately if desired.

Does this machine include a digital readout (DRO) and a powerfeed, or are those separate purchases?

Yes, the JMD-40GH comes bundled with the Newall DP500 2-Axis DRO for real-time positional measurement and an X-Powerfeed for automated longitudinal table travel - both are included as part of this model configuration.
