Product Features
Product Description

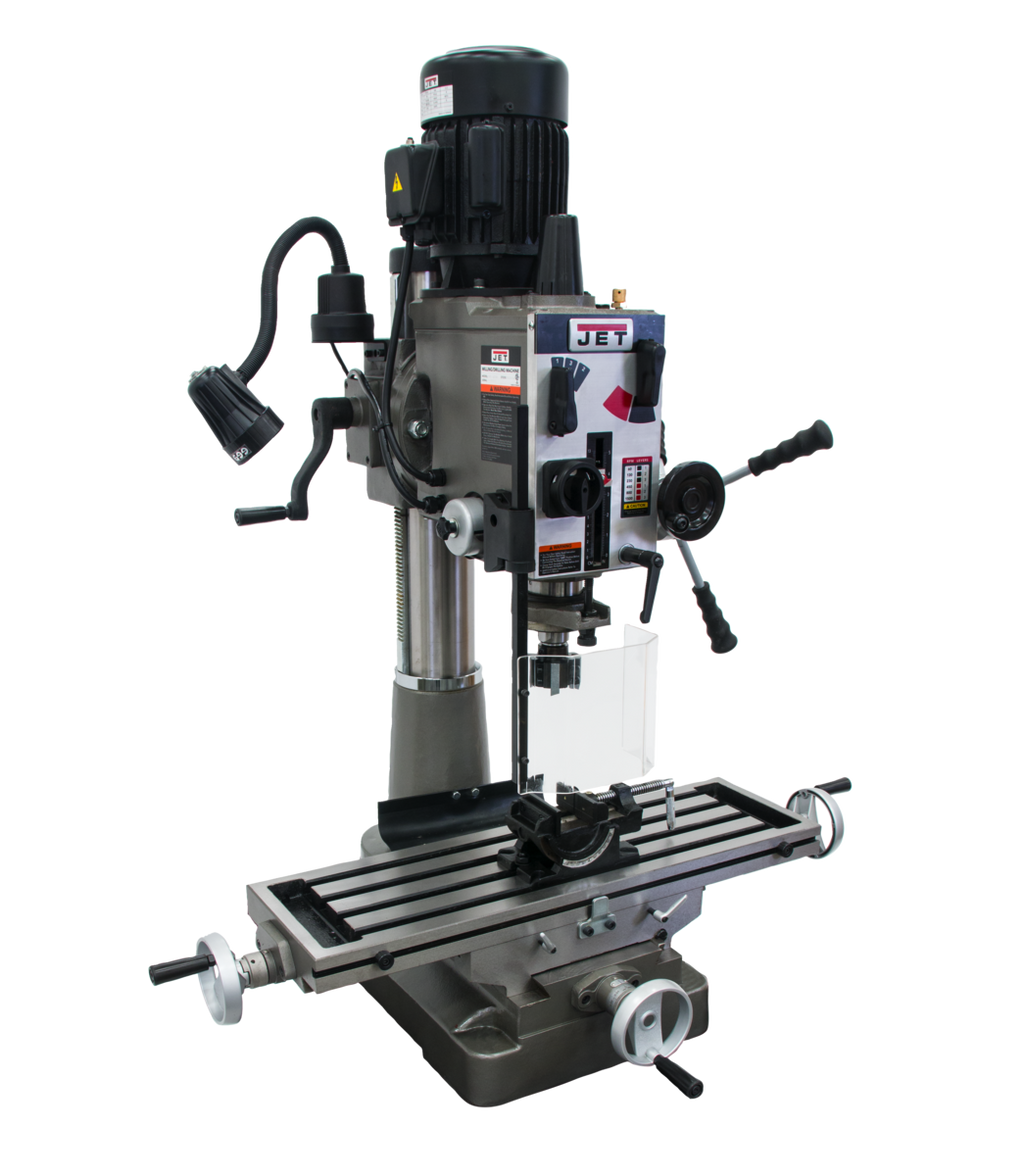

JET JMD-40GH Geared Head Mill/Drill by JET delivers heavy-duty performance engineered for a wide variety of precision drilling and milling applications. Powered by a 1-1/2 HP motor and driven through a 6-speed geared head, this round column mill drill transfers full power directly to the cutting tool for consistent, accurate results across demanding workloads. The R8 spindle accepts all standard mill tooling, making this machine a versatile centerpiece for any serious shop.
Key Features
- Calibrated fine down feed built in for precise depth control
- CSA/CUS Certified for safety and compliance
- Easy to read internal depth gauge keeps measurements accurate at a glance
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- Milling table allows for movement to accommodate varied workpiece positioning
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
- Mill Drill Stand, p/n 350045, shown in some images, is optional
Specifications
- MPN: JT9-351040
- Stock Number: 351040
- Country of Origin: Taiwan
- Motor: 1-1/2HP, 115/230V, 1Ph
- Number of Spindle Speeds: 6
- Range of Spindle Speeds (RPM): 65, 130, 220, 480, 925, 1550rpm
- Spindle Taper: R-8
- Spindle Travel (In.): 5
- Quill Diameter (In.): 3
- Column Diameter (In.): 4-1/2
- Face Mill Capacity (In.): 4
- Max Distance Spindle to Table (In.): 15-3/4
- Table Longitudinal Travel (In.): 20-1/2
- Swing (In.): 21
- Overall Dimensions (L x W x H) (In.): 28 x 39-1/4 x 42-1/2
- Weight (Lbs.): 694
- Prop 65: Cancer and Reproductive Harm
- Warranty: JET 2-Year Red Assurance Warranty
Frequently Asked Questions
- What spindle taper does the JMD-40GH use, and what tooling is compatible?
- The JMD-40GH features an R-8 spindle taper, which allows use of all mill tooling designed for the R-8 standard - one of the most widely used tapers in milling and drilling applications.
- How many spindle speeds are available, and what is the speed range?
- The machine provides 6 spindle speeds: 65, 130, 220, 480, 925, and 1550rpm. Speed changes are made quickly and easily through quick-select gear shift levers without the need to swap belts.
- Is the Mill Drill Stand included with the JMD-40GH?
- No. The Mill Drill Stand (p/n 350045), shown in some product images, is an optional accessory and is not included with the JMD-40GH.
- What certification does the JMD-40GH carry, and what warranty is provided?
- The JMD-40GH is CSA/CUS Certified. It is backed by JET's 2-Year Red Assurance Warranty, with service available through JET Authorized Service Centers located throughout the United States.
