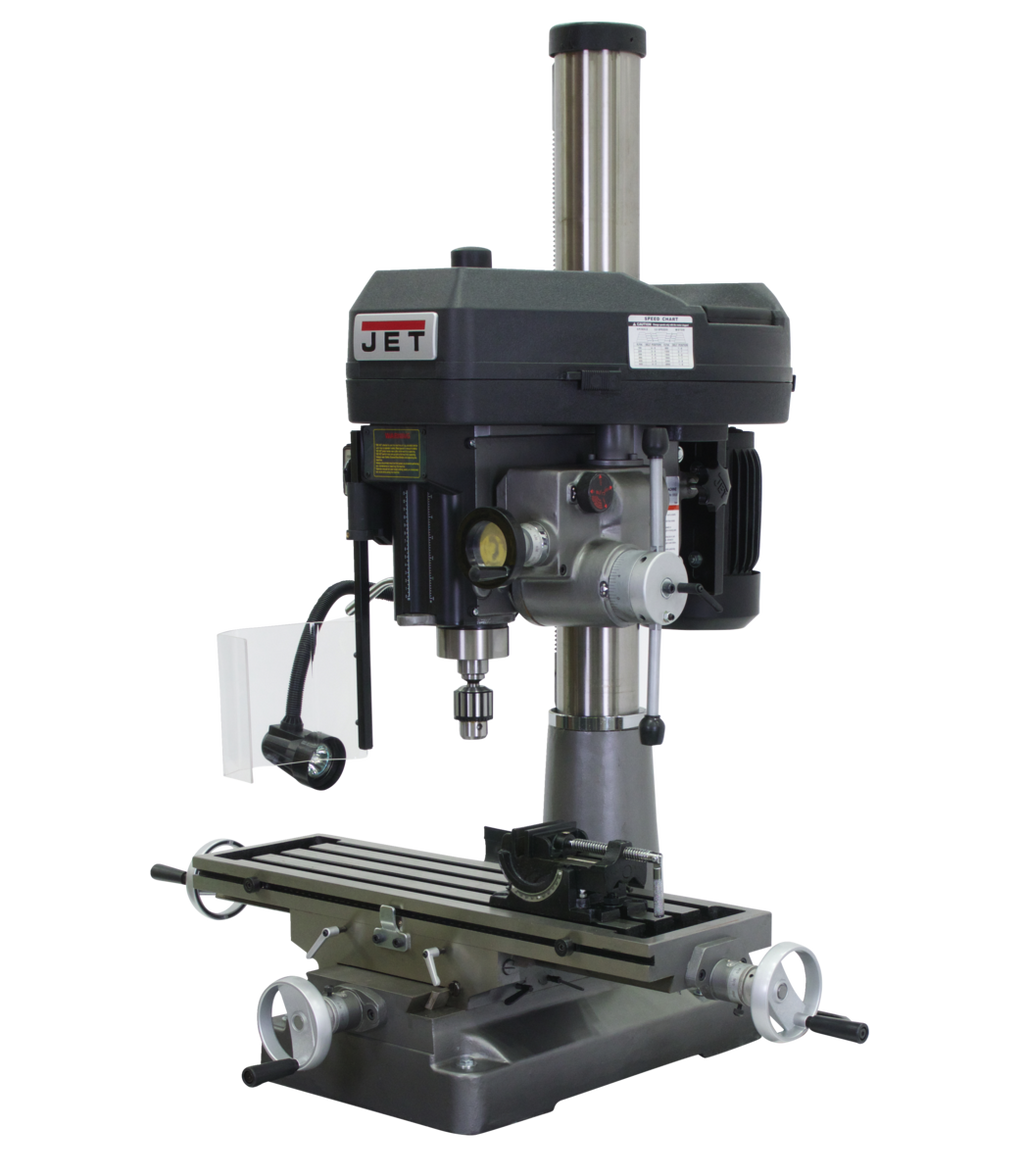

JET JMD-18PFN Mill/Drill with Power Downfeed 115/230V 1Ph by JET delivers the space-saving versatility of a milling machine in a compact, affordable package. Combining a belt-driven drill press with dual-coordinate table movement, this mill drill is engineered for light machining tasks that demand precision and flexibility. The heavy-duty power downfeed mechanism sets the JMD-18PFN apart, enabling consistent, controlled cutting depth without constant manual intervention - making it a practical choice for machinists, fabricators, and toolroom professionals who require reliable performance in a smaller footprint.

Key Features

• Heavy-duty power downfeed with manual feed for consistent, controlled material removal
• One-piece cast iron column for added support and rigidity during operation
• 360-degree head swivel for versatile cutting angles and repositioning
• Adjustable carbide facemill included for facing operations
• 1/2" drill chuck and chuck arbor included for immediate setup
• Easy to read internal depth gauge for precise depth monitoring
• Positive quick-stop knob combined with easy to read internal depth gauge for repeatable results
• Base taper allows for easier clean up of chips and debris
• UL Listed for safety assurance

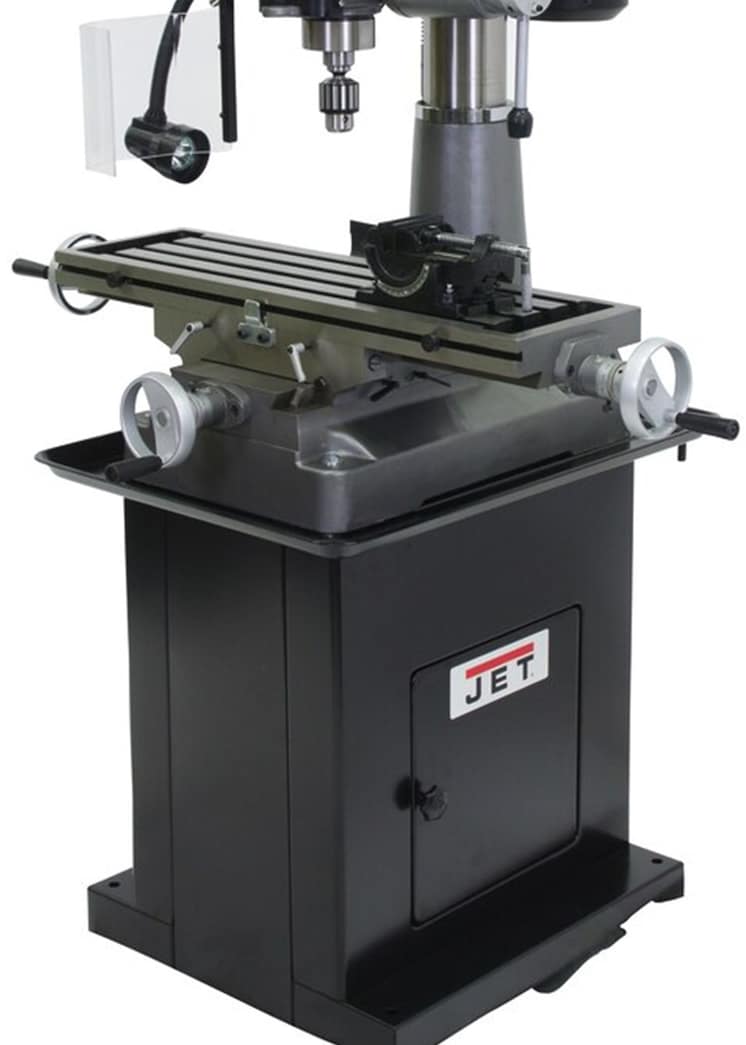

• Mill Drill Stand (p/n 350045), shown in some images, is optional and sold separately

Specifications

• Stock Number: 350020
• Motor: 2 HP, 115/230V, 1 Ph, Prewired 115V
• Number of Spindle Speeds: 12
• Range of Spindle Speeds (RPM): 150-3,000
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Spindle Travel Auto (In.): 4-1/4
• Quill Diameter (In.): 3
• Quill Down Feed Rates (IPR): 0.0047, 0.007, 0.001
• Powerfeed: Downfeed
• Face Mill Capacity (In.): 3
• Table Longitudinal Travel (In.): 20-1/2
• T-Slots Number and Size (In.): 4 and 5/8
• T-Slot Centers (In.): 1-13/16
• Max Distance Spindle to Table (In.): 28
• Column Diameter (In.): 4-1/2
• Swing (In.): 15-7/8
• Base Dimensions (In.): 15-3/4 x 23-3/4
• Overall Dimensions (L x W x H) (In.): 47 x 40 x 51
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

What's Included

• 1/2" drill chuck
• Chuck arbor
• Adjustable carbide facemill

Frequently Asked Questions

What is the difference between the power downfeed and manual feed on the JMD-18PFN?

The JMD-18PFN is equipped with a heavy-duty power downfeed with manual feed. The power downfeed automatically advances the quill at a set rate - choose from three quill down feed rates of 0.0047, 0.007, or 0.001 IPR - while the manual feed option gives the operator direct hand control over quill movement for operations that require a more tactile approach.

What spindle taper does this mill drill use, and how fast can the spindle turn?

The JMD-18PFN uses an R-8 spindle taper, which is a widely supported standard compatible with a broad range of collets and tooling. The 12-speed belt-driven spindle covers a range of 150-3,000 RPM, allowing the operator to match the cutting speed to the material and tool being used.

Is the Mill Drill Stand included with the machine?

No. The Mill Drill Stand (p/n 350045), which is shown in some images, is optional and not included with the JMD-18PFN. It must be purchased separately if a dedicated stand is desired.

How much vertical and lateral travel does the table and spindle offer?

The table provides 20-1/2 inches of longitudinal travel, and the machine offers up to 28 inches of maximum distance from the spindle to the table. The quill delivers 5 inches of total spindle travel, with 4-1/4 inches of automatic spindle travel when the power downfeed is engaged.
