Product Features
Product Description

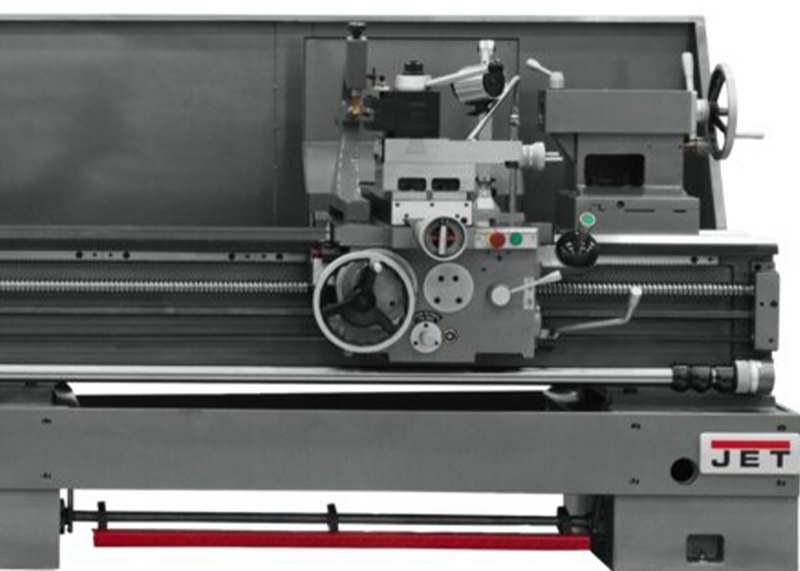

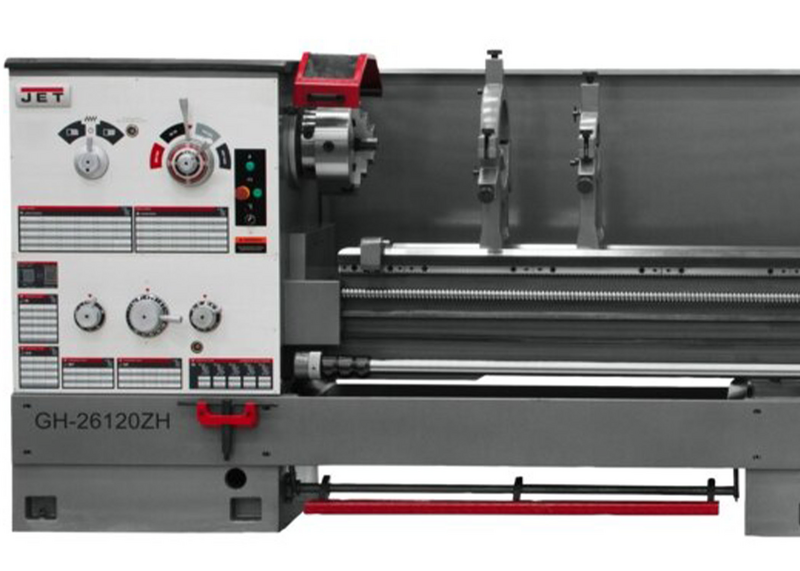

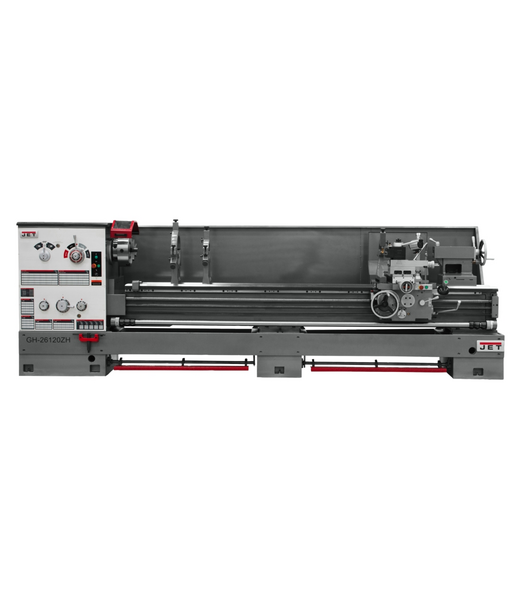

JET GH-26120ZH 4-1/8" Spindle Bore Geared Head Lathe 460V is a heavy-duty, geared head lathe engineered for high-output production environments. Built on a Certified Meehanite casting process for exceptional rigidity and vibration dampening, this JET ZH-Series machine delivers consistent, reliable performance through a clutch-operated headstock, fully hardened and ground headstock gears, a universal gearbox, and a fully integrated coolant system. With a 10 HP motor, a massive 4-1/8" spindle bore, and rapid traverse capability on the apron, this lathe is purpose-built for demanding industrial turning applications where precision and throughput are critical.
Key Features
- 12" 3 Jaw scroll chuck with top reversing jaws

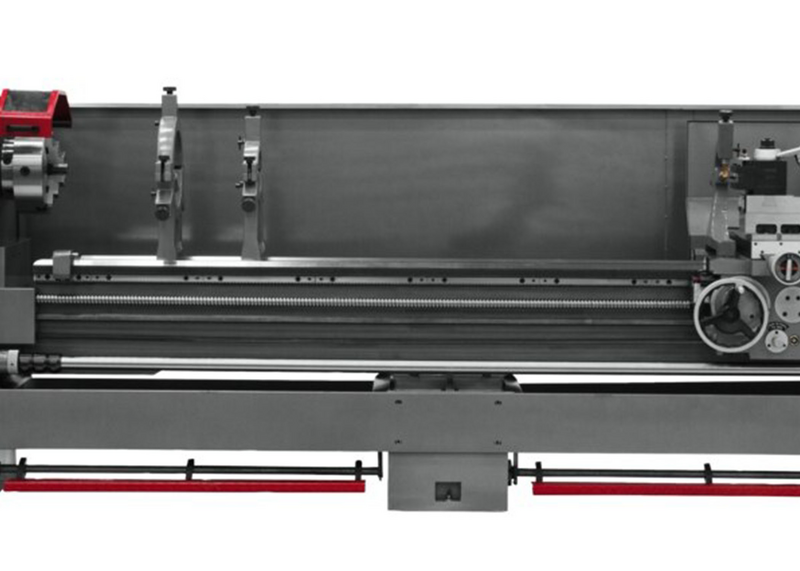

- 2 Steady rests with roller bearings
- Bed ways are induction hardened and ground for durability
- E-Stop on Carriage for added safety
- Electronic Chuck Key Holder
- Fitted top mats to hold tooling
- Full Length Splash Guard
- Heavy-duty tailstock and quill
- Large easy to use foot brake
- Rapid power traverse to cross slide and carriage
- Clutch operated headstock with all headstock gears hardened and ground
- Universal gearbox for versatile threading and feed selection
- Fully integrated coolant system
- Certified Meehanite casting process for added durability
- Geared head drive type for consistent torque across spindle speeds
Specifications
- Stock Number: JT9-321890-4
- Model Number: GH-26120ZH
- Drive Type: Geared Head
- Motor: 10 HP, 230/460, 3 Ph
- Motor Power (HP): 10
- Motor Voltage (V.): 230/460
- Prewired Voltage (V.): 460
- Number of Spindle Speeds: 12
- Carriage Travel (In.): 108-1/4
- Compound Slide Travel (In.): 5-1/2
- Bed Gap (In.): 8
- Length of Gap (In.): 8
- Max Tool Size (In.): 1-1/4 x 1-1/4
- Number of Longitudinal and Cross Feed Rates: 65
- Number of Inch Threads: 48
- Number of Metric Threads: 22
- Diametral Pitch Threads Number: 22
- Modular Pitch Threads Number: 18
- Modular Pitch Threads Range: 0.5-7
- Coolant Pump Motor: 1/8
- Overall Dimensions (L x W x H) (In.): 178 x 43 x 57
- Overall Height (In.): 57
- Net Weight (Lbs.): 9362
- Gross Weight (Lbs.): 9471
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
What's Included
- 12" 3 Jaw scroll chuck with top reversing jaws
- 2 Steady rests with roller bearings
- Electronic Chuck Key Holder
- Fitted top mats to hold tooling
- Full Length Splash Guard
Frequently Asked Questions
- What type of drive system does the GH-26120ZH use, and why does it matter for production work?
- The GH-26120ZH uses a Geared Head drive type with a clutch-operated headstock and all headstock gears hardened and ground. This design delivers consistent torque across all 12 spindle speeds, making it well suited for high-output production applications where reliable, repeatable cutting performance is essential.
- What safety features are included on this lathe?
- This lathe includes an E-Stop on the Carriage for added safety, a large easy to use foot brake, and an Electronic Chuck Key Holder - all designed to minimize operator risk during setup and operation.
- How many threading and feed options does this machine support?
- The GH-26120ZH offers extensive versatility with 48 inch threads, 22 metric threads, 22 diametral pitch threads, and 18 modular pitch threads (ranging 0.5-7), plus 65 longitudinal and cross feed rates - all managed through a universal gearbox.
- What power supply is required to operate the GH-26120ZH?
- This model is prewired for 460V and operates on a 10 HP, 230/460, 3-phase motor. Ensure your facility has the appropriate 3-phase electrical service available before installation.
