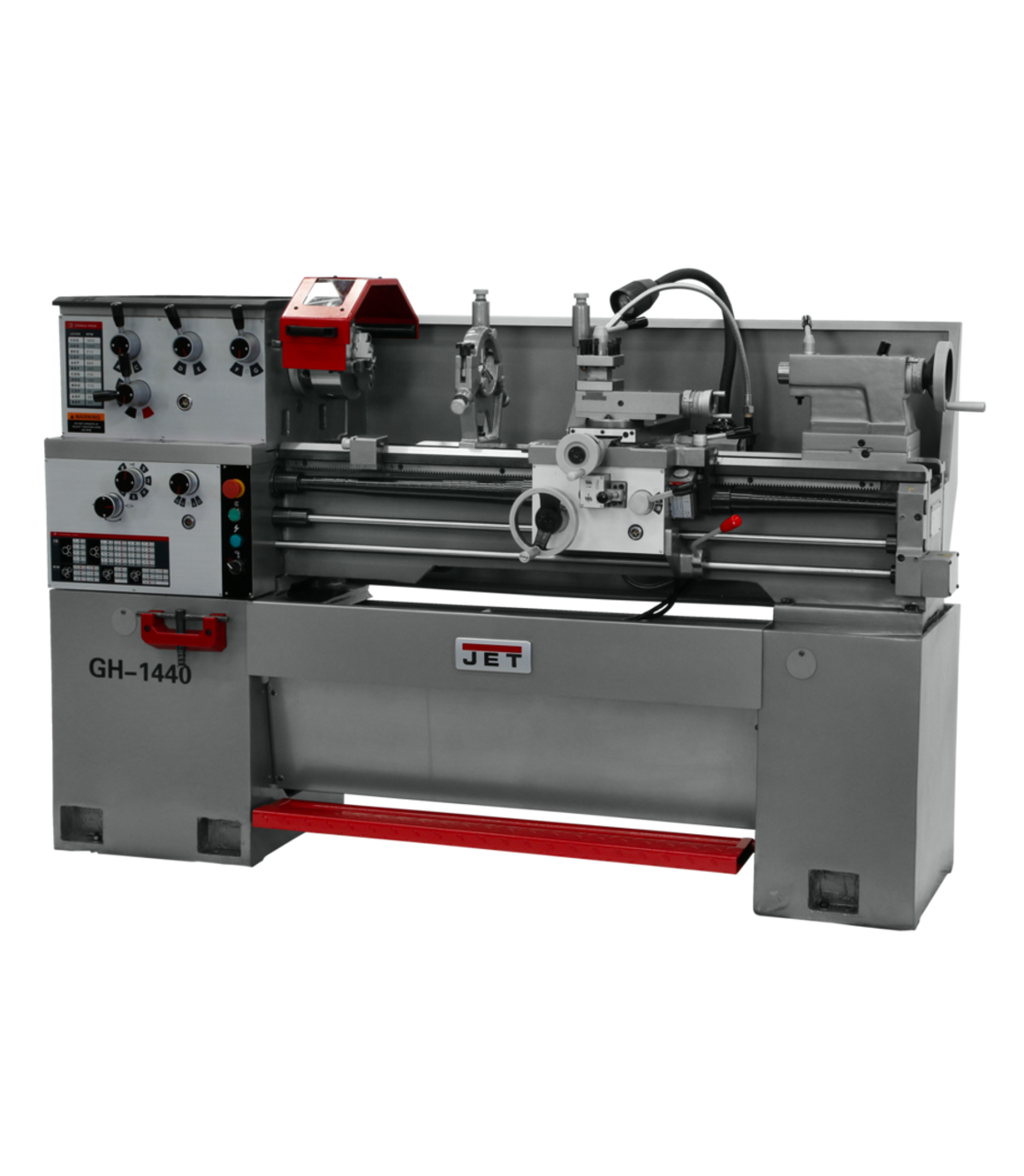

JET GH-1440-3 Geared Head Engine Lathe with NMS300 DRO 460V by JET is a heavy-duty, precision engine lathe engineered for demanding metal turning applications. Weighing over one ton and equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock, this lathe delivers ultimate working durability and long-term reliability. The enclosed gearbox design, standard coolant system, and lead screw cover ensure smooth, quiet operation while maintaining peak performance. An emergency stop is within easy reach of the operator, and a patented Electronic Chuck Key Docking Station prevents startup without the chuck key when safely docked.
Key Features
- Compound and cross slide have backlash elimination for precise, repeatable cuts
- Front Removable Chip Tray for convenient and efficient chip management
- Full Length Splash Guard to protect the operator and surrounding workspace
- Inch-metric dials are standard, providing versatile measurement options
- Independent lead screw and feed rod for flexible threading and feeding operations
- Safety on/off switch for quick, reliable machine control
- Spindle actuation control is apron mounted for convenient operator access
- Spindle jog button for easy gear engagement and spindle inching
- Splined, t keyed, shafts are utilized for robust and accurate power transmission
- Tailstock may be offset for turning taper, expanding the lathe's versatility
- Precision induction hardened ground bed-ways for lasting accuracy and wear resistance
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key safely docked
- NMS300 Digital Readout (DRO) included for enhanced measurement precision
Specifications
- Stock Number: JT9-323415-4
- Model Number: GH-1440-3
- Motor: 3HP, 230/460V, 3PH
- Carriage Travel: 37-1/2 in.
- Compound Slide Travel: 3-1/2 in.
- Length of Gap: 9-3/8 in.
- Max Tool Size: 5/8 x 5/8 in.
- Number of Inch Threads: 40
- Number of Metric Threads: 23
- Number of Longitudinal and Cross Feed Rates: 40
- Number of Spindle Speeds: 12
- Range of Inch Threads: 4-112 TPI
- Range of Cross Feeds: 0.0004-0.0103 IPR
- Range of Longitudinal Feeds: 0.0012 IPR (see product documentation for full range)
- Overall Dimensions (L x W x H): 74-4/5 x 28 x 46 in.
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- Does this lathe support both inch and metric threading?
- Yes. Inch-metric dials are standard on the GH-1440-3. The lathe offers 40 inch thread options ranging from 4-112 TPI and 23 metric thread options, giving operators broad versatility for a wide range of threading tasks.
- How does the backlash elimination on the compound and cross slide benefit machining accuracy?
- The compound and cross slide have backlash elimination, which minimizes unwanted play in the feed mechanism. This results in more precise, repeatable positioning and cutting depth control, which is critical for producing accurate finished dimensions.
- Can the tailstock be used to turn tapers?
- Yes. The tailstock may be offset for turning taper, allowing operators to produce tapered workpieces without requiring additional tooling or fixtures beyond standard setup.
- What safety features are included on this lathe?
- The GH-1440-3 includes a safety on/off switch, an emergency stop within easy reach of the operator, and a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked. A Full Length Splash Guard is also included to protect the operator during operation.
