Product Features
Product Description

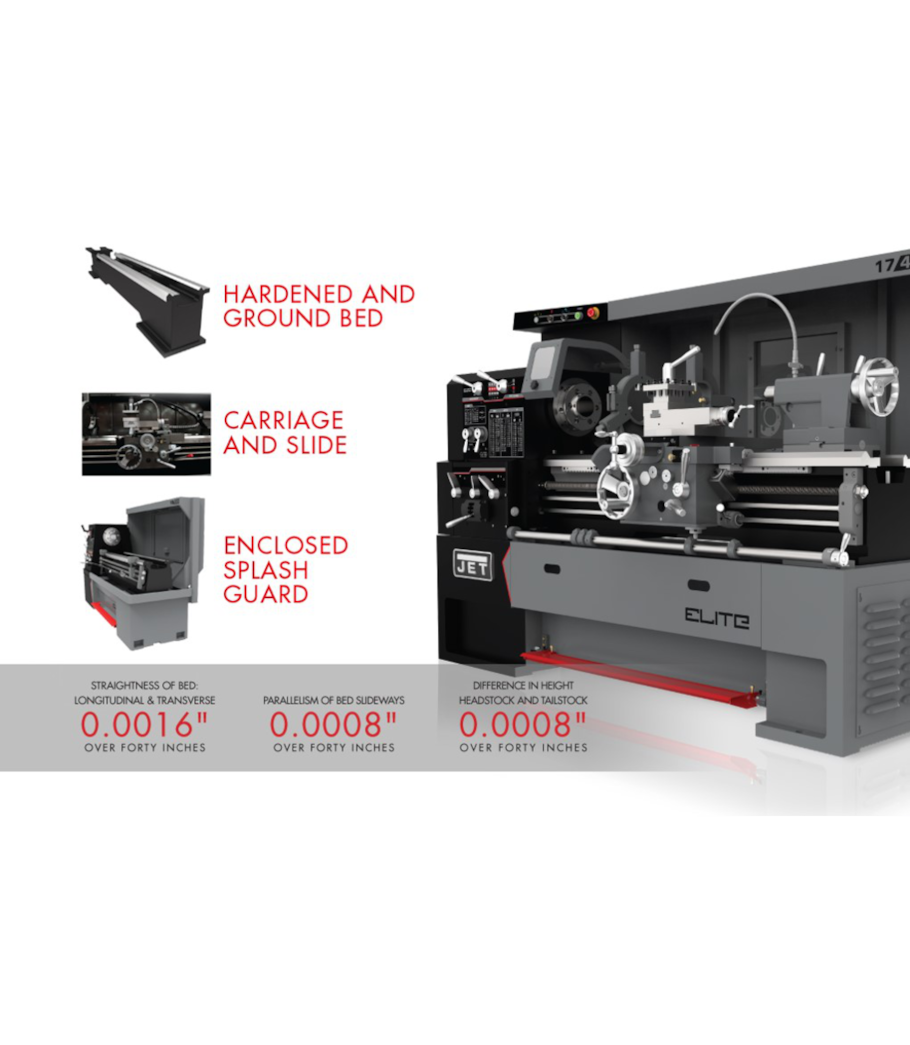

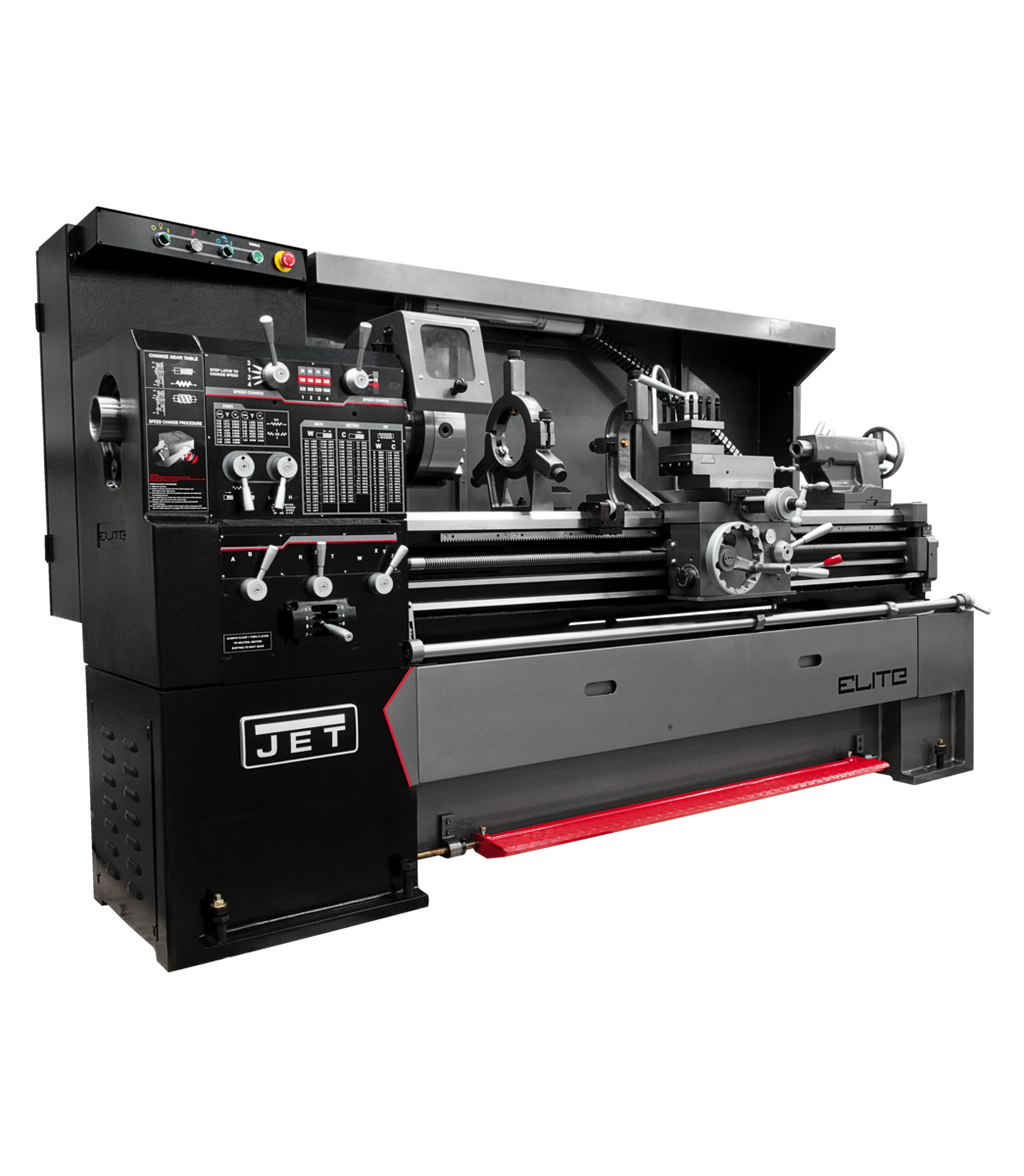

JET EGH-1740 Geared Head Lathe with Taper Attachment from JET delivers the precision and durability demanded by professional machinists and production environments alike. Built on Meehanite castings with hardened and ground bedways, this geared head lathe combines robust construction with thoughtful safety engineering to produce high-quality components turn after turn. From its enclosed coolant system to its one-shot carriage lubrication, every detail is designed to maximize uptime, protect the operator, and extend the life of the machine.
Key Features

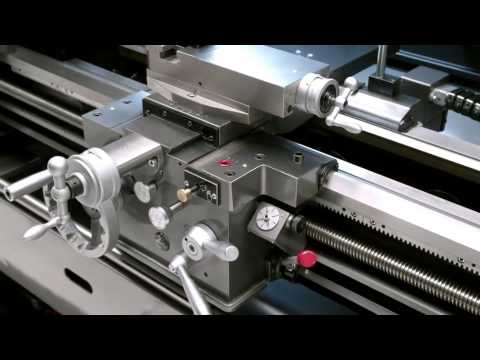

- 4-Position Carriage Stop for repeatable, accurate positioning

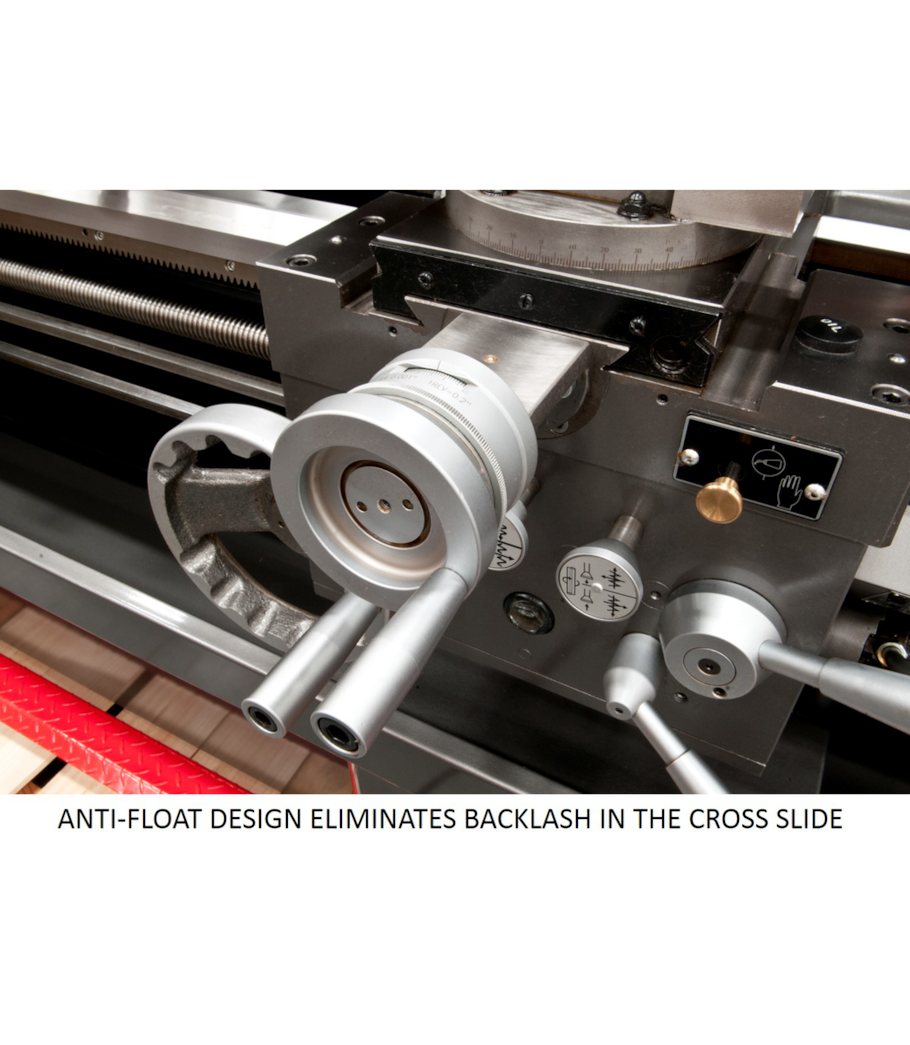

- Anti-Float design eliminates backlash in the cross slide for precise cuts
- Enclosed coolant system contains excess coolant for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

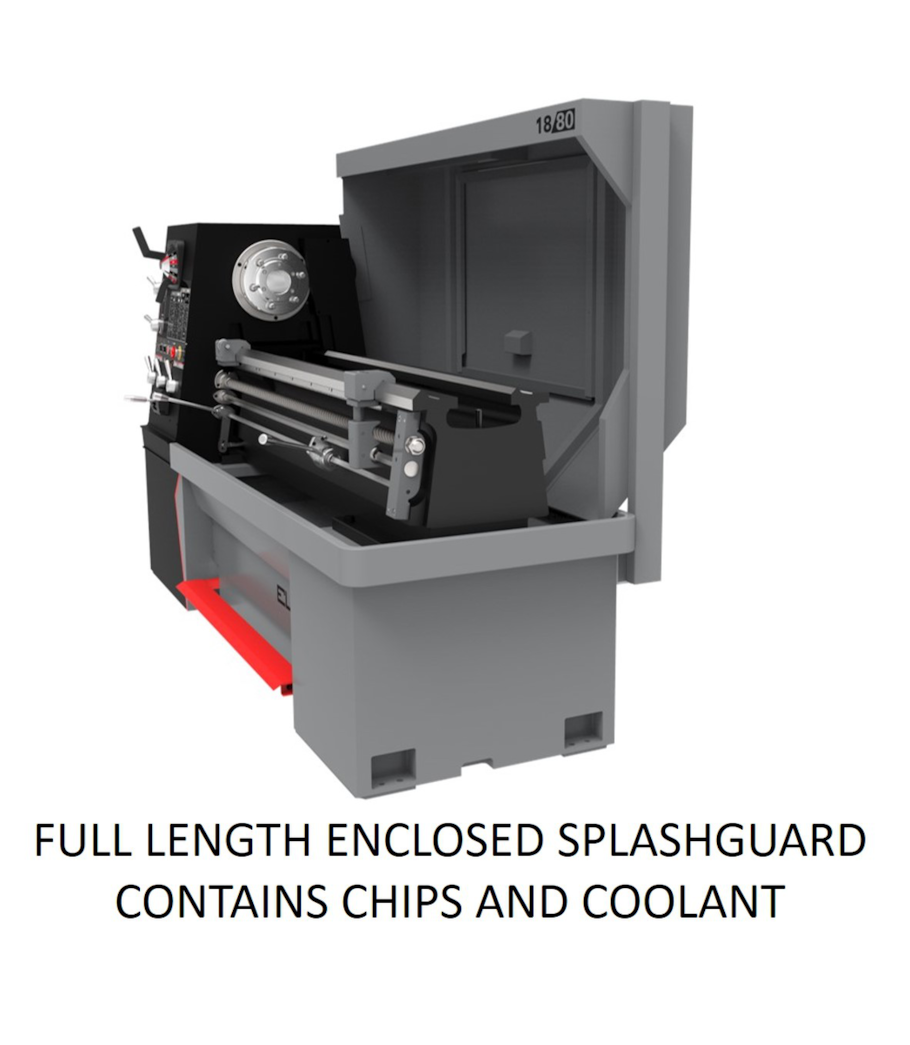

- Full Length Splash Guard keeps chips and coolant contained throughout operation

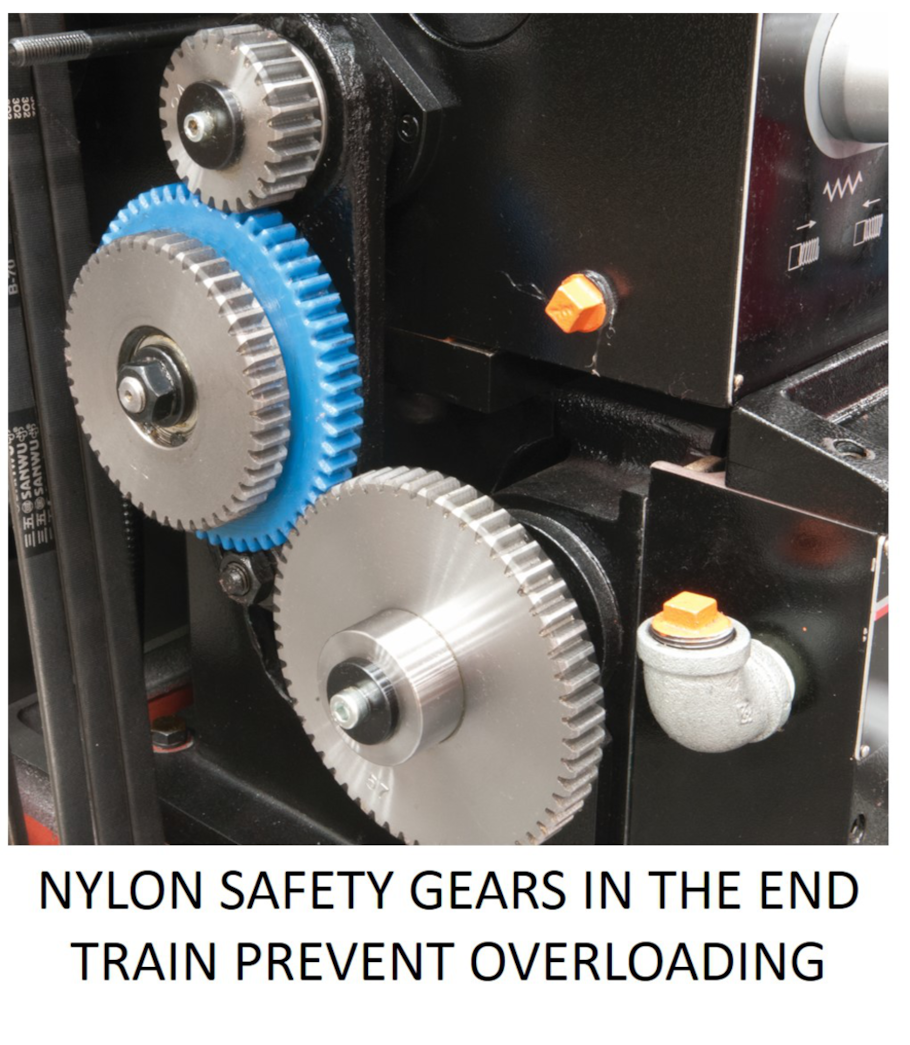

- Nylon safety gears in the end train prevent overloading, increasing safety
- One-Shot lubrication in the carriage reduces maintenance requirements
- Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock

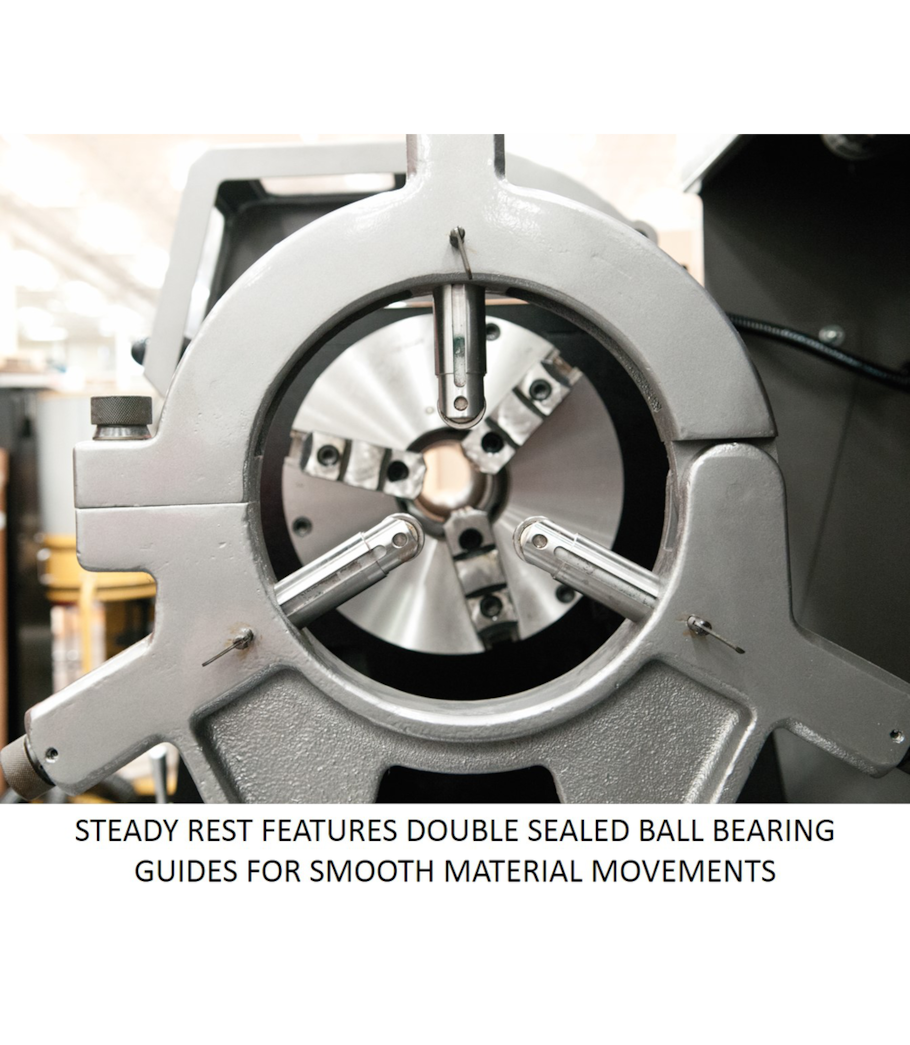

- Steady rests feature ball bearing guides for smooth material movements

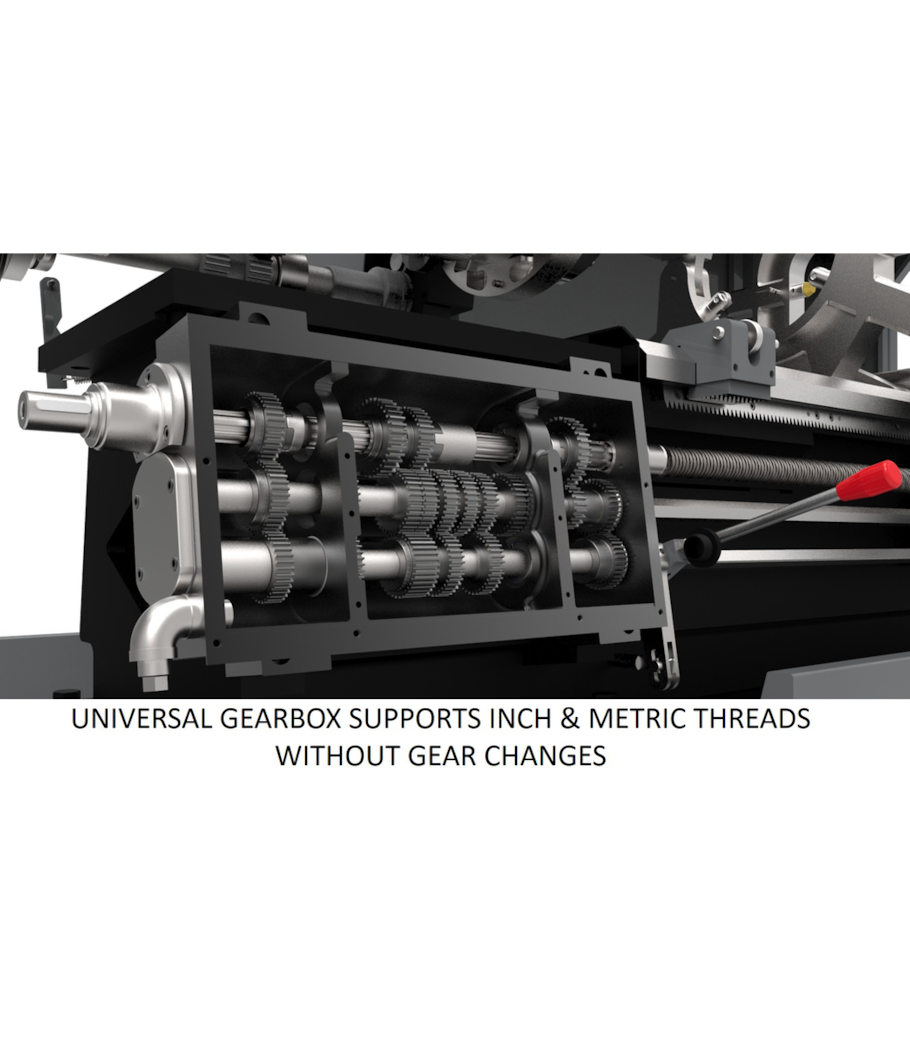

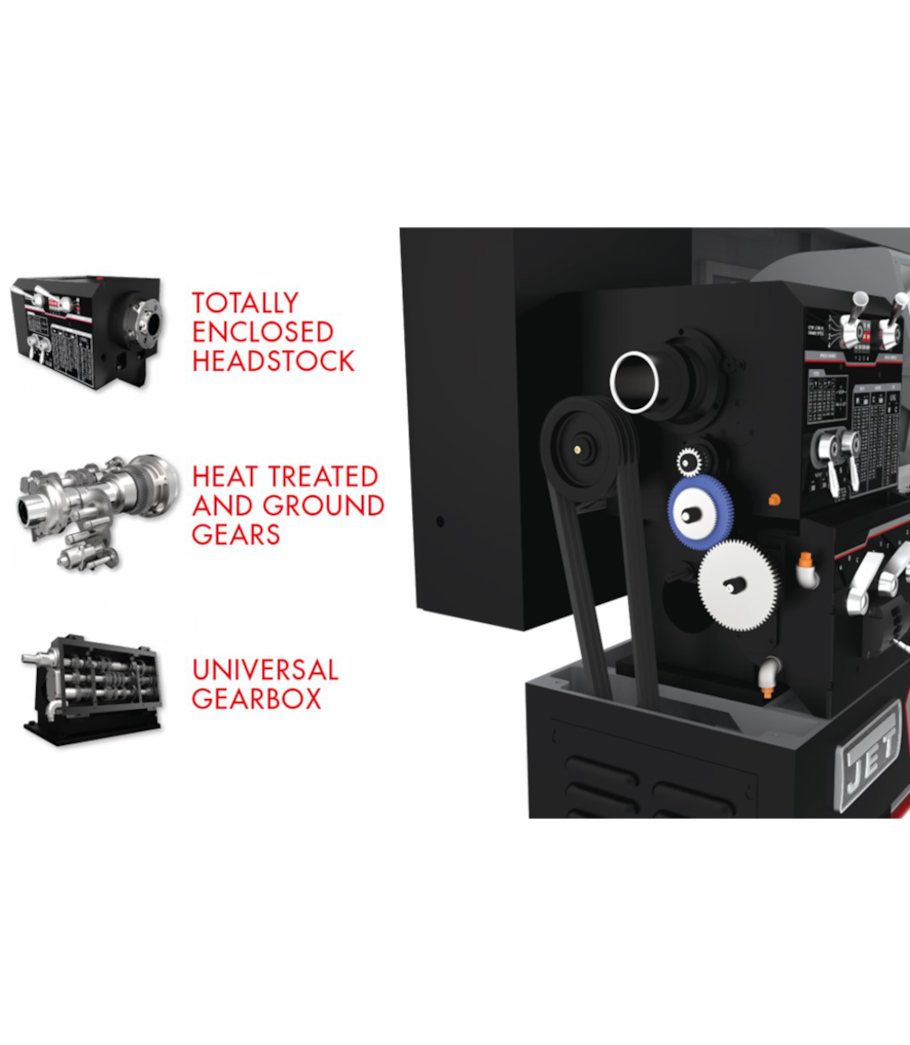

- Universal gearbox allows a wide range of threading without gear changes
- Turcite-B coatings between bed and carriage provide smooth and accurate movement

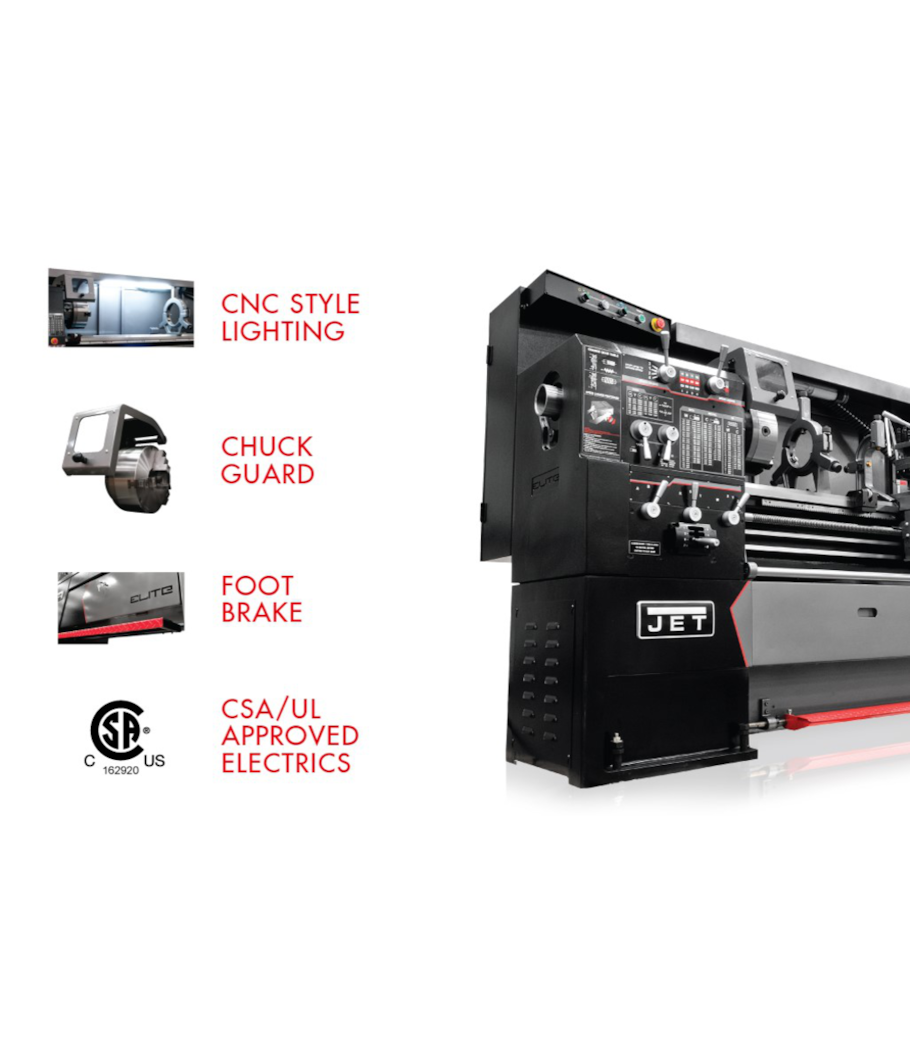

- CNC-style lighting illuminates the work area for improved visibility
Specifications
- MPN: JT9-892500
- Drive Type: Geared Head
- Number of Spindle Speeds: 12
- Number of Inch Threads: 45
- Number of Metric Threads: 39
- Diametral Pitch Threads Number: 21
- Modular Pitch Threads Number: 18
- Compound Slide Travel: 6-2/7 in.
- Length of Gap: 7-2/3 in.
- Max Tool Size: 1 x 1 in.
- Amperage Draw @ 230V 3Ph: 22 A
- Amperage Draw @ 460V 3Ph: 11 A

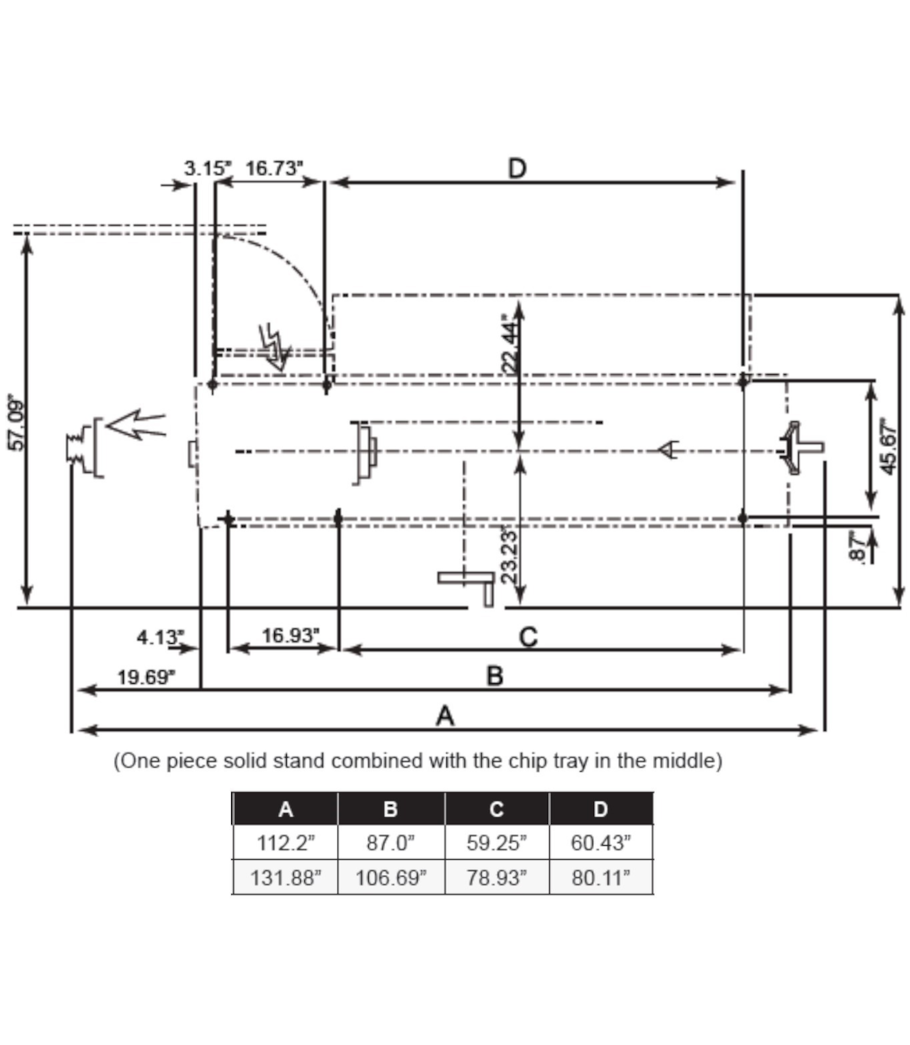

- Overall Dimensions (L x W x H): 94 x 44 x 68 in.
- Country of Origin: Taiwan
- Prop 65 Warning: Cancer and Reproductive Harm
Frequently Asked Questions
- What type of drive system does the JET EGH-1740 use?
- The JET EGH-1740 uses a Geared Head drive system, which delivers consistent torque and power across all 12 available spindle speeds without the need for belt changes.
- How does this lathe protect against feed system damage during overloads?
- A shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock. Additionally, nylon safety gears in the end train prevent overloading, increasing safety during operation.
- How many threading options does the EGH-1740 support?
- This lathe supports 45 inch threads, 39 metric threads, 21 diametral pitch threads, and 18 modular pitch threads, all accessible through a universal gearbox that allows a wide range of threading without gear changes.
- What maintenance-reducing features are built into this lathe?
- The carriage is equipped with One-Shot lubrication, which reduces the time and effort required to maintain proper lubrication across moving components. The Anti-Float design also eliminates backlash in the cross slide, reducing wear and the need for frequent adjustments.
