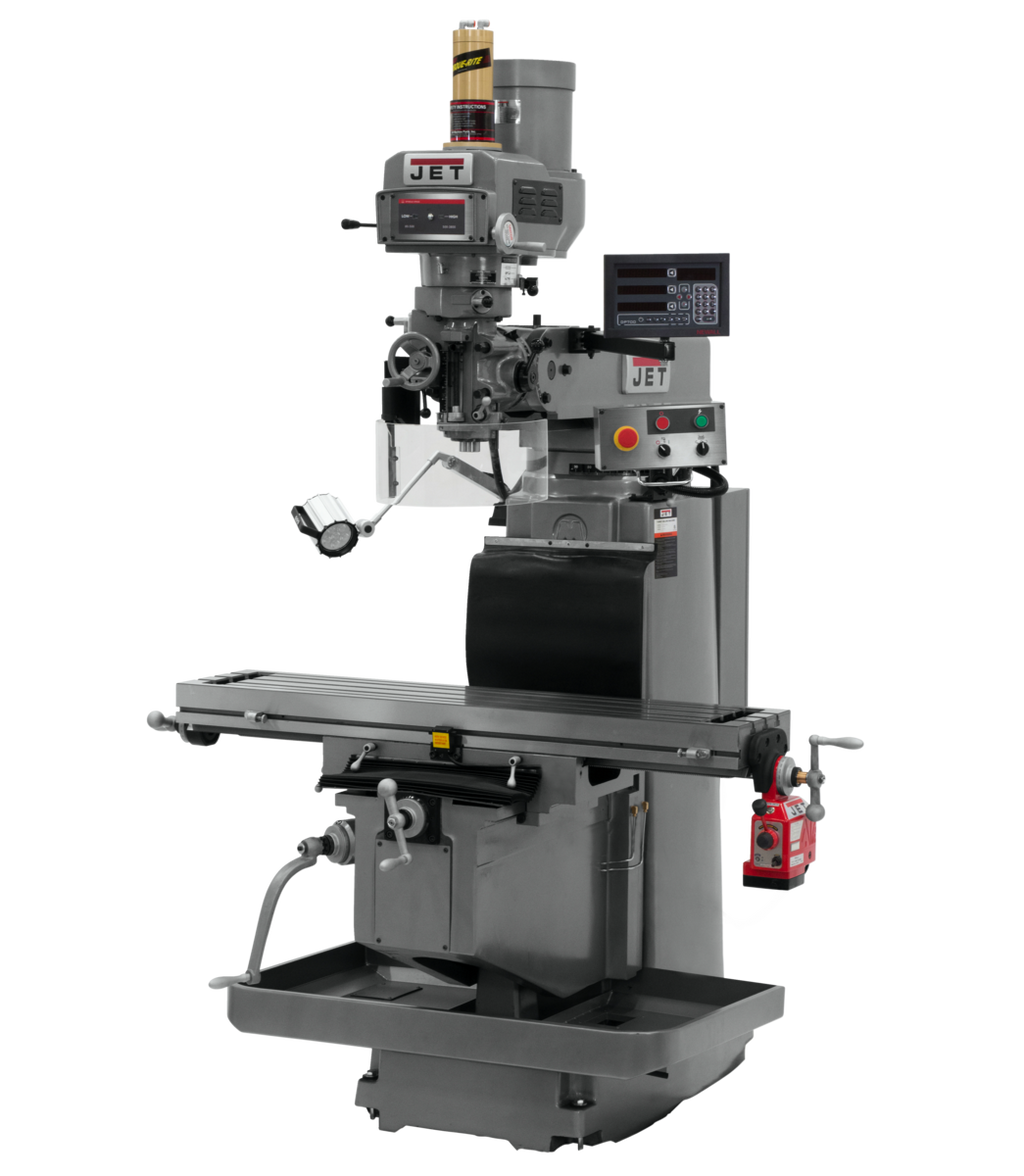

JET JTM-1254RVS Variable Speed Vertical Mill w/Newall DP700 3X (Q) DRO X Powerfeed & Air Power Drawbar is a heavy-duty 12" x 54" vertical milling machine engineered by JET for precision metalworking and component manufacturing. Combining a variable speed spindle range, a 3-axis Newall DP700 DRO, X-axis powerfeed, and a pneumatic power drawbar, this mill delivers the accuracy, control, and productivity demanded by professional machinists and production shops. Backed by the industry-leading JET Two Year Warranty, the JTM-1254RVS is built to perform on the most demanding milling operations.

Key Features

• Adjustable gibs throughout for precise fit and reduced play across all axes
• Dual locks on all moveable surfaces for rigidity during critical cuts
• Heavy-duty spindle brake for rapid stopping of the spindle, improving safety and workflow efficiency
• Precision bored and honed milling head ensures accurate spindle alignment and smooth operation
• Precision hardened and ground ways and table for long-term accuracy and resistance to wear
• Three precision ground T-slots on the table accommodate a wide variety of workholding setups
• Three-stage power downfeed with automatic stop for repeatable depth control on drilling and boring operations
• Two 115V outlets on the electrical box dedicated for powerfeed use, providing convenient, integrated power access
• Variable spindle speed range of 80 - 3,800 RPM for versatility across a broad range of materials and tooling
• Newall DP700 3-axis (Quill) digital readout for precise positioning and reduced setup time
• X-axis powerfeed for consistent, controlled table travel during milling passes
• Pneumatic power drawbar for fast, effortless tool changes
• R-8 spindle taper for broad tooling compatibility
• 5 HP, 230/460V, 3-phase motor delivers ample power for heavy material removal
• Ongoing automatic lubrication system for reduced maintenance demands and extended machine life
• JET exclusive new casting design allows easier machine leveling without raising it off the floor

Specifications

• MPN: JT9-698139
• Stock Number: 698139
• Spindle Taper: R-8
• Collet Capacity: 1/8" - 1"
• Range of Spindle Speeds (RPM): 80 - 3,800
• Motor: 5HP, 230/460V, 3Ph
• Quill Diameter (In.): 4-1/8
• Spindle Travel (In.): 5
• Quill Down Feed Rates (IPR): .0015 / .003 / .008
• Number of Axis: 3 (Quill)
• Max Distance Spindle to Table (In.): 23
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Column Width (In.): 14-1/4
• Saddle Width (In.): 25-5/8
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Powerfeed: X-Axis
• Power Draw Bar: Pneumatic
• Prop 65: Cancer and Reproductive Harm
• Country of Origin: Taiwan

Frequently Asked Questions

What spindle taper does the JET JTM-1254RVS use, and what collet sizes are compatible?

The JTM-1254RVS uses an R-8 spindle taper with a collet capacity ranging from 1/8" to 1", making it compatible with a wide selection of standard R-8 tooling available on the market.

What is the spindle speed range on this variable speed mill?

The spindle speed ranges from 80 to 3,800 RPM, allowing the operator to dial in the correct cutting speed for a broad variety of materials, from soft aluminum to hardened steel.

What are the available quill down feed rates for the three-stage power downfeed?

The three-stage power downfeed offers feed rates of .0015, .003, and .008 inches per revolution (IPR), each with an automatic stop feature for repeatable depth control during drilling and boring operations.

How does the pneumatic power drawbar improve tool change efficiency?

The pneumatic (air-powered) drawbar automates the clamping and release of tooling in the R-8 spindle, dramatically reducing the time and effort required to change cutting tools compared to a manual drawbar, which supports higher productivity during multi-operation jobs.
