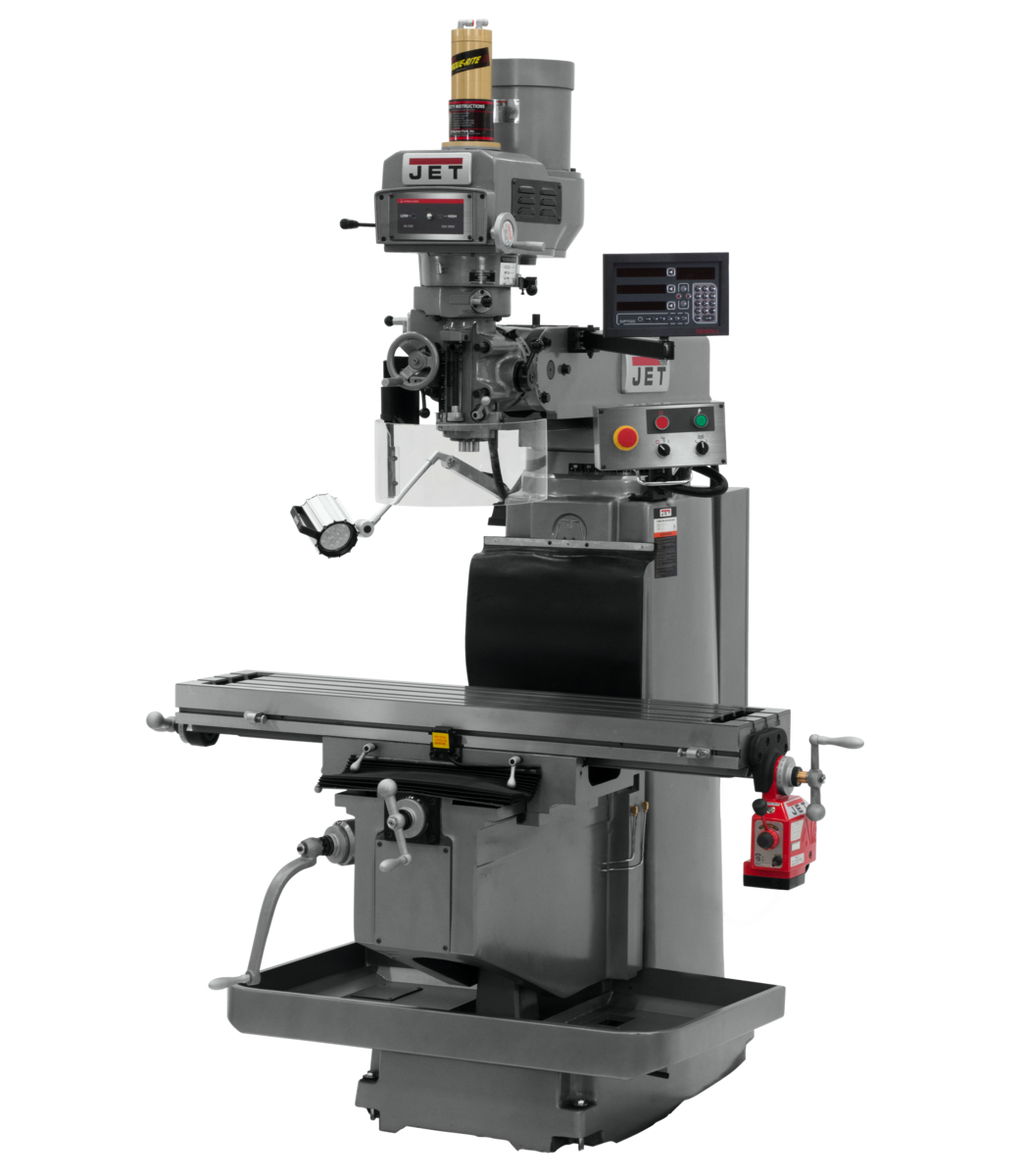

JET JTM-1254RVS Variable Speed Vertical Mill w/Newall DP700 DRO X Powerfeed & Air Power Drawbar is a professional-grade 12" x 54" vertical milling machine engineered by JET to deliver exceptional durability, precision, and versatility for demanding machining operations. Combining variable spindle speed control with a Newall DP700 Digital Readout, X-Axis Powerfeed, and pneumatic power drawbar, this heavy-duty mill is built to produce high-quality components with consistent accuracy and ease of use. Backed by the industry-leading JET Two Year Warranty, this machine offers both R-8 spindle compatibility and ongoing automatic lubrication for reliable, long-term performance.

Key Features

• Adjustable gibs throughout for precise fit and reduced play across all axes
• Dual locks on all moveable surfaces for secure, repeatable positioning
• Heavy-duty spindle brake for rapid stopping of the spindle, improving operator safety and efficiency
• Precision bored and honed milling head ensures tight tolerances and smooth operation
• Precision hardened and ground ways and table for long-lasting accuracy and wear resistance
• Three precision ground T-slots for versatile workholding and fixture mounting
• Three-stage power downfeed with automatic stop for controlled, repeatable depth cuts
• Two 115V outlets on the electrical box dedicated for Powerfeeds only
• Variable spindle speed range of 80 - 3,800 RPM for adaptability across a wide range of materials and operations
• Newall DP700 Digital Readout (DRO) for precise, real-time positional feedback
• X-Axis Powerfeed for automated table movement, reducing operator fatigue on long passes
• Pneumatic (air) power drawbar for fast, tool-less spindle tooling changes
• JET exclusive new casting design enables easier machine leveling without raising it off the floor
• Quick nut spindle feed for faster depth adjustments during operation
• Ongoing automatic lubrication system extends machine life and reduces maintenance downtime

Specifications

• MPN: JT9-698127
• Stock Number: 698127
• Country of Origin: Taiwan
• Motor: 5HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 80 - 3,800
• Spindle Taper: R-8
• Collet Capacity: 1/8 - 1
• Spindle Travel (In.): 5
• Quill Diameter (In.): 4-1/8
• Quill Down Feed Rates (IPR): .0015 / .003 / .008
• Number of Axes: 2
• Powerfeed: X-Axis
• Power Draw Bar: Pneumatic
• Column Width (In.): 14-1/4
• Saddle Width (In.): 25-5/8
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Max Distance Spindle to Table (In.): 23
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What spindle taper does the JET JTM-1254RVS use?

This mill uses an R-8 spindle taper, which is one of the most common and widely supported tapers in manual vertical milling. It accepts collets with a capacity range of 1/8" to 1".

What is the spindle speed range on this variable speed mill?

The JTM-1254RVS offers a variable spindle speed range of 80 to 3,800 RPM, allowing operators to dial in the optimal cutting speed for a wide variety of materials and tooling sizes.

How does the pneumatic power drawbar work and what are its benefits?

The air-powered (pneumatic) drawbar allows for fast, convenient tooling changes directly at the spindle without the need for manual wrenching. This significantly reduces changeover time and operator fatigue during high-production operations.

What quill down feed rates are available, and does the machine have an automatic stop feature?

The quill offers three down feed rates of .0015, .003, and .008 inches per revolution (IPR). The machine also includes a three-stage power downfeed with an automatic stop, enabling precise and repeatable depth-of-cut control for drilling and boring operations.
