Product Description

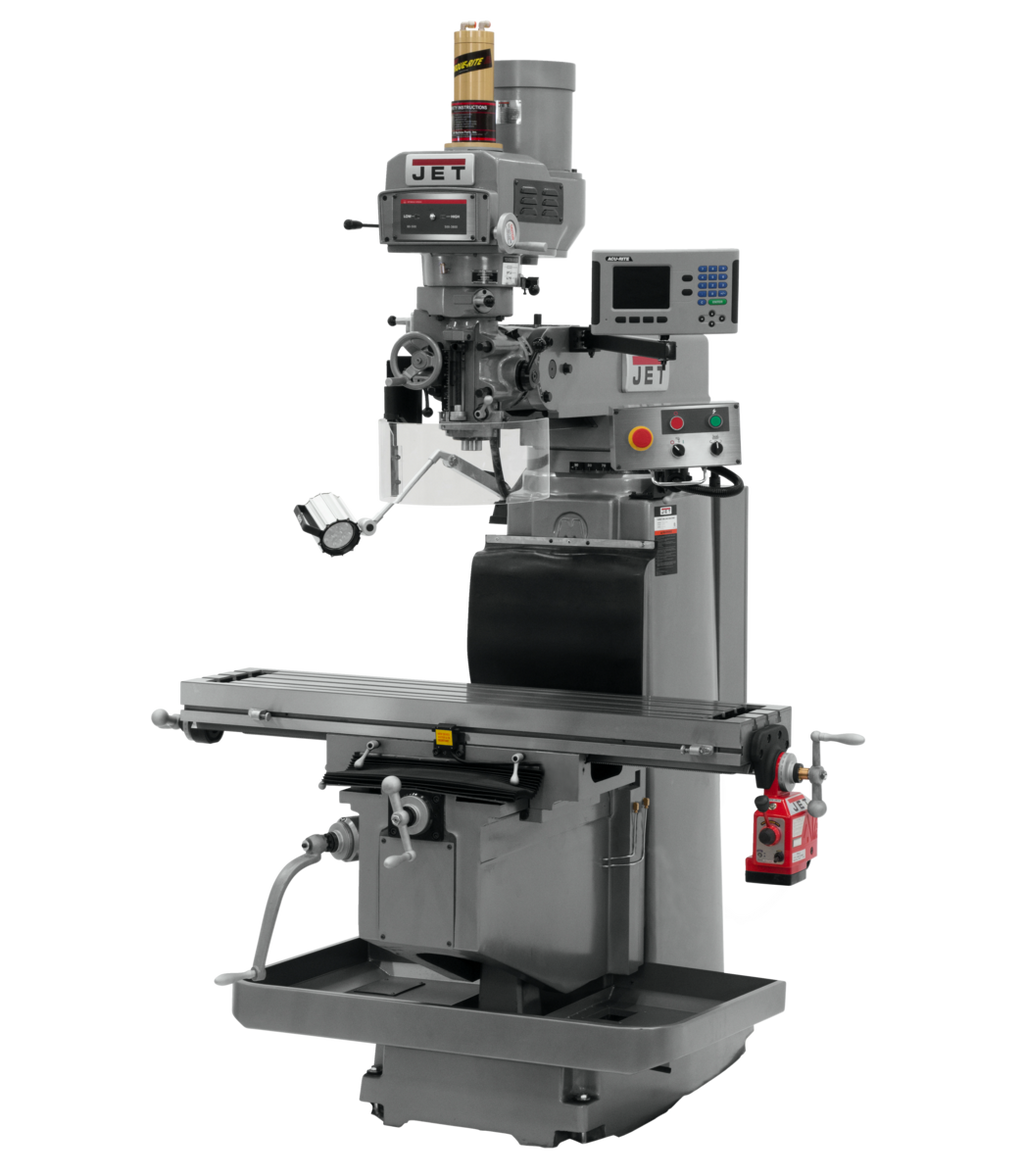

JET JTM-1254RVS Variable Speed Vertical Mill w/ACU-RITE 203 3X (K) DRO X Powerfeed & Air Power Drawbar is a professional-grade 12" x 54" vertical milling machine engineered by JET to deliver precision, durability, and ease of use in demanding machining environments. Combining variable spindle speeds ranging from 80 to 3,800 RPM with a powerful 5HP motor, an ACU-RITE 203 3-axis digital readout, X-axis powerfeed, and a pneumatic power drawbar, this mill is built to produce high-quality components with exceptional accuracy and control. Backed by the industry-leading JET Two Year Warranty, the JTM-1254RVS is a trusted solution for machinists who require consistent, repeatable performance.
Key Features
- Adjustable gibs throughout for precise fit and reduced play
- Dual locks on all moveable surfaces for secure, vibration-free operation
- Heavy-duty spindle brake for rapid stopping of the spindle
- Precision bored and honed milling head for superior accuracy
- Precision hardened and ground ways and table for long-term durability and flatness
- Three precision ground T-slots for versatile workholding
- Three-stage power downfeed with automatic stop for controlled depth cutting
- Two 115V outlets on electrical box dedicated for powerfeeds only
- ACU-RITE 203 3-axis (Knee) digital readout system for precise positional feedback
- X-axis powerfeed for consistent, hands-free table travel
- Pneumatic power drawbar for fast and effortless tool changes
- Variable spindle speed range of 80 - 3,800 RPM for versatile material and application compatibility
- Ongoing automatic lubrication and quick nut spindle feed for reduced maintenance and downtime
- Exclusive JET casting design enables easier machine leveling without lifting off the floor
- Available in R-8 spindle taper for broad tooling compatibility
Specifications
- MPN: JT9-698115
- Stock Number: 698115
- Spindle Taper: R-8
- Collet Capacity: 1/8" - 1"
- Spindle Travel: 5 in.
- Quill Diameter: 4-1/8 in.
- Quill Down Feed Rates (IPR): .0015 / .003 / .008
- Range of Spindle Speeds: 80 - 3,800 RPM
- Motor: 5HP, 230/460V, 3-Phase
- Number of Axis: 3 (Knee)
- Powerfeed: X-Axis
- Power Drawbar: Pneumatic
- Max Distance Spindle to Table: 23 in.
- Distance Spindle to Column (Max.): 27-3/4 in.
- Column Width: 14-1/4 in.
- Saddle Width: 25-5/8 in.
- Overall Dimensions (L x W x H): 92-1/8 x 79-7/8 x 104-1/4 in.
- Prop 65: Cancer and Reproductive Harm
- Country of Origin: Taiwan
Frequently Asked Questions
- What spindle taper does the JET JTM-1254RVS use?
- The JTM-1254RVS is equipped with an R-8 spindle taper, which accepts collets ranging from 1/8" to 1" and is compatible with a wide range of standard milling tooling.
- What is the spindle speed range on this variable speed vertical mill?
- The spindle speed range on the JTM-1254RVS is 80 to 3,800 RPM, providing broad versatility for cutting a variety of materials and performing different milling operations.
- What digital readout system is included with this mill?
- This mill comes equipped with the ACU-RITE 203 3-axis (Knee) DRO system, which provides accurate positional readout across all three axes to improve machining precision and efficiency.
- How does the pneumatic power drawbar benefit the user?
- The pneumatic (air-powered) drawbar allows for fast, effortless tool changes without the need for manual wrenching, reducing operator fatigue and increasing productivity during tool-intensive operations.
