Product Features
Product Description

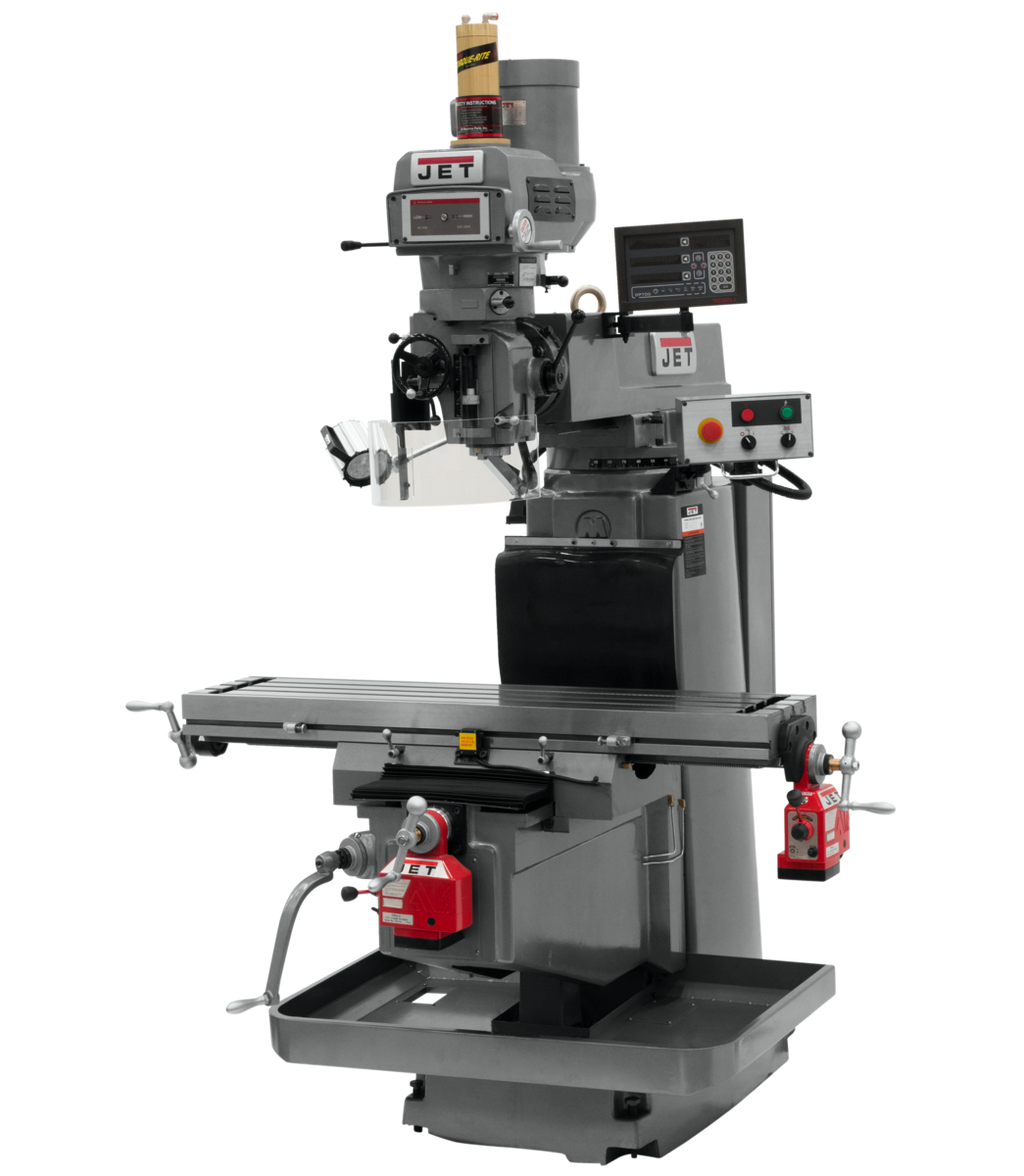

JET JTM-1254VS Variable Speed Vertical Mill w/Newall DP700 3X (Q) DRO X & Y Powerfeeds & Air Power Drawbar is a professional-grade 12" x 54" vertical milling machine engineered by JET to deliver exceptional precision, durability, and ease of operation in demanding machining environments. Equipped with a Newall DP700 3-axis quill DRO, X & Y powerfeeds, and a pneumatic power drawbar, this variable speed mill is built for machinists who require reliable, high-accuracy performance backed by the industry-leading JET Two Year Warranty.
Key Features
- Adjustable gibs throughout for precise fit and long-term accuracy
- Dual locks on all moveable surfaces for rigid workholding and repeatable setups
- Heavy-duty spindle brake for rapid stopping of the spindle
- Precision bored and honed milling head ensures superior spindle accuracy
- Precision hardened and ground ways and table for extended wear resistance and smooth travel
- Three precision ground T-slots for versatile workholding configurations
- Three-stage power downfeed with automatic stop for controlled, repeatable depth operations
- Two 115V outlets on the electrical box dedicated for powerfeeds
- Variable spindle speed range of 80 - 3,800 RPM for versatility across a wide range of materials and operations
- Ongoing automatic lubrication system for reduced maintenance and extended machine life
- Quick nut spindle feed for fast and easy adjustments
- NST #40 spindle taper with collet capacity from 1/8" to 1"
- 5 HP, 230/460V, 3-phase motor for powerful, consistent cutting performance
- Newall DP700 3-axis (quill) digital readout for precise position feedback on X, Y, and quill axes
- Pneumatic power drawbar for fast, convenient tool changes
Specifications
- Stock Number: 698081
- Collet Capacity: 1/8 - 1
- Column Width: 14-1/4 in.
- Distance Spindle to Column (Max.): 27-3/4 in.
- Max Distance Spindle to Table: 23 in.
- Motor: 5HP, 230/460V, 3Ph
- Number of Axis: 3 (Quill)
- Overall Dimensions (L x W x H): 92-1/8 x 79-7/8 x 104-1/4 in.
- Power Draw Bar: Pneumatic
- Quill Diameter: 4-1/8 in.
- Quill Down Feed Rates (IPR): .0015 / .003 / .008
- Range of Spindle Speeds (RPM): 80 - 3,800
- Saddle Width: 25-5/8 in.
- Spindle Taper: NST #40
- Spindle Travel: 5 in.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle taper does the JET JTM-1254VS use?
- The JTM-1254VS uses an NST #40 spindle taper with a collet capacity ranging from 1/8" to 1", making it compatible with a wide range of tooling options for various milling applications.
- What is the spindle speed range on this variable speed mill?
- The JTM-1254VS offers a variable spindle speed range of 80 to 3,800 RPM, providing the flexibility needed to machine a broad variety of materials at optimal cutting speeds.
- What are the available quill down feed rates?
- This mill features a three-stage power downfeed with automatic stop, offering quill down feed rates of .0015, .003, and .008 inches per revolution (IPR) for controlled and precise depth-of-cut operations.
- Does this mill include a digital readout, and how many axes does it cover?
- Yes, the JTM-1254VS comes equipped with a Newall DP700 digital readout configured for 3 axes including the quill (Q), providing precise position feedback on the X, Y, and quill axes for accurate and repeatable machining.
