Product Features
Product Description

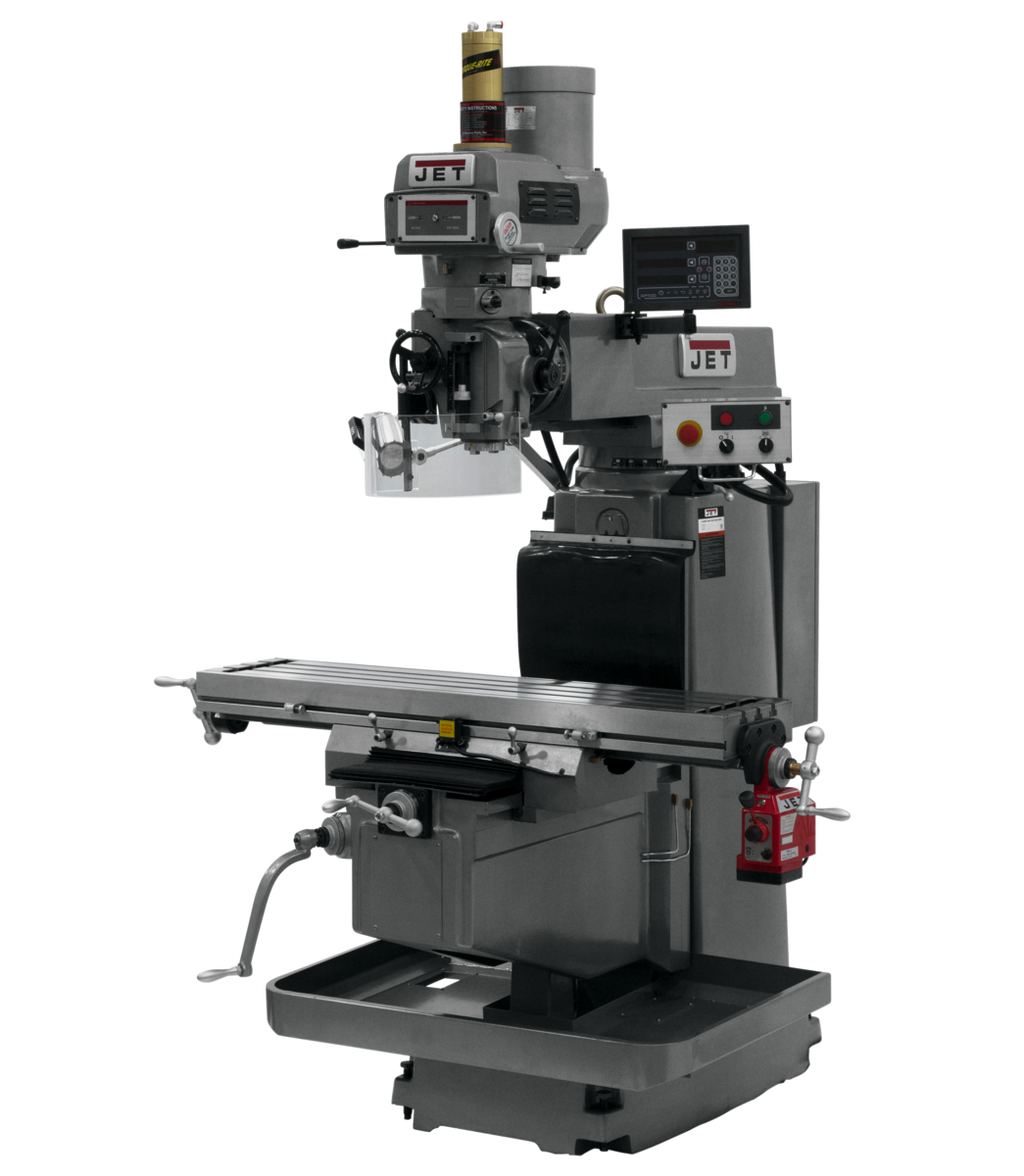

JET JTM-1254VS Variable Speed Vertical Mill w/Newall DP700 DRO X Powerfeed & Air Power Drawbar is a professional-grade 12" x 54" vertical milling machine engineered by JET for machinists and shops that demand durability, precision, and reliable performance. Combining variable spindle speed control from 80 to 3,800 RPM with a 5HP motor, a Newall DP700 digital readout, X-axis powerfeed, and a pneumatic power drawbar, this mill delivers the versatility and accuracy required for high-quality component production. Backed by the industry-leading JET Two Year Warranty, the JTM-1254VS is built to handle demanding milling operations with confidence.
Key Features
- Adjustable gibs throughout for precise fit and reduced play across all axes
- Dual locks on all moveable surfaces for secure, vibration-free workholding positions
- Heavy-duty spindle brake for rapid stopping of the spindle, improving safety and workflow efficiency
- Precision bored and honed milling head ensures accurate spindle alignment and smooth operation
- Precision hardened and ground ways and table for long-lasting accuracy and wear resistance
- Three precision ground T-slots on the table for secure and flexible workpiece fixturing
- Three-stage power downfeed with automatic stop for controlled, repeatable depth cuts
- Two 115V outlets on the electrical box dedicated for powerfeeds only
- Ongoing automatic lubrication system for extended machine life and consistent performance
- Quick nut spindle feed for fast and convenient quill depth adjustments
- JET exclusive new casting design allows easier machine leveling without lifting off the floor
- Available in NST #40 spindle taper to accommodate a wide range of tooling
- Newall DP700 Digital Readout (DRO) for precise, real-time positional feedback
- X-axis powerfeed for smooth, consistent table travel during milling operations
- Pneumatic (air) power drawbar for fast and effortless tool changes
Specifications
- MPN: JT9-698068
- Stock Number: 698068
- Motor: 5HP, 230/460V, 3-Phase
- Range of Spindle Speeds: 80 - 3,800 RPM (Variable Speed)
- Spindle Taper: NST #40
- Spindle Travel: 5 in.
- Quill Diameter: 4-1/8 in.
- Quill Down Feed Rates (IPR): .0015 / .003 / .008
- Collet Capacity: 1/8 - 1 in.
- Table Size: 12" x 54"
- Max Distance Spindle to Table: 23 in.
- Distance Spindle to Column (Max.): 27-3/4 in.
- Column Width: 14-1/4 in.
- Saddle Width: 25-5/8 in.
- Number of Axes: 2
- Powerfeed: X-Axis
- Power Drawbar: Pneumatic
- Overall Dimensions (L x W x H): 92-1/8 x 79-7/8 x 104-1/4 in.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle taper does the JET JTM-1254VS use?
- The JTM-1254VS is equipped with an NST #40 spindle taper, which accommodates a wide variety of standard toolholders and cutting tools used in professional milling applications.
- What is the spindle speed range on this variable speed mill?
- The JTM-1254VS offers a variable spindle speed range of 80 to 3,800 RPM, giving operators the flexibility to dial in the correct speed for different materials and milling operations.
- What power supply is required to operate this milling machine?
- This mill is powered by a 5HP motor that runs on 230/460V, 3-Phase electrical service. Ensure your facility has the appropriate 3-phase power supply before installation.
- Does this mill include a digital readout (DRO) and powerfeed?
- Yes. This configuration includes a Newall DP700 Digital Readout for precise positional feedback, an X-axis powerfeed for smooth and consistent table travel, and a pneumatic (air) power drawbar for fast tool changes.
