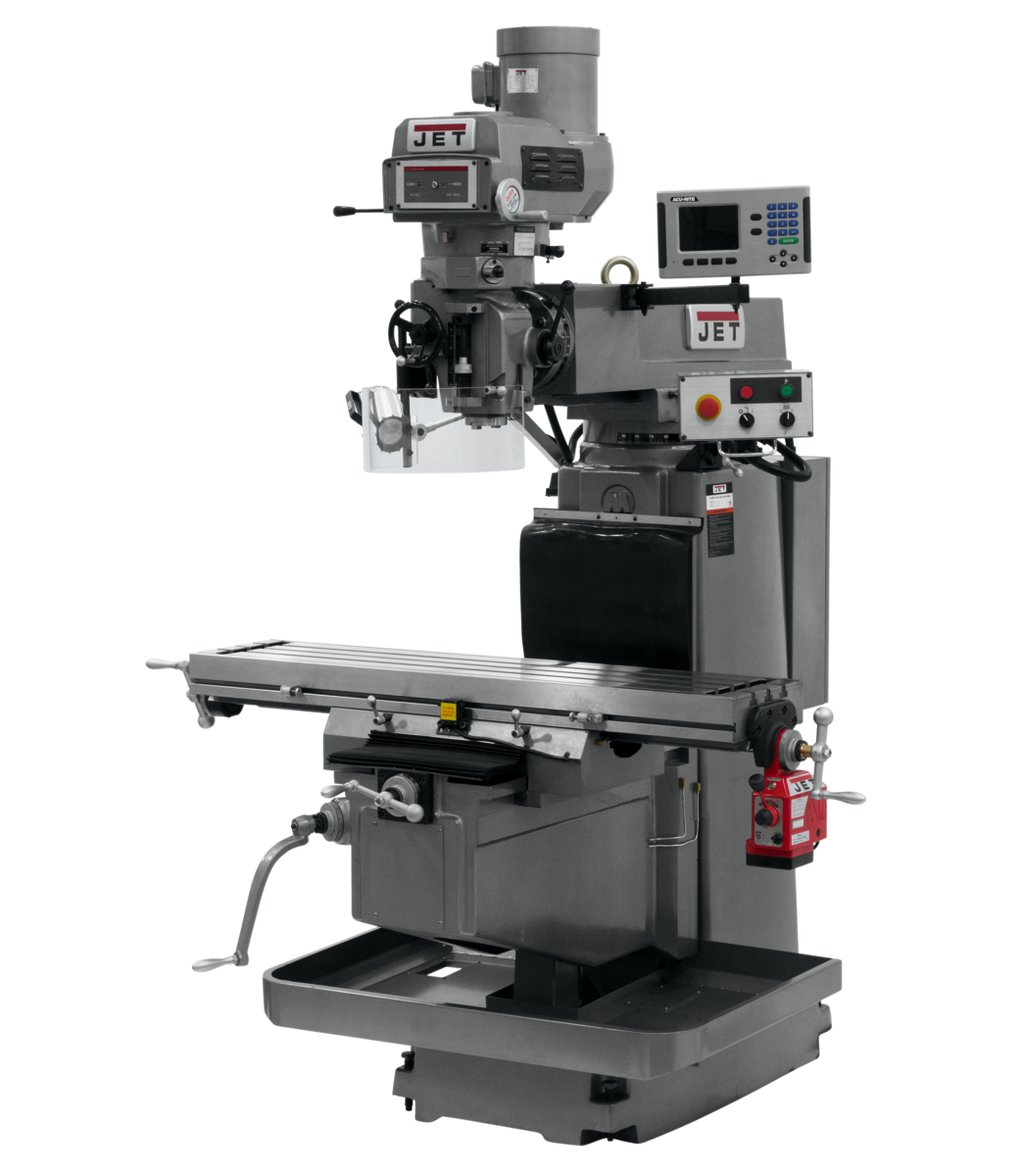

JET JTM-1254VS Variable Speed Vertical Mill with ACU-RITE 203 3X (Q) DRO & X Powerfeed is a professional-grade, 12" x 54" variable speed vertical milling machine engineered by JET for demanding machining environments. Built on a foundation of precision engineering and heavy-duty construction, this mill delivers exceptional accuracy and repeatability for shops that require consistent, high-quality component production. Featuring an NT-40 spindle, a 5HP three-phase motor, and a wide spindle speed range of 80 - 3,800 RPM, this machine is purpose-built for versatile, high-performance milling operations. The included ACU-RITE 203 3-axis quill DRO and X-axis powerfeed further enhance precision and operator efficiency, making this an ideal centerpiece for any serious machine shop.
Key Features
- Adjustable gibs throughout for precise fit and long-term accuracy
- Dual locks on all moveable surfaces for secure, stable setups
- Heavy-duty spindle brake for rapid stopping of the spindle
- Precision bored and honed milling head for superior surface finishes and tight tolerances
- Precision hardened and ground ways and table for durability and accuracy over years of use
- Three precision ground T-slots for reliable workholding and fixture mounting
- Three-stage power downfeed with automatic stop for controlled, repeatable depth operations
- Two 115V outlets on the electrical box dedicated for powerfeeds only
- Variable speed NT-40 spindle with a range of 80 - 3,800 RPM for broad machining versatility
- ACU-RITE 203 3-axis quill DRO included for real-time, precise positional readout
- X-axis powerfeed included for smooth, consistent table travel during milling operations
- Backed by the industry-leading JET Two Year Warranty
Specifications
- Stock Number: 698061
- Style (Type): Variable Speed NT40
- Table Size (L x W): 12 x 54 In.
- Motor: 5HP, 230/460V, 3Ph
- Range of Spindle Speeds: 80 - 3,800 RPM
- Spindle Taper: NST #40
- Spindle Travel: 5 In.
- Quill Diameter: 4-1/8 In.
- Quill Down Feed Rates (IPR): .0015 / .003 / .008
- Collet Capacity: 1/8 - 1
- Number of Axis: 3 (Quill)
- Powerfeed: X-Axis
- Table Longitudinal Travel: 33-7/8 In.
- Table Longitudinal Travel With Powerfeed: 28-1/4 In.
- Table Cross Travel: 15-1/3 In.
- Travel of Knee: 19-1/4 In.
- Max Distance Spindle to Table: 23 In.
- Distance Spindle to Column (Max.): 27-3/4 In.
- Column Width: 14-1/4 In.
- Saddle Width: 25-5/8 In.
- T-Slot Centers: 2-1/2 In.
- Overall Dimensions (L x W x H): 92-1/8 x 79-7/8 x 104-1/4 In.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle taper does the JET JTM-1254VS use?
- The JTM-1254VS is equipped with an NST #40 spindle taper, offering strong tool-holding rigidity for heavy-duty milling applications. The collet capacity ranges from 1/8 to 1 inch to accommodate a wide variety of tooling.
- What is the spindle speed range on this variable speed mill?
- The JTM-1254VS provides a variable spindle speed range of 80 to 3,800 RPM, giving operators the flexibility to dial in the optimal cutting speed for a wide range of materials and tooling types.
- What quill down feed rates are available?
- The three-stage power downfeed system offers feed rates of .0015, .003, and .008 inches per revolution (IPR), with an automatic stop feature for repeatable and controlled depth-of-cut operations.
- Does this mill include a digital readout (DRO) and powerfeed?
- Yes. This configuration includes the ACU-RITE 203 3-axis quill DRO for accurate real-time positional data across all three axes, as well as an X-axis powerfeed for smooth and consistent longitudinal table movement. Two dedicated 115V outlets on the electrical box are provided for powerfeed use.
