Product Features
Product Description

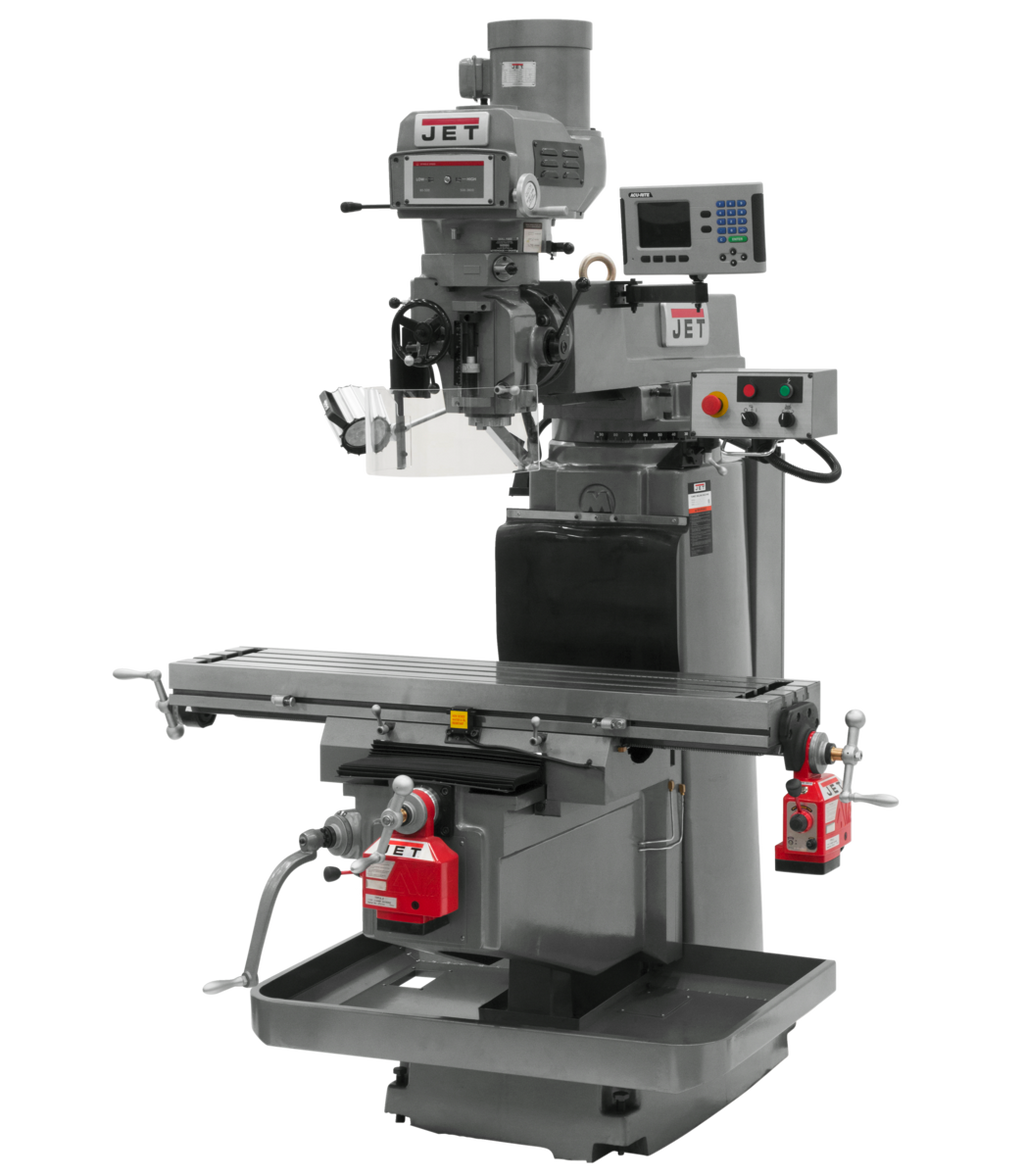

JET JTM-1254VS Variable Speed Vertical Mill w/ACU-RITE 203 DRO X & Y Powerfeeds is a professional-grade 12" x 54" vertical milling machine from JET, engineered for shops demanding high-precision component production. Combining variable spindle speeds from 80 to 3,800 RPM with an ACU-RITE 203 Digital Readout and factory-installed X & Y powerfeeds, this mill delivers exceptional accuracy, versatility, and control for demanding milling operations. Backed by the industry-leading JET Two Year Warranty, the JTM-1254VS is built to perform in rigorous production environments.
Key Features
- Adjustable gibs throughout for precise, consistent axis alignment and fit
- Dual locks on all moveable surfaces for secure workholding and rigidity during cuts
- Heavy-duty spindle brake for rapid stopping of the spindle, improving safety and workflow efficiency
- Precision bored and honed milling head ensures superior spindle accuracy and longevity
- Precision hardened and ground ways and table for smooth, accurate motion and extended wear life
- Three precision ground T-slots provide versatile and secure workpiece fixturing
- Three-stage power downfeed with automatic stop for controlled, repeatable drilling and boring operations
- Two 115V outlets on electrical box dedicated for Powerfeeds only, providing clean, integrated power management
- Ongoing automatic lubrication system for reduced maintenance and consistent performance
- Quick nut spindle feed for fast, convenient quill engagement
- JET exclusive new casting design enables easier machine leveling without lifting the unit off the floor
- Available in NT-40 spindle taper configuration for broad tooling compatibility
- Variable speed control delivering a wide 80 - 3,800 RPM range to suit diverse materials and operations
- ACU-RITE 203 DRO with X & Y Powerfeeds included for precise, repeatable positioning
Specifications
- MPN: JT9-698051
- Stock Number: 698051
- Style / Type: Variable Speed NT40
- Spindle Taper: NST #40
- Motor: 5HP, 230/460V, 3Ph
- Range of Spindle Speeds: 80 - 3,800 RPM
- Spindle Travel: 5 in.
- Quill Diameter: 4-1/8 in.
- Quill Down Feed Rates (IPR): .0015, .003, .008
- Collet Capacity: 1/8 - 1 in.
- Column Width: 14-1/4 in.
- Distance Spindle to Column (Max.): 27-3/4 in.
- Max Distance Spindle to Table: 23 in.
- Saddle Width: 25-5/8 in.
- Number of Axis: 2
- Overall Dimensions (L x W x H): 92-1/8 x 79-7/8 x 104-1/4 in.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle taper does the JET JTM-1254VS use?
- The JTM-1254VS is configured with an NST #40 spindle taper, offering broad compatibility with NT-40 tooling commonly used in professional milling applications.
- What is the spindle speed range on this variable speed mill?
- The JTM-1254VS provides a variable spindle speed range of 80 to 3,800 RPM, allowing the operator to precisely match cutting speed to the material and tooling being used.
- What are the available quill down feed rates?
- The three-stage power downfeed system offers quill down feed rates of .0015, .003, and .008 inches per revolution (IPR), with an automatic stop for controlled, repeatable depth operations.
- Are dedicated power outlets provided for the X & Y Powerfeeds?
- Yes. The electrical box includes two 115V outlets designated exclusively for Powerfeeds, ensuring clean and integrated power management for the ACU-RITE 203 DRO X & Y Powerfeed system.
