Product Features
Product Description

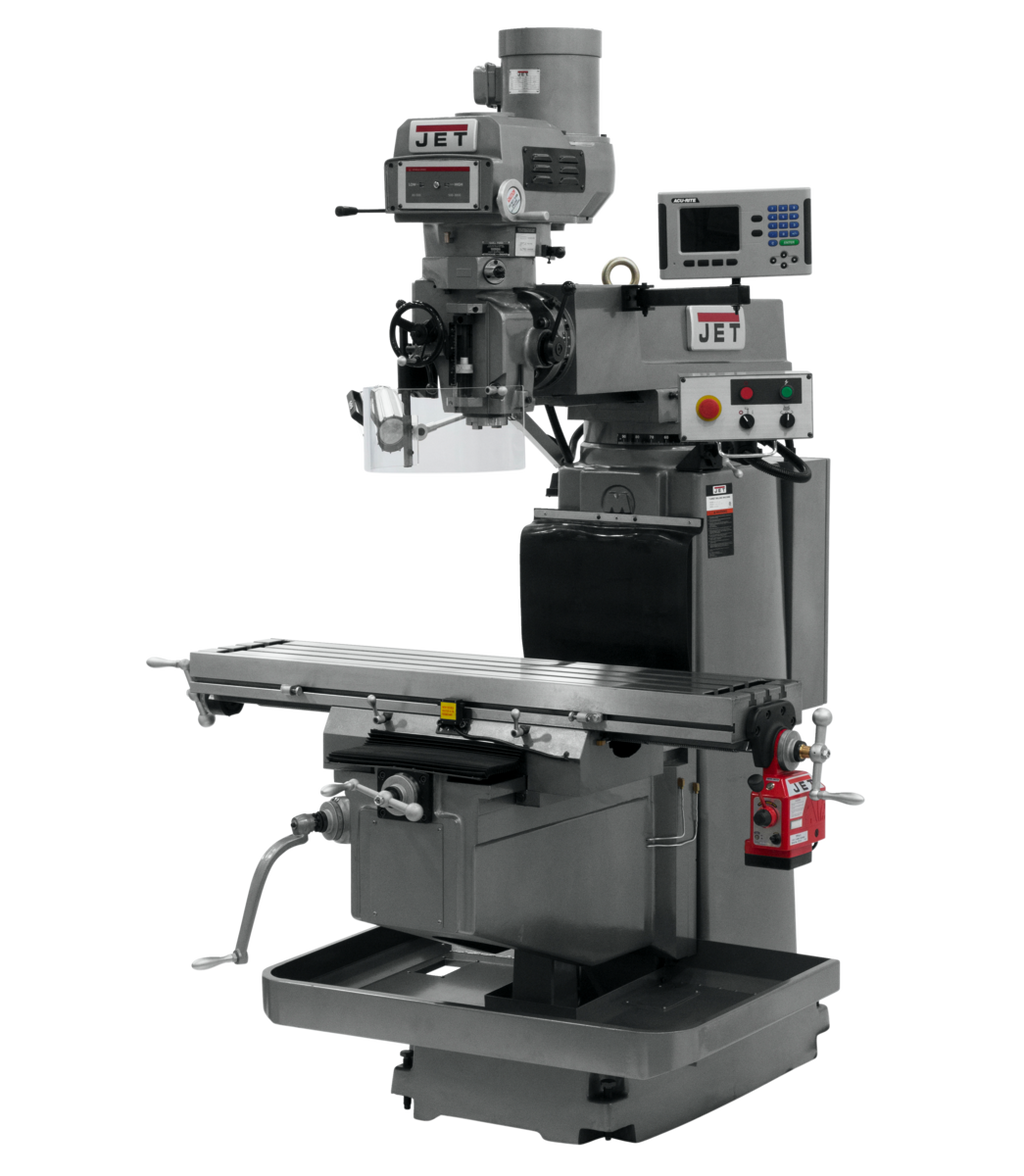

JET JTM-1254VS Variable Speed Vertical Mill with ACU-RITE 203 DRO, X Powerfeed is a professional-grade 12" x 54" vertical milling machine engineered by JET for operators who demand durability, precision, and consistent performance in demanding machining environments. Featuring a variable speed NT40 spindle, integrated ACU-RITE 203 digital readout, and X-axis powerfeed, this mill delivers the accuracy and versatility required for producing high-quality components. Backed by the industry-leading JET Two Year Warranty, the JTM-1254VS is built to meet the rigorous standards of serious machinists and production shops alike.
Key Features
- Adjustable gibs throughout for precise fit and long-term accuracy
- Dual locks on all moveable surfaces for secure, repeatable positioning
- Heavy-duty spindle brake for rapid stopping of the spindle
- Precision bored and honed milling head for superior surface finishes
- Precision hardened and ground ways and table for lasting accuracy and smooth travel
- Three precision ground T-slots with 2-1/2" centers for versatile workholding setups
- Three-stage power downfeed with automatic stop for controlled, repeatable depth passes
- Two 115V outlets on the electrical box dedicated for Powerfeed use
- Variable speed spindle range of 80 - 3,800 RPM to accommodate a wide variety of materials and operations
- 5 HP, 230/460V, 3-Phase motor delivers robust power for heavy-duty cutting
- NST #40 spindle taper with collet capacity from 1/8" to 1"
- Generous 33-7/8" longitudinal table travel and 15-1/3" cross travel for handling large workpieces
- 19-1/4" knee travel and 5" spindle travel provide extensive vertical positioning range
- ACU-RITE 203 DRO included for accurate, real-time axis position readout
- X-axis powerfeed included for smooth, consistent longitudinal table movement
Specifications
- Stock Number: 698049
- Country of Origin: Taiwan
- Style (Type): Variable Speed NT40
- Table Size (L x W): 12 x 54 in.
- Motor: 5HP, 230/460V, 3Ph
- Range of Spindle Speeds: 80 - 3,800 RPM
- Spindle Taper: NST #40
- Collet Capacity: 1/8 - 1 in.
- Quill Diameter: 4-1/8 in.
- Spindle Travel: 5 in.
- Quill Down Feed Rates (IPR): .0015, .003, .008
- Table Longitudinal Travel: 33-7/8 in.
- Table Longitudinal Travel With Powerfeed: 28-1/4 in.
- Table Cross Travel: 15-1/3 in.
- Travel of Knee: 19-1/4 in.
- Max Distance Spindle to Table: 23 in.
- Distance Spindle to Column (Max.): 27-3/4 in.
- Column Width: 14-1/4 in.
- Saddle Width: 25-5/8 in.
- T-Slot Centers: 2-1/2 in.
- Powerfeed: X-Axis
- Number of Axis: 2
- Overall Dimensions (L x W x H): 92-1/8 x 79-7/8 x 104-1/4 in.
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle taper does the JTM-1254VS use, and what collet sizes does it accept?
- The JTM-1254VS uses an NST #40 spindle taper and accepts collets ranging from 1/8" to 1" in capacity, making it compatible with a broad range of tooling for various milling operations.
- What are the available quill down feed rates on this machine?
- The JTM-1254VS offers three-stage power downfeed with quill down feed rates of .0015, .003, and .008 IPR (inches per revolution), along with an automatic stop feature for precise depth control.
- What voltage and phase requirements does the JTM-1254VS motor have?
- The machine is powered by a 5HP motor rated for 230/460V, 3-Phase electrical supply. The two 115V outlets on the electrical box are designated exclusively for powerfeed use.
- How much table travel does the JTM-1254VS provide, and does the X-axis powerfeed affect longitudinal travel?
- The table provides 33-7/8" of longitudinal travel under manual operation. When using the X-axis powerfeed, the effective longitudinal travel is 28-1/4". Cross travel measures 15-1/3", and knee travel reaches 19-1/4" for comprehensive workpiece positioning.
