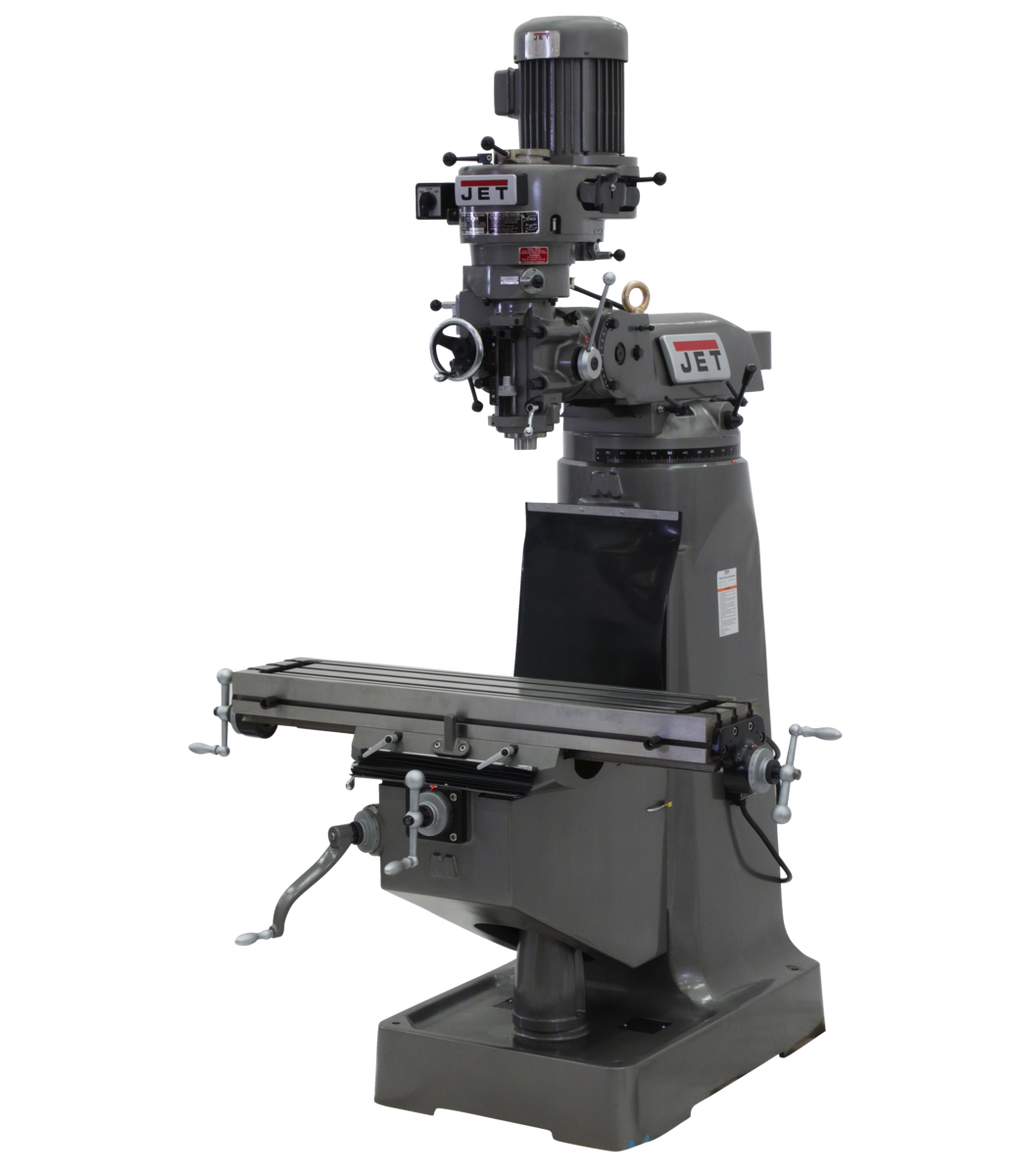

JET JTM-1 Mill with 3-Axis Newall DP500 DRO (Knee) 2 HP, 230V, 3Ph is a precision vertical knee mill engineered for machinists who demand accuracy, durability, and reliable performance in demanding shop environments. Equipped with a 3-axis Newall DP500 digital readout on the knee, this step pulley R-8 mill delivers 16 spindle speeds ranging from 80-5,440 RPM, a generously sized work table, and a suite of precision-engineered features that make it a capable workhorse for milling, drilling, and boring operations. Backed by the industry-leading JET Two Year Warranty, the JTM-1 is built to perform with the consistency and quality that JET precision engineering demands.

Key Features

• Three-stage power down feed with automatic stop for repeatable, controlled depth operations
• High precision Class 7 spindle bearings for smooth, accurate spindle rotation at all speed ranges
• Certified Meehanite castings provide rugged, vibration-dampening stability throughout the machine structure
• Internally cooled spindle head prevents seizing during extended machining operations
• Heavy duty splined motor drive delivers consistent, reliable power transfer to the spindle
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• Large diameter quill is chromed for smooth travel and long-lasting wear resistance
• One shot lubrication system simplifies and streamlines routine machine maintenance
• Precision bored and honed milling head ensures accurate spindle alignment and superior surface finishes
• Precision hardened and ground ways provide smooth, accurate table movement across all axes
• Satin chrome finished dials for easy readability and a professional, long-lasting appearance
• Tolerance test sheet included for documented verification of machine accuracy at time of delivery
• 3-axis Newall DP500 DRO (knee) for precise, real-time positional readout during machining

Specifications

• MPN: JT9-692196
• Stock Number: 692196
• Motor: 2 HP, 230V, 3Ph
• Number of Axis: 3 (Knee)
• Style (Type): Step Pulley R8
• Number of Spindle Speeds: 16
• Range of Spindle Speeds (RPM): 80-5,440
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015-.003-.006
• Collet Capacity: 1/8-7/8
• Table Longitudinal Travel (In.): 23-7/8
• Table Longitudinal Travel With Powerfeed (In.): 20-2/7
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Max Distance Spindle to Table (In.): 17-1/2
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

What's Included

• Tolerance test sheet for documented machine accuracy verification
• 3-axis Newall DP500 DRO (Knee)

Frequently Asked Questions

What spindle taper does the JTM-1 use, and what collet sizes are compatible?

The JTM-1 uses an R-8 spindle taper, which is one of the most widely used tapers in vertical knee milling machines. It accepts collets ranging from 1/8-7/8 inch, giving you broad compatibility with standard tooling.

Does this mill come with a coolant pump?

The mill features an internal coolant tank built into the base that is designed for use with a coolant system; however, the coolant pump is not included and must be purchased separately.

What is the power requirement for the JTM-1 with 3-axis Newall DP500 DRO?

This model is powered by a 2 HP motor running on 230V, 3-phase power. Ensure your shop electrical supply meets these requirements before installation.

How many spindle speeds are available, and what is the speed range?

The JTM-1 offers 16 spindle speeds with a range of 80-5,440 RPM via the step pulley drive system, providing the flexibility to machine a wide variety of materials and operations at optimal cutting speeds.
