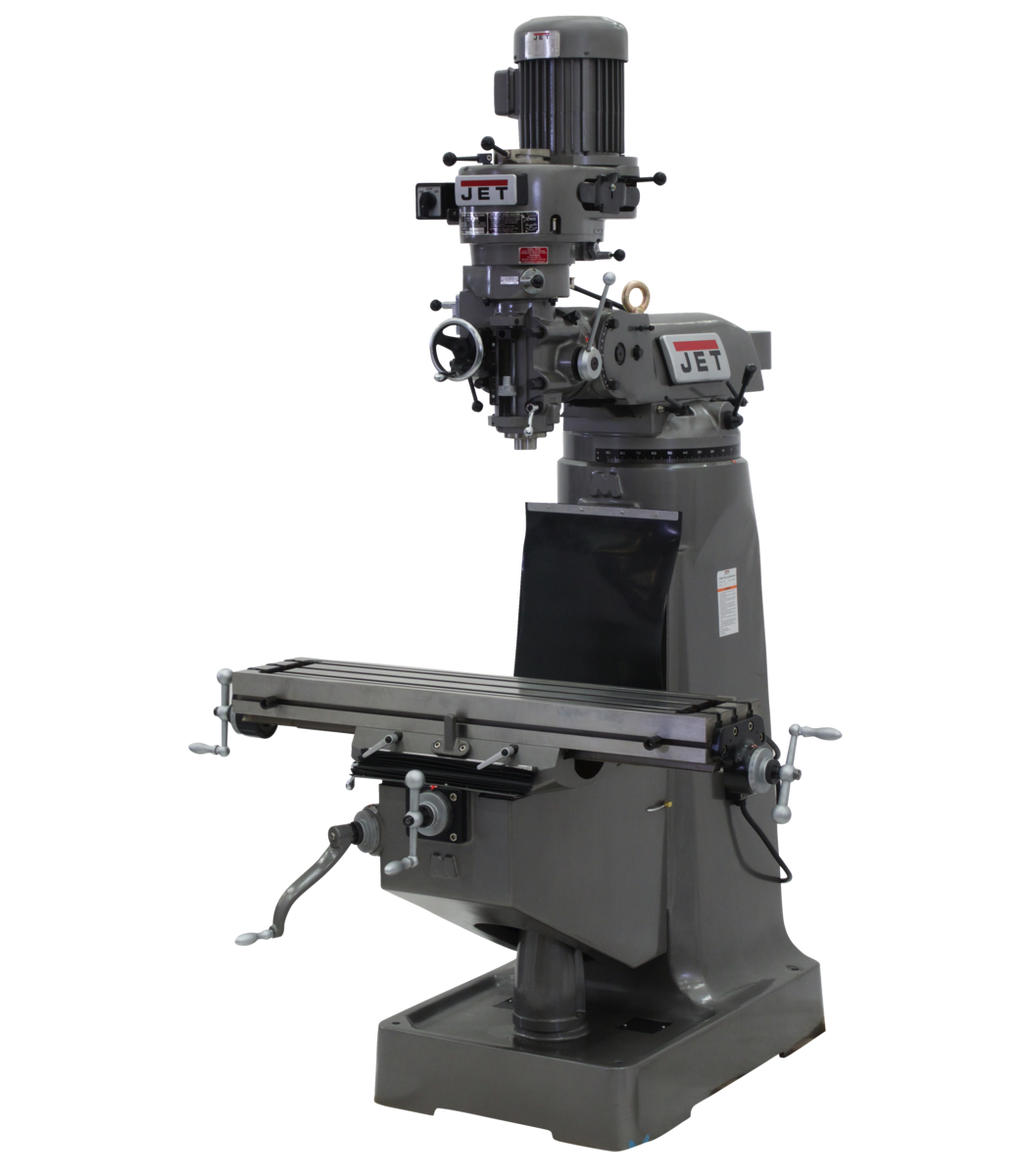

JET JTM-1 Mill with Newall DP500 DRO is a professional-grade vertical milling machine from JET, engineered for machinists and toolmakers who demand accuracy, durability, and long-term reliability in demanding shop environments. Built on Certified Meehanite castings for rugged stability, this mill features a three-stage power down feed with automatic stop, high-precision Class 7 spindle bearings, and an internally cooled spindle head that prevents seizing - delivering superior milling results backed by the industry-leading JET Two Year Warranty.

Key Features

• Heavy duty splined motor drive for reliable, consistent power transmission
• Internal coolant tank built into the base for use with a coolant system (coolant pump not included)
• Large diameter quill is chromed for smooth, precise movement and extended wear life
• One shot lubrication system simplifies maintenance and protects critical wear surfaces
• Precision bored and honed milling head ensures superior spindle accuracy and finish quality
• Precision hardened and ground ways provide lasting accuracy and smooth table travel
• Satin chrome finished dials for clear, easy-to-read measurements during operation
• Tolerance test sheet included for verifiable out-of-box accuracy documentation
• Three-stage power down feed with automatic stop for controlled, repeatable depth passes
• High precision Class 7 spindle bearings for minimal runout and superior surface finishes
• Certified Meehanite castings deliver the rugged stability required for heavy milling operations
• Internally cooled spindle head prevents seizing during extended machining sessions

Specifications

• Stock Number: 692187
• Style (Type): Step Pulley R8
• Motor: 2 HP, 230V, 3Ph
• Number of Spindle Speeds: 16
• Range of Spindle Speeds (RPM): 80-5,440
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015-.003-.006
• Collet Capacity: 1/8-7/8
• Table Size (L x W) (In.): 9 x 42
• Table Longitudinal Travel (In.): 23-7/8
• Table Longitudinal Travel With Powerfeed (In.): 20-2/7
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Max Distance Spindle to Table (In.): 17-1/2
• Number of Axis: 2
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

What's Included

• Tolerance test sheet for documented out-of-box accuracy verification
• Newall DP500 Digital Readout (DRO)

Frequently Asked Questions

What type of spindle taper does the JTM-1 use?

The JTM-1 uses an R-8 spindle taper, which is one of the most common and widely supported tapers in manual milling. It accepts collets ranging from 1/8 to 7/8 inch, providing broad tooling compatibility for a wide variety of milling operations.

Does this mill include a coolant pump?

The JTM-1 features an internal coolant tank built directly into the base, which is designed for use with a coolant system. However, the coolant pump is not included and would need to be sourced separately.

How many spindle speeds are available, and what is the range?

This mill offers 16 spindle speeds with a range of 80-5,440 RPM via a step pulley drive system, allowing the operator to select the appropriate speed for a wide variety of materials and cutting tool diameters.

What lubrication system does the JTM-1 use, and how does it protect the machine?

The JTM-1 is equipped with a one shot lubrication system, which delivers oil to all critical wear points - including the precision hardened and ground ways - with a single pump stroke. This simplifies routine maintenance and helps extend the service life of the machine's precision components.
