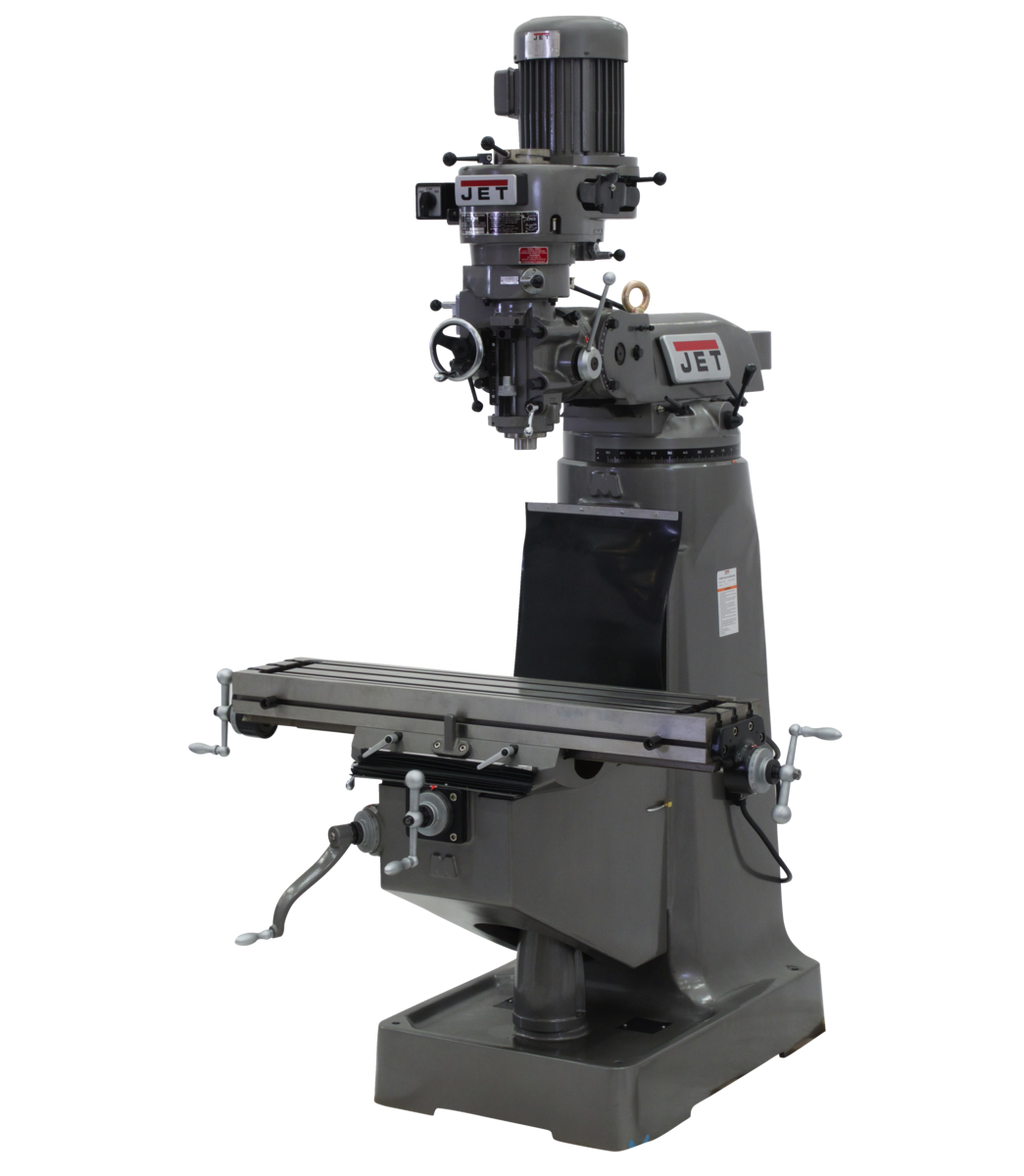

JET JTM-1 Mill with 3-Axis Newall DP500 DRO (Knee) 2 HP, 115/230V, 1Ph is a precision vertical knee mill engineered for machinists and metalworking professionals who demand accuracy, durability, and consistent performance. Backed by the industry-leading JET Two Year Warranty, this step pulley R-8 mill combines certified Meehanite castings, a precision bored and honed milling head, and a 3-axis Newall DP500 DRO on the knee to deliver exceptional rigidity and repeatable results in demanding shop environments.

Key Features

• Certified Meehanite castings provide a rigid, vibration-dampening foundation for superior surface finishes
• Heavy duty splined motor drive delivers consistent, reliable power transfer
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• Large diameter quill is chromed for smooth, precise movement and long service life
• One shot lubrication system simplifies maintenance and extends machine longevity
• Precision bored and honed milling head ensures accurate spindle alignment and superior finish quality
• Precision hardened and ground ways deliver consistent, low-friction travel across all axes
• Spindle head is internally cooled to prevent seizing during extended machining operations
• Three stage power downfeed with automatic stop for controlled, repeatable depth cuts
• Tolerance test sheet included for verified out-of-box precision documentation
• High precision Class 7 spindle bearings for superior runout performance
• 3-axis Newall DP500 DRO (knee) for fast, accurate digital readout positioning

Specifications

• MPN: JT9-692182
• Country of Origin: Taiwan
• Motor: 2 HP, 115/230V, 1Ph
• Style (Type): Step Pulley R8
• Number of Axis: 3 (Knee)
• Number of Spindle Speeds: 8
• Range of Spindle Speeds (RPM): 80-2,720
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015-.003-.006
• Collet Capacity: 1/8-7/8
• Table Size (L x W) (In.): 9 x 42
• Table Longitudinal Travel (In.): 23-7/8
• Table Longitudinal Travel With Powerfeed (In.): 20-2/7
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Travel of Knee (In.): 14-1/2
• Travel of Ram (In.): 13-3/8
• Distance Spindle to Column (Max.) (In.): 19
• Max Distance Spindle to Table (In.): 17-1/2
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Prop 65: Cancer and Reproductive Harm

What's Included

• Tolerance test sheet
• 3-axis Newall DP500 DRO (knee)

Frequently Asked Questions

What spindle taper does the JTM-1 use, and what is the collet capacity range?

The JTM-1 uses an R-8 spindle taper, which is one of the most common and versatile standards in vertical knee milling. The collet capacity ranges from 1/8-7/8 inch, accommodating a wide variety of tooling for different cutting applications.

Does this mill include a coolant pump with the internal coolant tank?

The JTM-1 features an internal coolant tank built into the base for use with a coolant system; however, the coolant pump is not included and must be purchased separately.

What are the available quill down feed rates, and how does the power downfeed work?

The quill offers three stage power downfeed rates of .0015, .003, and .006 inches per revolution (IPR), with an automatic stop feature that allows you to set a precise depth and have the downfeed disengage automatically - ideal for repeatable drilling and boring operations.

How many spindle speeds are available, and what is the RPM range?

The JTM-1 provides 8 spindle speeds with a range of 80-2,720 RPM via its step pulley drive system, giving you the flexibility to match cutting speed to a wide variety of materials and tooling diameters.
