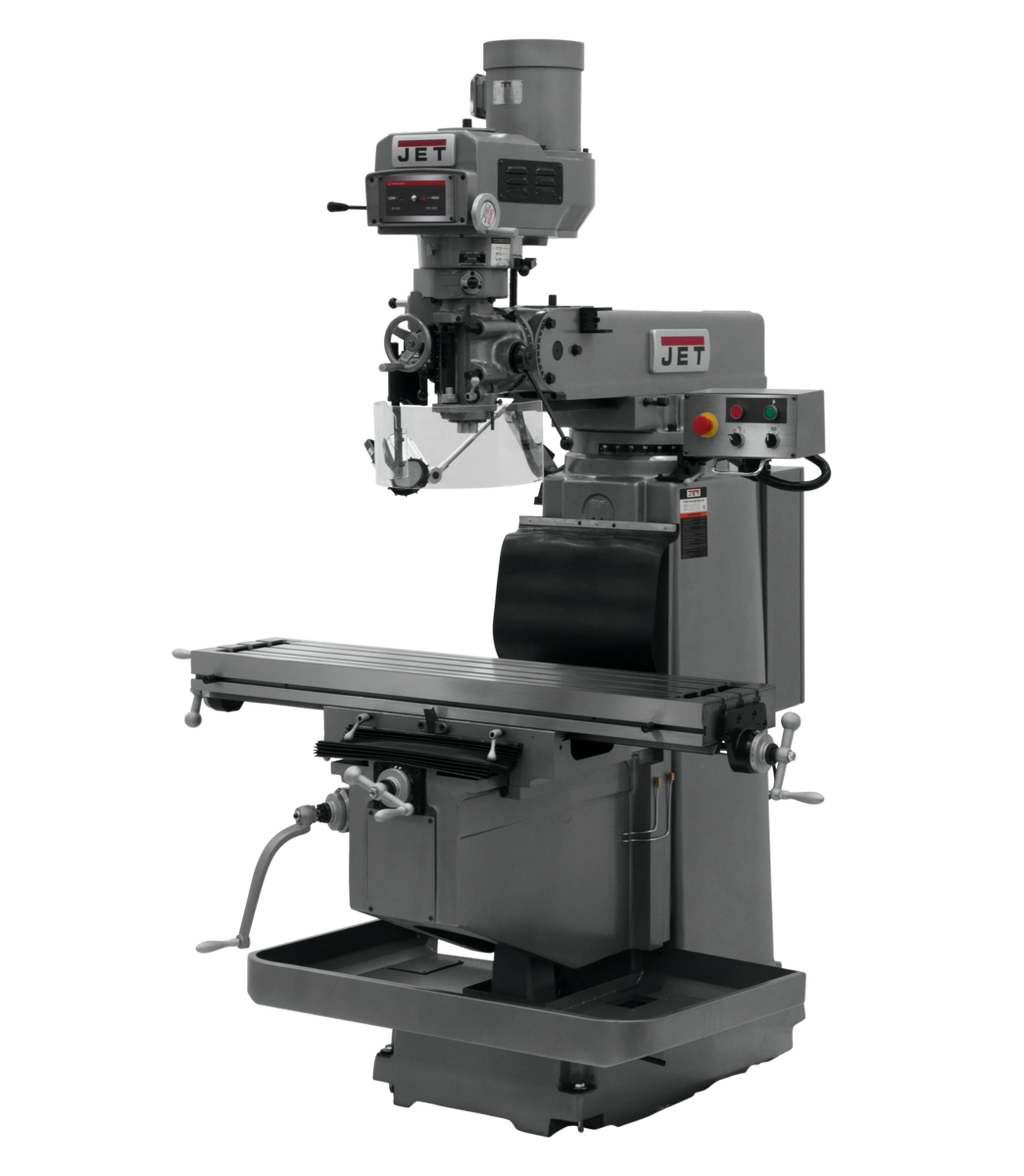

JET JTM-1254RVS Mill with 2-Axis ACU-RITE G-2 MILLPOWER CNC is a precision vertical milling machine from JET that combines robust Meehanite casting construction with a factory-installed 2-axis ACU-RITE G-2 MILLPWR CNC control system. Designed for machinists and manufacturers who demand digital automation and repeatable accuracy, this mill delivers menu-prompted conversational programming alongside full G-code compatibility - making it equally capable for experienced CNC operators and those transitioning from manual milling. Backed by the industry-leading JET Two Year Warranty and CSA/CUS Certified, this machine is built to perform with confidence on demanding production work.

Key Features

• 12.1" High Resolution Display (1024 x 768) with 3D Graphics - A large, vivid screen provides clear visual feedback for programming and operation, with three-dimensional graphics to help visualize toolpaths before cutting begins.
• 3-D Contouring with G-Code Import Capability - The CNC control supports 3-D contouring and can directly import and run G-code files generated by CAD/CAM programs, streamlining the workflow from design to finished part.
• Menu-Prompted Conversational Programming - Easily create part programs, edit, reverse, change, delete, and copy or move steps by following intuitive menu prompts - no complex manual coding required.
• Jog Control for Efficient Table Movement - Allows rapid table movement from one location to another using one axis at a time or any two axes simultaneously for faster setup and positioning.
• Automatic Lubrication Every 180 Minutes - Delivers a flow of 3 - 6cc automatically, reducing maintenance demands and helping extend the life of critical machine components.
• Adjustable Gibs Throughout - Precision adjustable gibs on all slides allow for fine-tuning of fit and smooth movement, maintaining accuracy over long-term use.
• Three Precision Ground T-Slots - The table features three precision ground T-slots with 2-1/2" centers for secure and accurate workholding setups.
• USB and Ethernet Compatible - Modern connectivity options support easy program transfer and integration with shop networking infrastructure.
• Available Offline Software - Programming and simulation can be performed away from the machine, reducing setup time and keeping the mill productive on the shop floor.
• Estimated Run Time Feature - Helps operators plan and manage production schedules by providing projected cycle times before a program is executed.
• Two 115V Outlets on Electrical Box - Dedicated outlets on the electrical box are provided for powerfeeds only, keeping the electrical setup organized and purpose-built.
• Factory-Installed CNC Package - The CNC system comes fully integrated at the factory, ensuring proper calibration and eliminating the complexity of field retrofitting.
• Meehanite Cast Construction - The use of Meehanite casting throughout the machine's structure provides superior vibration damping and rigidity for accurate results every time.
• CSA/CUS Certified - Meets North American safety standards for industrial machinery.
• JET Two Year Warranty - Industry-leading coverage provides long-term peace of mind on this significant capital investment.

Specifications

• MPN: JT9-691943
• Style (Type): CNC
• Motor: 5HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 80 - 3,800
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 4-1/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Column Width (In.): 14-1/4
• Distance Spindle to Column, Max. (In.): 27-3/4
• Max Distance Spindle to Table (In.): 23
• Saddle Width (In.): 25-5/8
• T-Slot Centers (In.): 2-1/2
• T-Slots: Three precision ground T-slots
• Overall Dimensions (L x W x H) (In.): 104-1/4 x 79-7/8 x 92-1/8
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

Can this mill run programs created in CAD/CAM software?

Yes. The ACU-RITE G-2 MILLPWR CNC control supports 3-D contouring and has the ability to import and run G-code files directly from CAD/CAM programs, allowing seamless integration into digital design-to-manufacturing workflows.

Does the CNC system support programming away from the machine?

Yes. Available offline software allows operators to write, edit, and simulate programs on a separate computer, minimizing time spent at the machine during setup and keeping production running more efficiently.

How does the automatic lubrication system work?

The machine features automatic lubrication that activates every 180 minutes, delivering a flow of 3 - 6cc to critical components. This automated system reduces the need for manual lubrication maintenance and helps extend the service life of the mill.

What connectivity options are available for transferring programs to the CNC control?

The CNC control is both USB and Ethernet compatible, providing flexible options for transferring part programs from a computer or network directly to the machine without manual re-entry of code.
