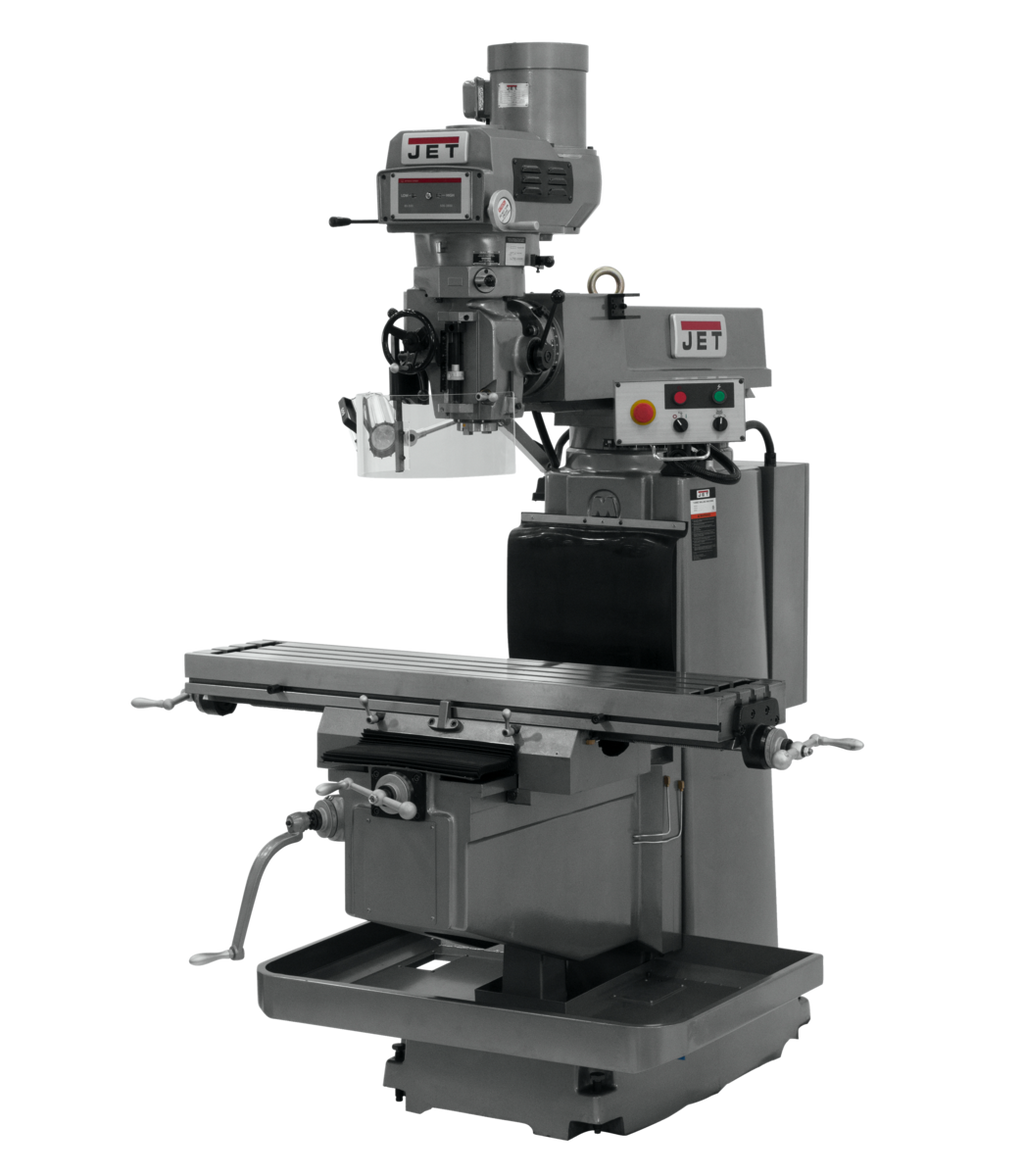

JET JTM-1254VS Mill with 3-Axis ACU-RITE G-2 MILLPOWER CNC is a high-performance vertical milling machine from JET, designed to bring factory-level digital precision and conversational CNC automation to professional machining operations. Featuring a complete, factory-installed 3-axis ACU-RITE G-2 MILLPWR CNC package built on a Meehanite-cast column, this mill delivers accurate, repeatable results across a wide range of metalworking and manufacturing applications. Menu-prompted conversational programming makes it straightforward to create, edit, and execute part programs, while full G-code compatibility opens the door to advanced CAD/CAM-driven production workflows. Backed by the industry-leading JET Two Year Warranty and CSA/CUS certified, this machine is built for serious shop environments demanding both versatility and dependability.

Key Features

• 12.1" high resolution display (1024 x 768) with 3D graphics for clear, detailed program visualization
• 3-D Contouring capability with the ability to import and run G-code files from CAD/CAM programs
• Menu-prompted conversational programming allows users to easily create part programs, edit, reverse, change, delete, and copy or move steps
• Jog Control allows table movement quickly from one location to another - using one axis at a time or any two axes simultaneously
• Estimated run time feature helps operators plan and manage production schedules
• Automatic lubrication every 180 minutes with a flow of 3 - 6cc reduces maintenance demands and extends machine life
• Adjustable gibs throughout for precise fit and long-term accuracy
• Three precision ground T-slots for secure and versatile workholding setups
• Two 115V outlets on the electrical box for Powerfeeds only
• USB + Ethernet compatible for convenient program transfer and connectivity
• Available offline software for program creation and editing away from the machine
• Meehanite-cast construction for rigidity and vibration damping during heavy cuts
• CSA/CUS Certified for safety compliance
• Backed by the industry-leading JET Two Year Warranty

Specifications

• Stock Number: 691941
• Style (Type): CNC
• Motor: 5HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 80 - 3,800
• Spindle Taper: NST #40
• Spindle Travel (In.): 5
• Quill Diameter (In.): 4-1/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Column Width (In.): 14-1/4
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Max Distance Spindle to Table (In.): 23
• Saddle Width (In.): 25-5/8
• T-Slot Centers (In.): 2-1/2
• Overall Dimensions (L x W x H) (In.): 104-1/4 x 79-7/8 x 92-1/8
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

Can this mill run G-code files created in CAD/CAM software?

Yes. The 3-Axis ACU-RITE G-2 MILLPWR CNC system supports 3-D Contouring and has the ability to import and run G-code files from CAD/CAM programs, allowing seamless integration into existing digital design-to-manufacture workflows.

Does the CNC control offer offline programming capability?

Yes. Available offline software allows operators to create and prepare part programs away from the machine, minimizing downtime and keeping the mill in production as much as possible.

What connectivity options does the CNC control support for transferring programs?

The control is USB + Ethernet compatible, providing two convenient methods for transferring program files to and from the machine.

How does the automatic lubrication system work, and how does it reduce maintenance?

The automatic lubrication system activates every 180 minutes with a flow of 3 - 6cc, delivering consistent lubrication to critical components on a timed cycle. This automated approach reduces the need for manual lubrication intervals and helps extend the service life of the machine's moving parts.
