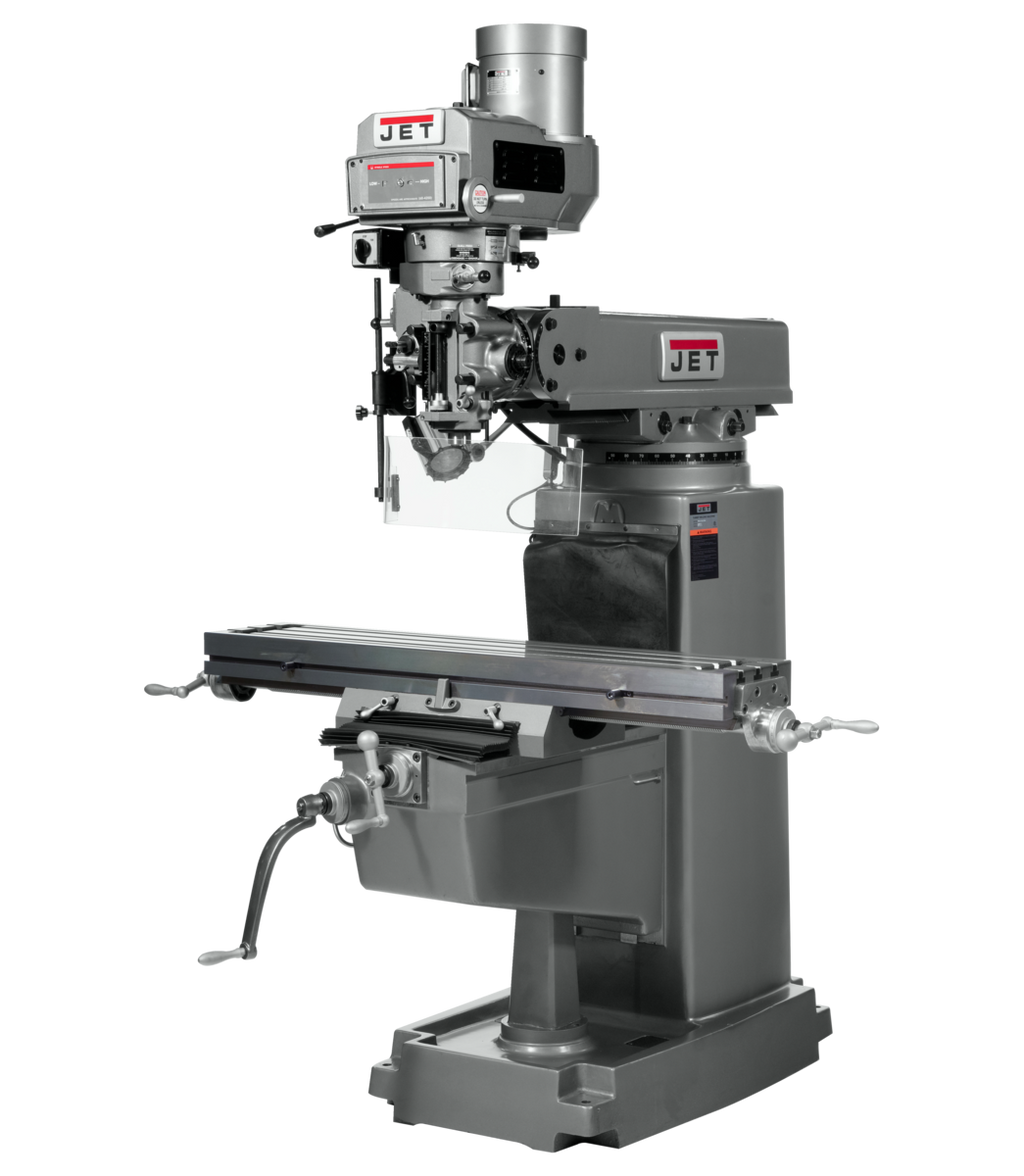

JET JTM-1050VS2 Mill w/3-Axis Newall DP700 DRO (Quill) w/X & Y-Axis Powerfeeds by JET is a professional-grade variable speed vertical milling machine engineered for precision metalworking operations. Built on Certified Meehanite castings with a heavy-duty hardened and ground 10" x 50" table, this mill pairs a 3-axis Newall DP700 digital readout with X and Y-axis powerfeeds to deliver accurate, repeatable results in demanding shop environments. High-precision Class 7 bearings support the spindle, and precision bored and honed milling heads ensure clean, quality cuts on every pass. The three-stage power downfeed with automatic stop and a wide variable spindle speed range of 70 - 3,800 RPM make this machine exceptionally versatile, while the industry-leading JET Two Year Warranty provides confidence in every investment.

Key Features

• Certified Meehanite castings provide a rigid, vibration-dampening foundation for superior accuracy
• Heavy-duty hardened and ground 10" x 50" table delivers a stable, precision work surface
• High-precision Class 7 bearings support the spindle for minimal runout and long service life
• Precision bored and honed milling head ensures quality, repeatable cuts
• Three-stage power downfeed with automatic stop for efficient and controlled quill operation
• 3-axis Newall DP700 DRO (Quill) with X and Y-axis powerfeeds for precise, programmable positioning
• Variable spindle speed range of 70 - 3,800 RPM accommodates a wide variety of materials and operations
• Adjustable gibs throughout for fine-tuned slide and way alignment
• Chrome lead screws on X and Y axis for smooth, accurate table travel and extended wear life
• Chrome-plated motor shaft with bearing support at end for enhanced durability and reduced flex
• Hardened and ground square vertical knee ways and cross ways for precise, long-lasting movement
• Heavy duty motor drive rated at 3 HP, 230/460V, 3-Phase for robust cutting performance
• Internal coolant tank built into base for use with coolant system
• Large diameter quill is chromed for smooth travel and corrosion resistance
• One shot lubrication system for quick, thorough way lubrication
• Spindle head is internally cooled to maintain consistent operating temperatures
• Tolerance test sheet included for verified out-of-box accuracy
• Backed by the industry-leading JET Two Year Warranty

Specifications

• MPN: JT9-691209
• Stock Number: 691209
• Country of Origin: Taiwan
• Style (Type): Variable Speed R8
• Motor: 3 HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 70 - 3,800
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Number of Axis: 3 (Quill)
• Powerfeed: X and Y-Axis
• Collet Capacity: 1/8 - 7/8
• Table Longitudinal Travel (In.): 35
• Table Longitudinal Travel With Powerfeed (In.): 29-3/4
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column - Max. (In.): 26
• Max Distance Spindle to Table (In.): 19
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Prop 65: Cancer and Reproductive Harm

What's Included

• JET JTM-1050VS2 Variable Speed Milling Machine
• 3-Axis Newall DP700 DRO (Quill)
• X and Y-Axis Powerfeeds
• Tolerance test sheet

Frequently Asked Questions

What spindle taper does the JET JTM-1050VS2 use?

The JTM-1050VS2 uses an R-8 spindle taper, one of the most common standards in vertical milling machines, accepting collets with a capacity range of 1/8 to 7/8 inch.

Does this mill include a digital readout (DRO) and powerfeeds?

Yes. This configuration includes a 3-axis Newall DP700 DRO on the Quill axis, as well as powerfeeds on both the X and Y axes for precise, repeatable table positioning.

Is a coolant system included with this machine?

The machine features an internal coolant tank built into the base for use with a coolant system; however, the coolant pump is not included and must be sourced separately.

What warranty is provided with the JET JTM-1050VS2?

The JET JTM-1050VS2 is backed by the industry-leading JET Two Year Warranty, providing coverage and peace of mind for professional shop use.
