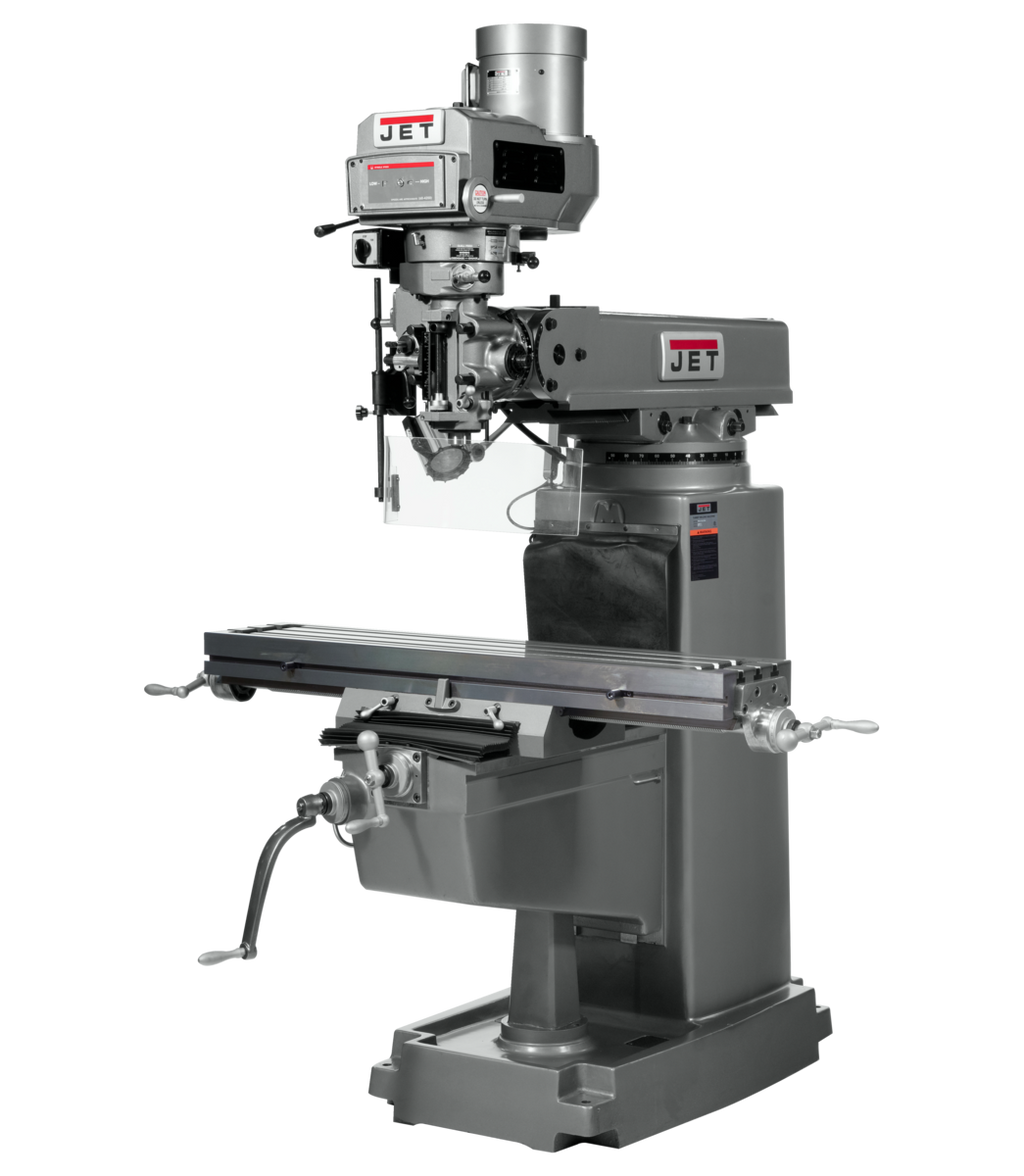

JET JTM-1050VS2 Mill with 3-Axis Newall DP700 DRO (Quill) and X-Axis Powerfeed is a professional-grade variable speed vertical milling machine engineered by JET for demanding metal removal applications. Featuring Certified Meehanite castings, a hardened and ground 10" x 50" table, and high precision Class 7 bearings supporting the spindle, this mill delivers the accuracy and durability that serious machinists require. The integrated 3-Axis Newall DP700 DRO with quill readout and X-Axis Powerfeed further streamline setup and operation, backed by the industry-leading JET Two Year Warranty.

Key Features

• Certified Meehanite castings provide exceptional rigidity and vibration damping for superior surface finishes
• Hardened and ground 10" x 50" table with hardened and ground square vertical knee ways and cross ways for precise, repeatable positioning
• High precision Class 7 bearings support the spindle for reduced runout and extended tool life
• Precision bored and honed milling head ensures consistent, accurate cuts
• Variable spindle speed range of 70 - 3,800 RPM provides versatility across a wide range of materials and operations
• Three-stage power downfeed with automatic stop for controlled, repeatable quill depth operations
• Large diameter chromed quill (3-3/8") for smooth, precise quill movement
• Chrome lead screws on X and Y axis for reduced wear and consistent feed accuracy
• Chrome-plated motor shaft with bearing support at end for enhanced drive stability
• Adjustable gibs throughout for precise fit and long-term accuracy maintenance
• Heavy duty motor drive - 3 HP, 230/460V, 3-Phase
• One shot lubrication system simplifies maintenance and protects critical wear surfaces
• Spindle head is internally cooled to maintain consistent operating temperatures
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• 3-Axis Newall DP700 DRO with quill readout and X-Axis Powerfeed for streamlined, efficient milling operations
• Tolerance test sheet included to verify out-of-box precision

Specifications

• MPN: JT9-691208
• Style (Type): Variable Speed R8
• Motor: 3 HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 70 - 3,800
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Number of Axis: 3 (Quill)
• Powerfeed: X-Axis
• Table Longitudinal Travel (In.): 35
• Table Longitudinal Travel With Powerfeed (In.): 29-3/4
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column, Max. (In.): 26
• Max Distance Spindle to Table (In.): 19
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

What's Included

• JET JTM-1050VS2 Variable Speed Vertical Milling Machine
• 3-Axis Newall DP700 DRO (Quill)
• X-Axis Powerfeed
• Tolerance test sheet

Frequently Asked Questions

What spindle taper does the JTM-1050VS2 use, and what collet sizes are compatible?

The JTM-1050VS2 uses an R-8 spindle taper, which is one of the most widely used standards in vertical milling. Compatible collet sizes range from 1/8" to 7/8", accommodating a broad selection of tooling for various milling and drilling operations.

Does this mill include a coolant pump with the internal coolant tank?

The machine features an internal coolant tank built into the base for use with a coolant system; however, the coolant pump is not included and must be purchased separately.

What is the variable speed range of the spindle, and how is the speed adjusted?

The spindle operates across a variable speed range of 70 to 3,800 RPM, providing the flexibility needed for a wide variety of materials and cutting operations. The variable speed design allows the operator to dial in the optimal RPM for each specific application without changing belts or gears.

What does the one shot lubrication system cover, and why is it beneficial?

The one shot lubrication system delivers oil to critical wear surfaces throughout the machine with a single action, simplifying routine maintenance and helping to extend the service life of the ways, screws, and other precision components. This reduces the time required for upkeep while ensuring consistent lubrication coverage.
