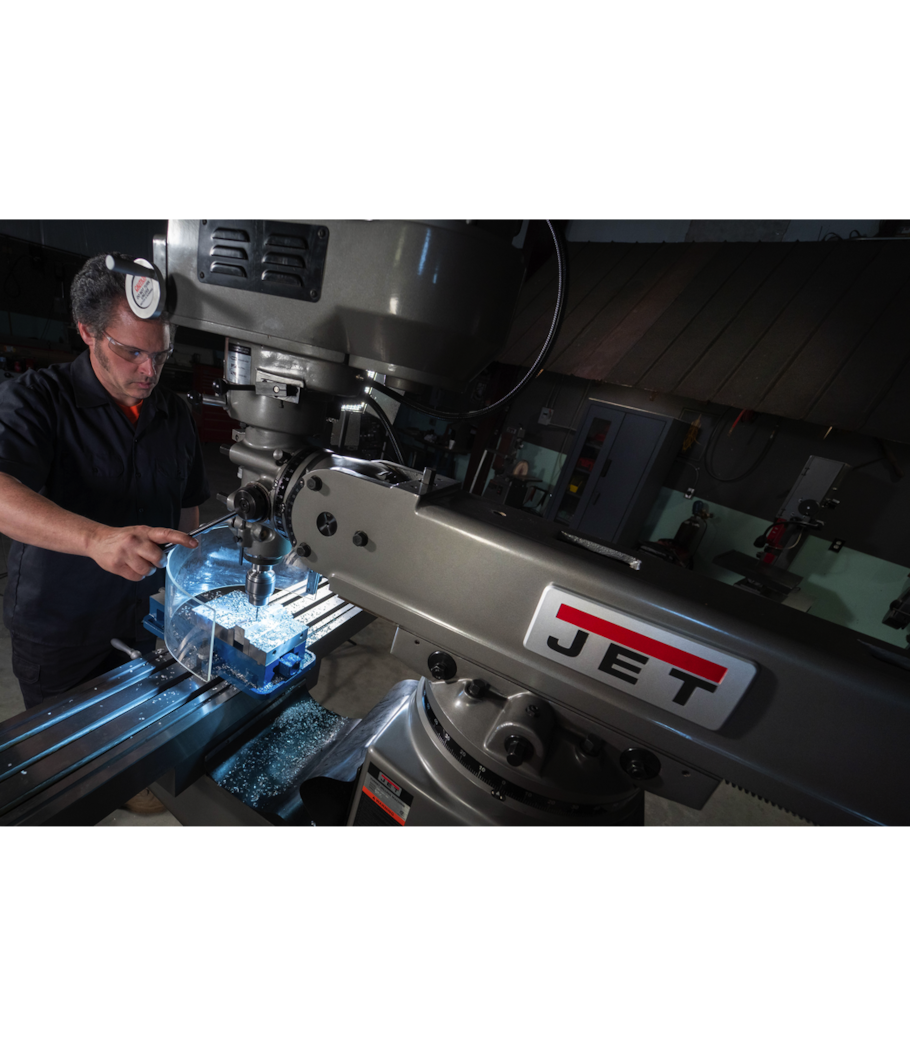

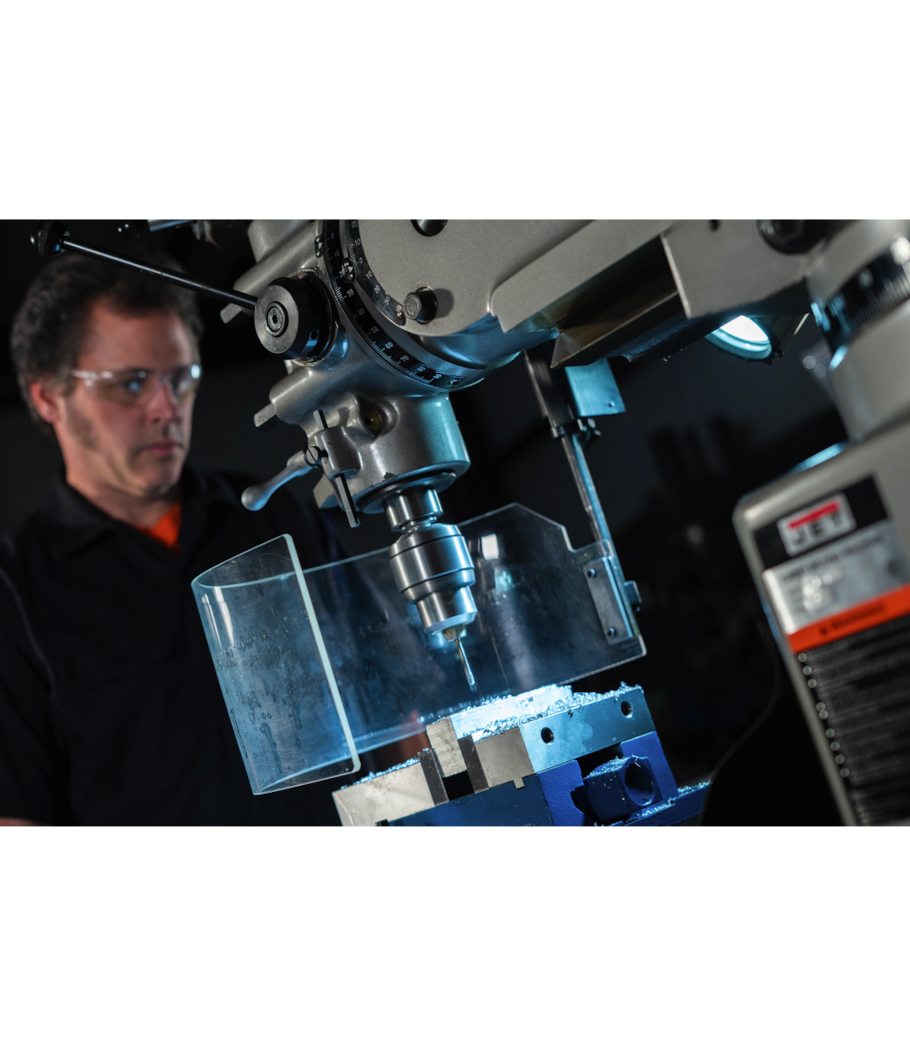

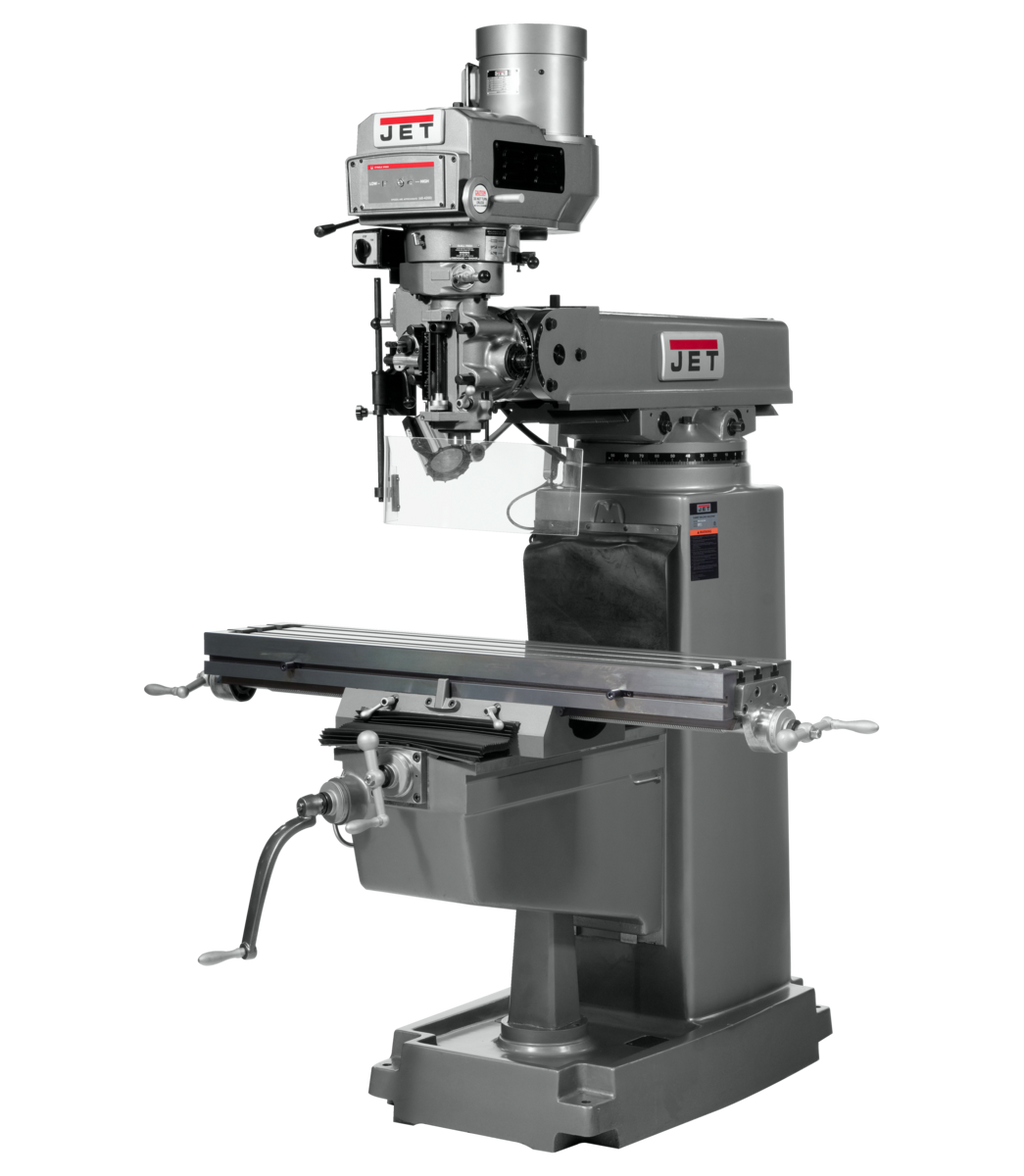

JET JTM-1050VS2 Mill with Newall DP700 DRO with X-Axis Powerfeed is a professional-grade variable speed vertical milling machine from JET, engineered for precision machining operations in demanding shop environments. Built on Certified Meehanite castings with a hardened and ground 10" x 50" table, this mill delivers exceptional rigidity and accuracy for milling, drilling, and boring applications. The integrated Newall DP700 Digital Readout and X-Axis Powerfeed combination elevates productivity by providing precise positional feedback and effortless table movement, making this machine a powerful centerpiece for professional machinists seeking consistent, repeatable results.

Key Features

• Certified Meehanite castings provide a rigid, vibration-dampening foundation for precise, chatter-free cuts
• Hardened and ground 10" x 50" table ensures a flat, durable work surface for accurate workpiece positioning
• Adjustable gibs throughout allow for fine-tuning of all sliding surfaces to maintain tight tolerances over the machine's lifetime
• Chrome lead screws on X and Y axis resist wear and corrosion for long-lasting smooth movement and accurate positioning
• Chrome-plated motor shaft with bearing support at end enhances durability and reduces deflection under load
• Hardened and ground square vertical knee ways deliver precise, stable knee travel
• Heavy duty motor drive provides reliable 3 HP power for demanding cuts across a wide range of materials
• Large diameter chromed quill (3-3/8") offers strength and wear resistance for consistent spindle performance
• High precision Class 7 bearings support the spindle for smooth, accurate rotation across the full speed range of 70 - 3,800 RPM
• Precision bored and honed milling head ensures quality, repeatable cuts with minimal runout
• Three-stage power downfeed with automatic stop simplifies drilling and boring operations
• Spindle head is internally cooled to reduce heat buildup and lower maintenance requirements
• One shot lubrication system makes it fast and easy to lubricate all critical machine ways and components
• Internal coolant tank built into the base for use with a coolant system (coolant pump not included)
• Newall DP700 DRO provides accurate digital position readout for all machining axes
• X-Axis Powerfeed automates table travel for improved finish quality and reduced operator fatigue
• Tolerance test sheet included to verify machine accuracy right out of the crate
• Backed by the industry-leading JET Two Year Warranty; CSA/CUS Certified

Specifications

• Stock Number: 691205
• Style (Type): Variable Speed R8
• Motor: 3 HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 70 - 3,800
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Max.) (In.): 26
• Max Distance Spindle to Table (In.): 19
• Number of Axis: 2
• Powerfeed: X-Axis
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

What's Included

• JET JTM-1050VS2 Variable Speed Vertical Milling Machine
• Newall DP700 Digital Readout (DRO)
• X-Axis Powerfeed
• Tolerance test sheet

Frequently Asked Questions

What spindle taper does the JET JTM-1050VS2 use?

The JTM-1050VS2 uses an R-8 spindle taper, which is the industry-standard taper for Bridgeport-style vertical mills. It accepts collets in the range of 1/8" to 7/8", making it compatible with a wide variety of tooling.

Does this mill include a coolant pump?

The JTM-1050VS2 features an internal coolant tank built into the base for use with a coolant system; however, the coolant pump is not included with the machine and must be purchased separately.

What power supply is required to run the JTM-1050VS2?

This machine is powered by a 3 HP motor requiring 230/460V, 3-Phase electrical service. Ensure your shop has the appropriate three-phase power supply and proper wiring before installation.

How does the one shot lubrication system benefit the operator?

The one shot lubrication system allows the operator to lubricate all critical ways and components simultaneously with a single pump stroke, saving time during routine maintenance and helping to ensure consistent lubrication for long machine life and accurate performance.
