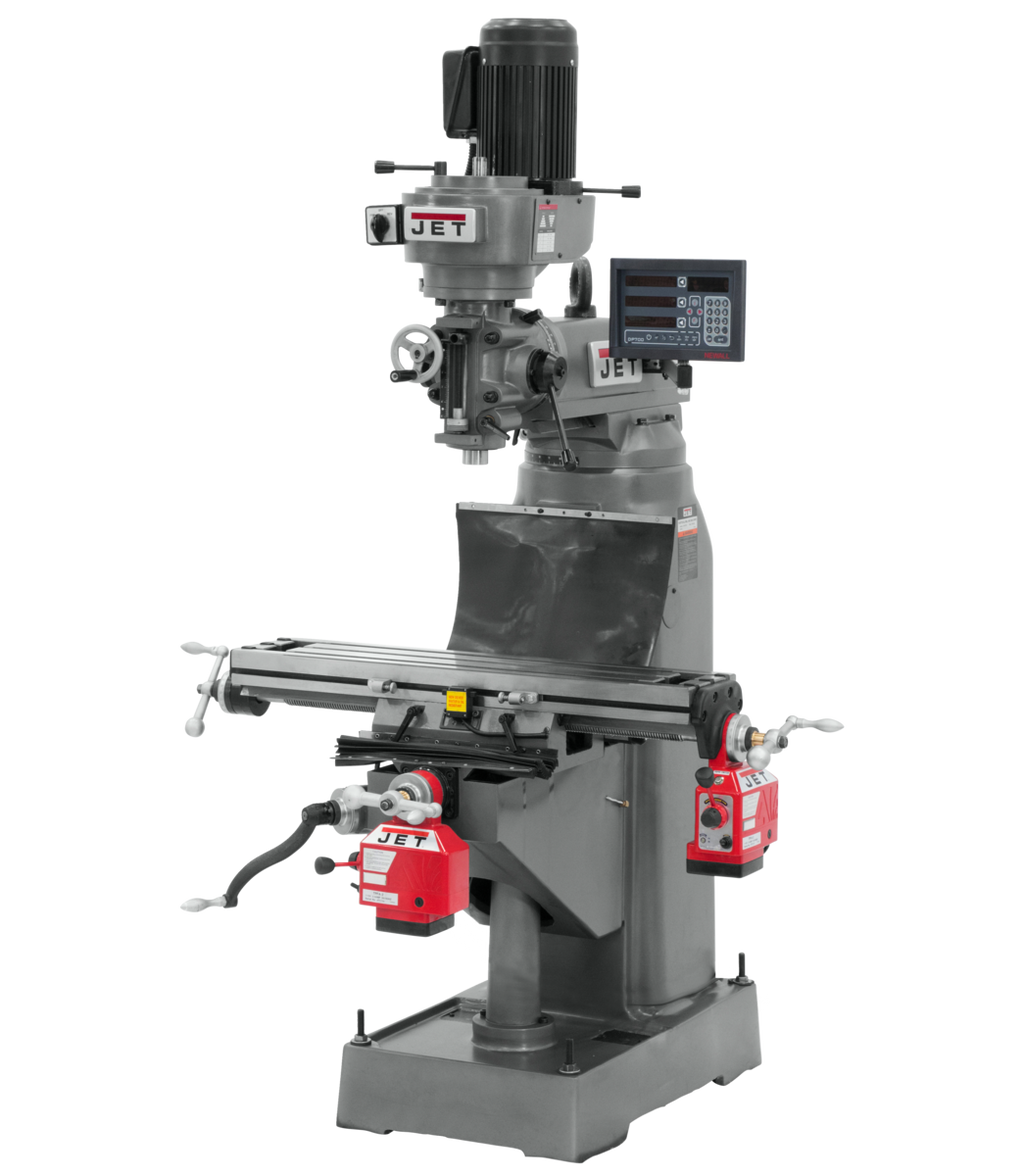

JET JVM-836-3 Mill with Newall DP700 DRO with X and Y-Axis Powerfeeds is a professional-grade vertical milling machine from JET, engineered for machinists and fabricators who demand repeatable accuracy and reliable performance. Equipped with a Newall DP700 Digital Readout and X and Y-Axis powerfeeds, this step pulley R8 mill delivers the precision control and operational efficiency required for demanding milling work. Backed by the industry-leading JET Two Year Warranty, the JVM-836-3 is built to retain tight tolerances across a wide range of metalworking applications.

Key Features

• Precision bored and honed milling head ensures accurate, consistent cuts and long-term retention of tolerances
• Hardened and ground precision table provides a stable, wear-resistant work surface
• Precision ground dovetail ways deliver smooth, accurate movement along all travel axes
• High precision spindle bearings support accurate, vibration-reduced spindle performance
• Large diameter quill is chromed for enhanced durability and smooth travel
• One shot lubrication system simplifies maintenance and extends the life of critical components
• Head tilts left or right for versatile angular milling operations
• Graduated scale on column allows quick, accurate knee height reference
• Locks on all moving surfaces increase user safety during operation
• Newall DP700 DRO provides real-time digital positioning feedback for improved accuracy and efficiency
• X and Y-Axis powerfeeds reduce operator fatigue and improve feed consistency
• 10 spindle speeds ranging from 120 to 1,550 RPM accommodate a wide variety of materials and tooling
• 500 lb. work table weight capacity supports heavy workpieces with confidence

Specifications

• Stock Number: 691183
• MPN: JT9-691183
• Style (Type): Step Pulley R8
• Motor: 1-1/2 HP, 230V Only, 3Ph
• Number of Spindle Speeds: 10
• Range of Spindle Speeds (RPM): 120 - 1,550
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Table Size (L x W) (In.): 7-7/8 x 35-3/4
• Table Longitudinal Travel (In.): 22-1/4
• Table Longitudinal Travel With Powerfeed (In.): 18
• Table Cross Travel (In.): 9-1/2
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 500
• Distance Spindle to Column (Max.) (In.): 15-3/4
• Max Distance Spindle to Table (In.): 13-3/4
• Travel of Knee (In.): 14
• Travel of Ram (In.): 10-1/2
• Number of Axis: 2
• Powerfeed: X and Y-Axis
• Overall Dimensions (L x W x H) (In.): 55 x 52 x 78
• Weight (Lbs.): 1610
• Country of Origin: China
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What type of spindle taper does the JET JVM-836-3 use?

The JVM-836-3 uses an R-8 spindle taper, a widely adopted standard in vertical milling that provides broad compatibility with R-8 collets, end mill holders, and other tooling. The collet capacity ranges from 1/8 to 7/8 inch.

What power supply is required to operate this mill?

This machine requires 230V, 3-Phase power. The motor is rated at 1-1/2 HP. It is important to confirm that your facility has the appropriate electrical supply before installation.

Does the head on the JVM-836-3 tilt, and how does that benefit the user?

Yes, the milling head tilts left or right, allowing the operator to perform angular milling operations without repositioning the workpiece. This versatility is especially useful when machining compound angles or angled features on a part.

How does the one shot lubrication system work on this machine?

The one shot lubrication system delivers oil to critical moving components - including the precision ground dovetail ways - with a single pump action. This simplifies the lubrication process, helps ensure all wear surfaces are properly protected, and reduces the time required for routine maintenance.
