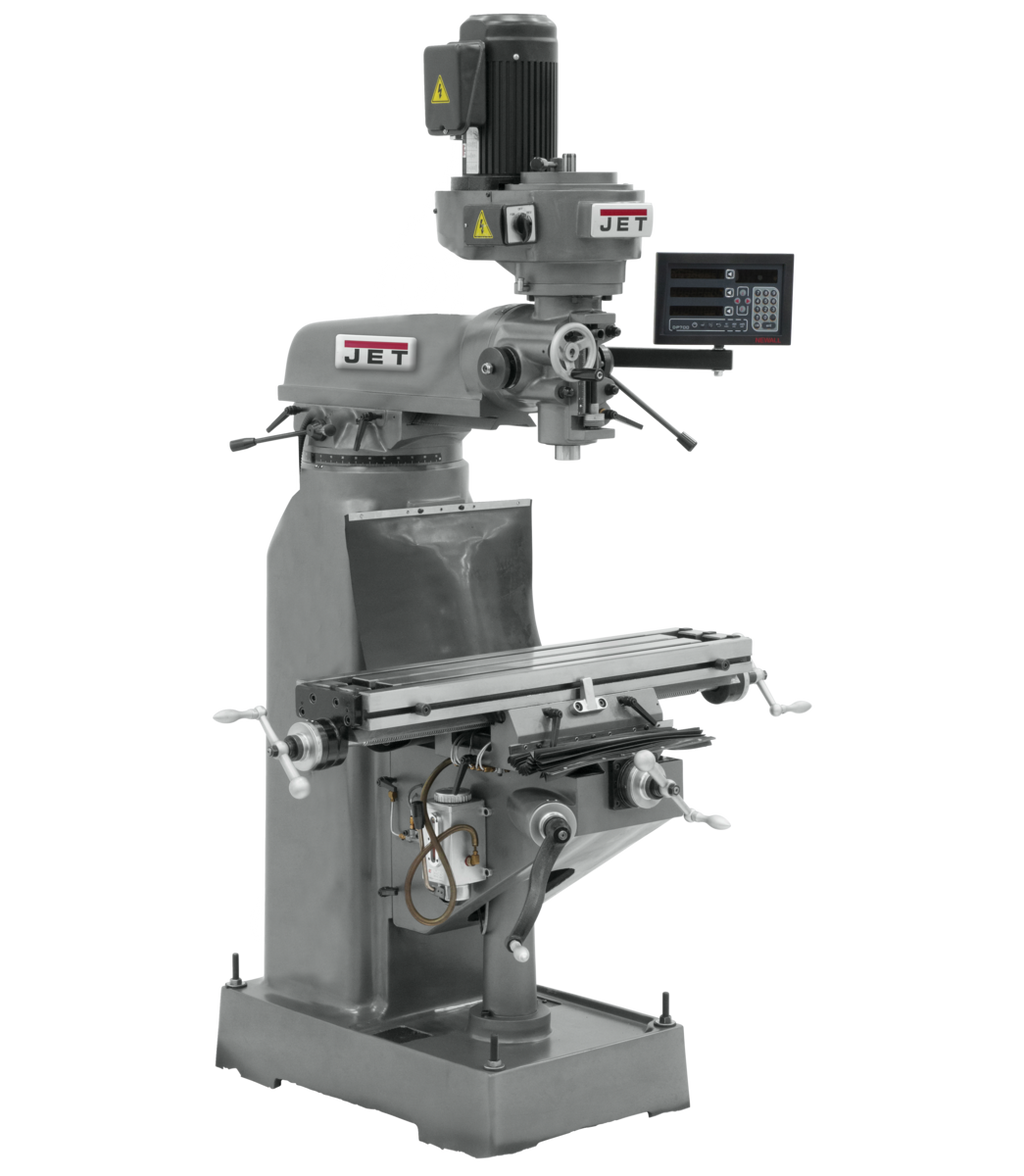

JET JVM-836-3 Mill with DP700-DRO with X-Axis Powerfeed is a professional-grade vertical milling machine from JET, engineered for machinists and production environments that demand consistent precision and reliable performance. Built around a precision bored and honed milling head and a hardened and ground table, this 3-phase mill combines a DP700 digital readout with X-axis powerfeed capability, delivering the accuracy and workflow efficiency required for demanding milling operations. Backed by the industry-leading JET Two Year Warranty, this machine is designed to retain tolerances over the long haul while locks on all moving surfaces keep operators safe during use.

Key Features

• Precision bored and honed milling head ensures accurate, repeatable cuts and long-term tolerance retention
• Hardened and ground precision table provides a stable, wear-resistant work surface for consistent results
• Precision ground dovetail ways deliver smooth, accurate movement across all axes
• High precision spindle bearings support demanding cutting operations with minimal runout
• Large diameter quill is chromed for enhanced durability and smooth travel
• One shot lubrication system simplifies maintenance and helps extend the service life of critical components
• Head tilts left or right, allowing angled milling operations without repositioning the workpiece
• Graduated scale on column provides quick, easy vertical positioning reference
• X-axis powerfeed reduces operator fatigue during longitudinal table passes
• DP700 digital readout (DRO) for precise, at-a-glance positional feedback
• 10 spindle speeds ranging from 120 to 1,550 RPM via step pulley configuration for versatility across materials
• R-8 spindle taper is a widely compatible, industry-standard tooling interface
• Accepts collets from 1/8" to 7/8" for broad tooling flexibility
• 500 lb. work table weight capacity supports heavy workpieces and fixtures
• Locks on all moving surfaces enhance user safety during operation

Specifications

• MPN: JT9-691180
• Stock Number: 691180
• Style (Type): Step Pulley R8
• Motor: 1-1/2 HP, 230V Only, 3Ph
• Number of Spindle Speeds: 10
• Range of Spindle Speeds (RPM): 120 - 1,550
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Table Size (L x W) (In.): 7-7/8 x 35-3/4
• Table Longitudinal Travel (In.): 22-1/4
• Table Longitudinal Travel With Powerfeed (In.): 18
• Table Cross Travel (In.): 9-1/2
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 500
• Travel of Knee (In.): 14
• Travel of Ram (In.): 10-1/2
• Distance Spindle to Column (Max.) (In.): 15-3/4
• Max Distance Spindle to Table (In.): 13-3/4
• Powerfeed: X-Axis
• Number of Axis: 2
• Overall Dimensions (L x W x H) (In.): 55 x 52 x 78
• Weight (Lbs.): 1610
• Country of Origin: China
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What voltage and phase requirements does the JET JVM-836-3 require?

This mill is powered by a 1-1/2 HP motor that operates on 230V only, 3-phase power. It is not compatible with single-phase electrical service, so a 3-phase supply or phase converter must be available at the installation site before use.

What is the spindle taper on the JVM-836-3, and what collet sizes does it accept?

The JVM-836-3 features an R-8 spindle taper, which is one of the most widely used and tooling-compatible standards in manual milling. It accepts collets ranging from 1/8" to 7/8", providing broad compatibility with end mills, drill chucks, boring heads, and other common tooling.

How does the X-axis powerfeed affect the table's longitudinal travel?

When the X-axis powerfeed is engaged, the effective table longitudinal travel is 18 inches. Without the powerfeed, the full manual longitudinal travel extends to 22-1/4 inches. The powerfeed reduces operator fatigue during repetitive or extended longitudinal passes.

Can the milling head be tilted for angled operations?

Yes. The head on the JVM-836-3 tilts both left and right, allowing the operator to perform angled or compound milling operations without having to reposition or re-fixture the workpiece. This adds versatility for tasks such as dovetails, chamfers, and angular face milling.

Note: This product is subject to Proposition 65 warnings for Cancer and Reproductive Harm.
