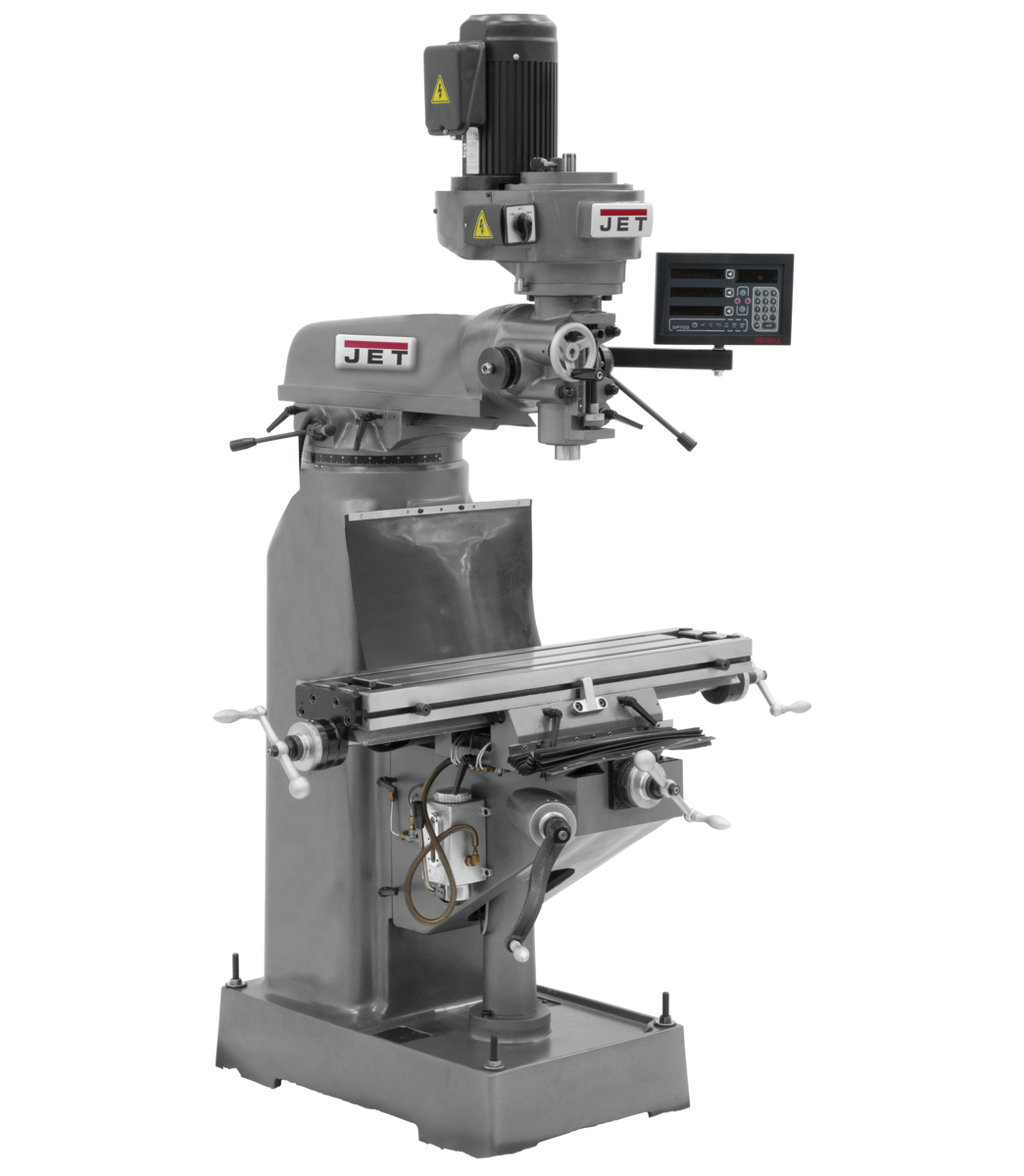

JET JVM-836-1 Mill with 3-Axis Newall DP700 DRO (Quill) and X-Axis Powerfeed is a professional-grade vertical milling machine from JET engineered for machinists and fabricators who demand accuracy, repeatability, and productivity in demanding shop environments. Equipped with a 3-axis Newall DP700 digital readout on the quill and an X-axis powerfeed, this mill combines precision mechanical construction with modern digital control to streamline complex milling, drilling, and boring operations.

Key Features

• Precision bored and honed milling head ensures tight tolerances and consistent surface quality
• Hardened and ground precision table provides a stable, wear-resistant work surface built to maintain accuracy over years of use
• Precision ground dovetail ways deliver smooth, controlled movement and long-term rigidity across all axes
• High precision spindle bearings minimize runout and support demanding cutting operations at all speed ranges
• Large diameter chromed quill resists wear and corrosion for extended service life
• One shot lubrication system simplifies maintenance and ensures all critical surfaces receive consistent lubrication
• Head tilts left or right to accommodate angular milling and compound setups
• Graduated scale on column allows quick, repeatable vertical positioning
• 3-axis Newall DP700 DRO on the quill delivers real-time digital position readout for fast, accurate setups
• X-axis powerfeed automates longitudinal table travel to improve surface finish and reduce operator fatigue
• Backed by the industry-leading JET Two Year Warranty

Specifications

• MPN: JT9-691177
• Stock Number: 691177
• Style (Type): Step Pulley R8
• Motor: 1-1/2 HP, 115/230V, 1Ph
• Spindle Taper: R-8
• Number of Spindle Speeds: 5
• Range of Spindle Speeds (RPM): 240 - 1,550
• Collet Capacity: 1/8 - 7/8
• Quill Diameter (In.): 3-3/8
• Spindle Travel (In.): 5
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Number of Axis: 3 (Quill)
• Powerfeed: X-Axis
• Table Size (L x W) (In.): 7-7/8 x 35-3/4
• Table Longitudinal Travel (In.): 22-1/4
• Table Longitudinal Travel With Powerfeed (In.): 18
• Table Cross Travel (In.): 9-1/2
• Travel of Knee (In.): 14
• Travel of Ram (In.): 10-1/2
• Distance Spindle to Column (Max.) (In.): 15-3/4
• Max Distance Spindle to Table (In.): 13-3/4
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 500
• Overall Dimensions (L x W x H) (In.): 55 x 52 x 78
• Weight (Lbs.): 1617
• Country of Origin: China
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What type of digital readout is included with this mill?

This mill comes equipped with a 3-axis Newall DP700 DRO configured for the quill, providing real-time digital position readouts that make precise setups faster and more repeatable compared to relying on manual graduated dials alone.

What spindle taper does the JVM-836-1 use, and what collet sizes are compatible?

The JVM-836-1 uses an R-8 spindle taper, which is one of the most common and widely supported tapers in manual vertical milling. It accepts collets ranging from 1/8 to 7/8 inch.

What are the available spindle speeds on this mill?

The mill offers 5 spindle speeds ranging from 240 to 1,550 RPM via a step pulley drive system, allowing the operator to select the appropriate speed for various materials and cutting tool diameters.

How does the X-axis powerfeed affect the table's longitudinal travel range?

The table offers 22-1/4 inches of longitudinal travel under manual operation. When the X-axis powerfeed is engaged, the effective powered longitudinal travel is 18 inches, which is still ample for most workpieces while providing consistent, automated feed rates for improved surface finish.
