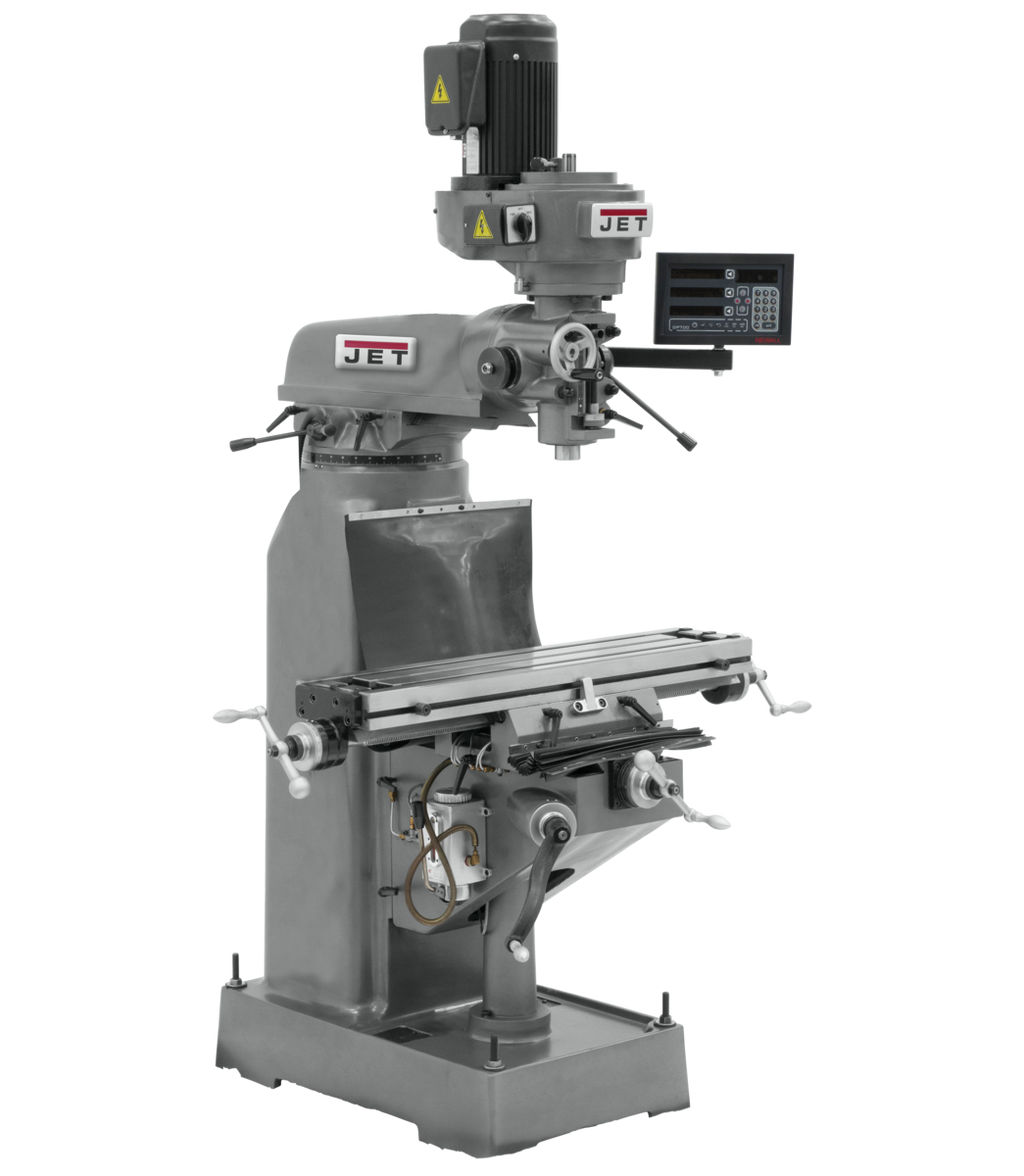

JET JVM-836-1 Mill with Newall DP700 DRO with X and Y-Axis Powerfeed by JET is a full-featured vertical milling machine engineered for machinists and production shops that demand repeatable accuracy and efficient workflow. Equipped with a Newall DP700 Digital Readout and X and Y-Axis Powerfeed, this step-pulley mill combines precision motion control with robust construction, making it an ideal choice for milling, drilling, and boring operations where tight tolerances are non-negotiable.

Key Features

• Graduated scale on column for quick, accurate vertical positioning reference
• Hardened and ground precision table delivers a durable, flat work surface that maintains tolerances over time
• Head tilts left or right to accommodate angular milling operations
• High precision spindle bearings ensure smooth, low-runout spindle rotation for superior surface finishes
• Large diameter chromed quill resists wear and provides smooth, consistent quill travel
• One shot lubrication system simplifies maintenance and helps extend the service life of critical moving components
• Precision bored and honed milling head retains tight tolerances for accurate, repeatable cuts
• Precision ground dovetail ways provide smooth, backlash-minimized table movement on all axes
• Newall DP700 DRO delivers real-time digital position readout for fast, accurate setup and reduced measurement errors
• X and Y-Axis Powerfeed enables consistent, hands-free table feed rates for improved cut quality and operator efficiency
• Backed by the industry-leading JET Two Year Warranty for long-term confidence in your investment

Specifications

• Country of Origin: China
• Stock Number: 691175
• Collet Capacity: 1/8 - 7/8
• Distance Spindle to Column (Max.): 15-3/4 in.
• Max Distance Spindle to Table: 13-3/4 in.
• Motor: 1-1/2 HP, 115/230V, 1Ph
• Number of Axis: 2
• Number of Spindle Speeds: 5
• Overall Dimensions (L x W x H): 55 x 52 x 78 in.
• Powerfeed: X and Y-Axis
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter: 3-3/8 in.
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Range of Spindle Speeds (RPM): 240 - 1,550
• Spindle Taper: R-8
• Spindle Travel: 5 in.
• Style (Type): Step Pulley R8
• T-Slot Centers: 2-1/2 in.
• Table Cross Travel: 9-1/2 in.
• Table Longitudinal Travel: 22-1/4 in.
• Table Longitudinal Travel With Powerfeed: 18 in.
• Table Size (L x W): 7-7/8 x 35-3/4 in.
• Travel of Knee: 14 in.
• Travel of Ram: 10-1/2 in.
• Weight: 1,617 lbs.
• Work Table Weight Capacity: 500 lbs.

Frequently Asked Questions

What digital readout system is included with this mill?

This mill comes equipped with the Newall DP700 DRO, a high-quality digital readout system that provides real-time position feedback on your axes, helping to speed up setups and reduce measurement errors during milling operations.

What spindle taper does the JET JVM-836-1 use?

The JET JVM-836-1 uses an R-8 spindle taper, which is one of the most common and widely supported tapers in the industry, offering broad compatibility with tooling, collets, and end mill holders. Collet capacity ranges from 1/8 to 7/8.

What is the available range of spindle speeds on this machine?

The step pulley design provides 5 spindle speeds ranging from 240 to 1,550 RPM, allowing the operator to select an appropriate cutting speed for a variety of materials and tooling diameters.

Does this mill include powerfeed on both the X and Y axes?

Yes, this mill includes powerfeed on both the X and Y-Axis. When using the powerfeed, the table longitudinal travel is 18 inches. The available quill down feed rates are .0015, .003, and .006 IPR for controlled depth feeding during drilling and boring operations.
