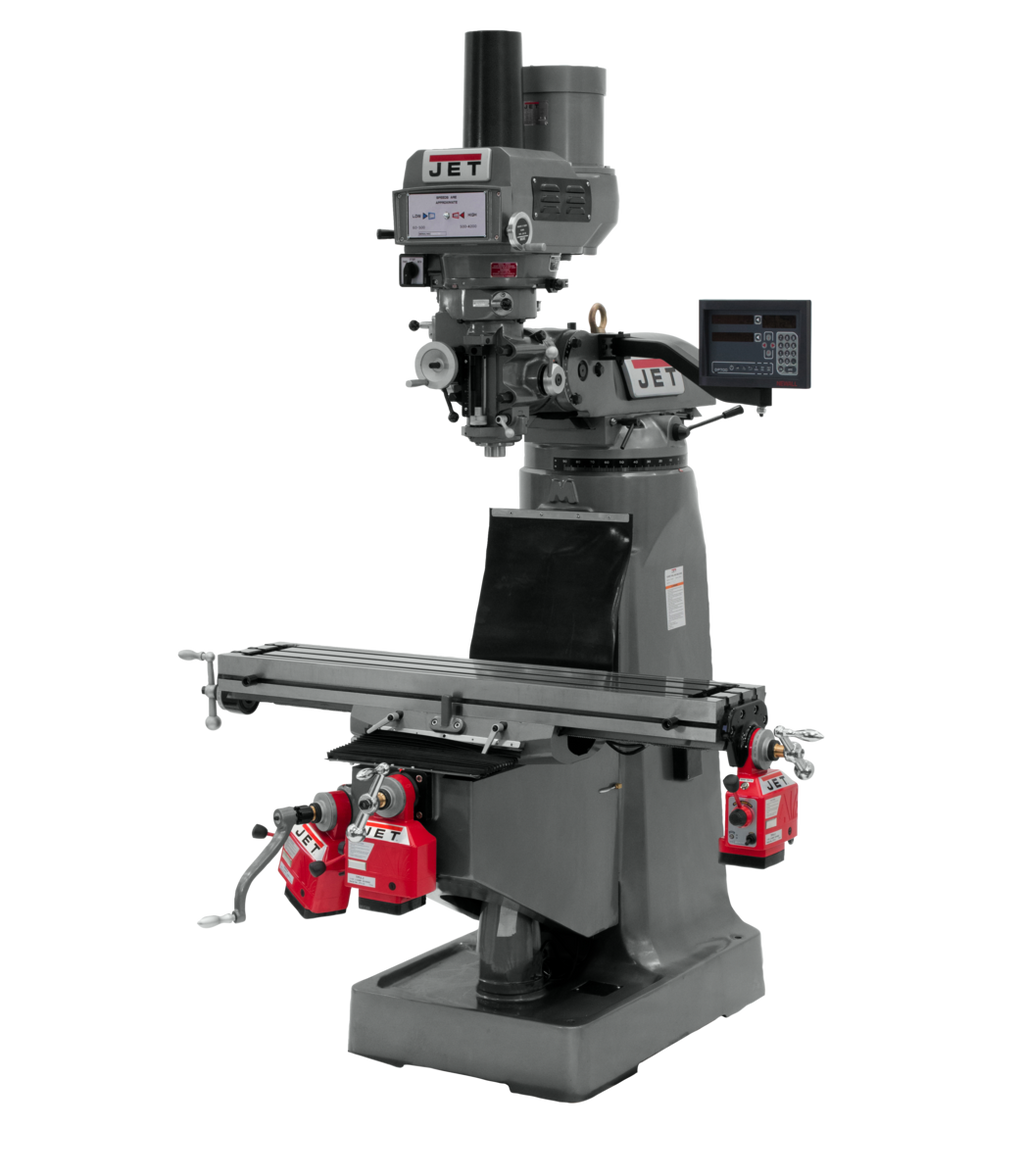

JET JTM-4VS-1 Mill with 3-Axis Newall DP700 DRO (Quill), X/Y/Z-Axis Powerfeeds, and Power Draw Bar is a professional-grade variable speed vertical milling machine engineered by JET for demanding machining operations. Built on a Certified Meehanite casting process, this mill delivers precision, rigidity, and versatility for skilled machinists who require consistent, repeatable results. With a 3-axis Newall DP700 digital readout, full X, Y, and Z-axis powerfeeds, and a pneumatic power draw bar, this machine is designed to maximize productivity and accuracy across a wide range of milling applications.
Key Features
- Adjustable gibs throughout for precise fit and long-term accuracy
- Heavy duty splined motor drive for reliable power transmission
- Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
- Large diameter quill is chromed for durability and smooth operation
- One shot lubrication system for simplified, consistent machine maintenance
- Precision hardened and ground ways and table for accurate, repeatable cuts
- Spindle head is internally cooled to maintain stable operating temperatures
- Tolerance test sheet included for verified out-of-box accuracy
- Certified Meehanite casting construction for rigidity and vibration damping
- Precision bored and honed milling head ensures quality cuts
- Three-stage power downfeed with automatic stop for ease of use
- 3-axis Newall DP700 digital readout (quill) for precise positional feedback
- Pneumatic power draw bar for fast and convenient tool changes
- Variable spindle speed range of 60 - 4,200 RPM for broad material compatibility
- Available in single phase power configuration (115/230V)
- Backed by JET's industry-leading two-year full service and parts warranty
Specifications
- MPN: JT9-691171
- Stock Number: 691171
- Style/Type: Variable Speed R8
- Motor: 2 HP, 115/230V, 1-Phase
- Range of Spindle Speeds: 60 - 4,200 RPM
- Spindle Taper: R-8
- Spindle Travel: 5 in.
- Quill Diameter: 3-3/8 in.
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Collet Capacity: 1/8 - 7/8 in.
- Number of Axes: 3 (Quill)
- Powerfeed: X, Y, and Z-Axis
- Power Draw Bar: Pneumatic
- Table Longitudinal Travel: 34 in.
- Table Longitudinal Travel with Powerfeed: 28-3/4 in.
- Table Cross Travel: 12 in.
- T-Slot Centers: 2-1/2 in.
- Distance Spindle to Column (Max.): 19 in.
- Max Distance Spindle to Table: 17-1/2 in.
- Overall Dimensions (L x W x H): 66 x 63 x 85 in.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- JET JTM-4VS-1 Variable Speed Vertical Milling Machine
- 3-Axis Newall DP700 Digital Readout (Quill)
- X, Y, and Z-Axis Powerfeeds
- Pneumatic Power Draw Bar
- Tolerance test sheet
Frequently Asked Questions
- What spindle taper does the JET JTM-4VS-1 use?
- The JET JTM-4VS-1 uses an R-8 spindle taper, which is one of the most common and widely supported tapers in vertical milling, offering broad compatibility with tooling and collets ranging from 1/8 to 7/8 inch capacity.
- Does this mill include a coolant pump?
- The JTM-4VS-1 features an internal coolant tank built directly into the casting base for use with a coolant system; however, the coolant pump is not included and must be sourced separately.
- What power supply is required to operate this milling machine?
- This model is configured for single phase power at 115/230V and is driven by a 2 HP motor, making it suitable for professional shops with standard single phase electrical service.
- What digital readout system is included, and how many axes does it cover?
- The machine comes equipped with a Newall DP700 Digital Readout covering 3 axes (quill configuration), providing precise positional feedback across the X, Y, and Z axes to support accurate and repeatable machining operations.
