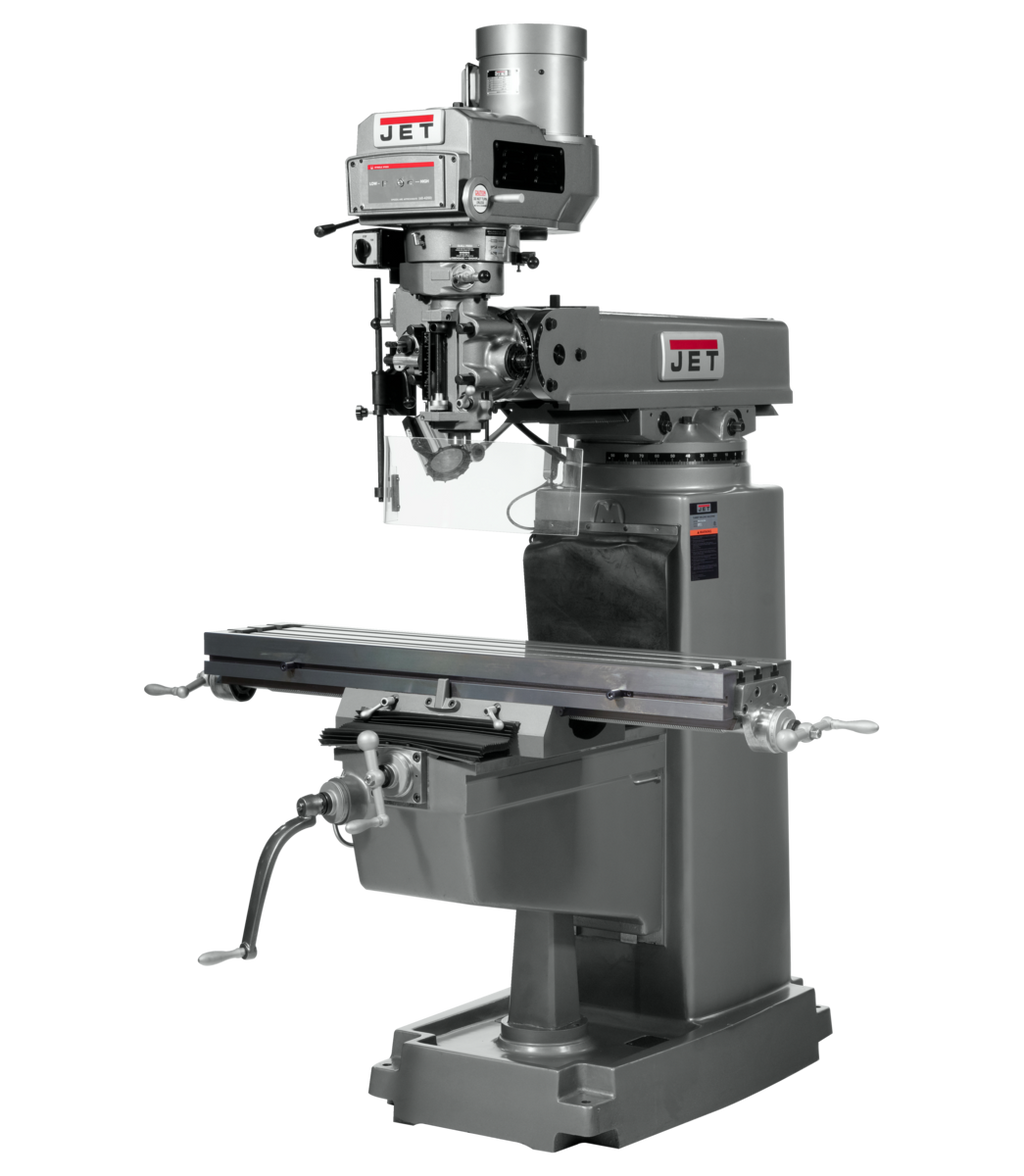

JET JTM-1050VS2 Variable Speed Mill w/LED Worklamp & Spindle Guard 230/460V 3Ph is a professional-grade vertical milling machine from JET engineered for demanding metalworking applications that require precision, power, and reliability. Built around JET's proprietary certified Meehanite column castings and a precision bored and honed milling head, this variable speed mill delivers consistent, high-quality cuts across a wide range of milling operations. With a robust 3 HP motor, a 10" x 50" hardened and ground table capable of supporting 840 pounds, and a variable spindle speed range of 60 - 4200 RPM, the JTM-1050VS2 is designed to meet the rigorous demands of production and shop environments alike.

Key Features

• Chrome lead screws on X and Y axis for smooth, accurate table movement and long-term wear resistance
• Hardened and ground table capable of supporting 840 pounds, ensuring a stable, precise workholding surface
• JET's proprietary certified Meehanite column castings provide superior rigidity and vibration dampening for accurate milling performance
• Precision bored and honed milling head for consistent, high-quality cut results
• Three-stage power downfeed with automatic stop for repeatable, controlled depth drilling and boring operations
• One shot lubrication system simplifies maintenance and helps extend the service life of critical machine components
• Internal coolant tank built into the base for use with an optional coolant system (coolant pump not included)

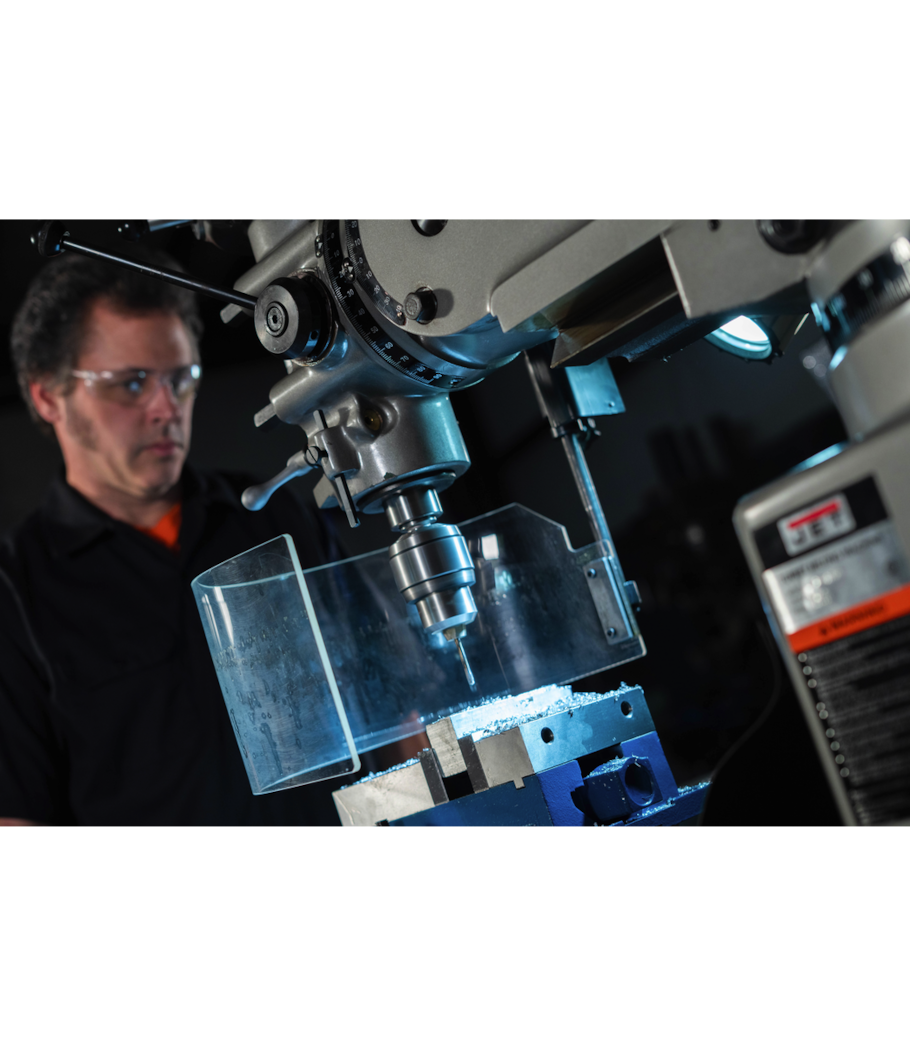

• Includes LED worklamp and spindle guard for improved visibility and operator safety
• Variable spindle speed range of 60 - 500 RPM (low) and 500 - 4200 RPM (high) for versatile material and tooling compatibility
• R8 spindle taper with collet capacity from 1/8" to 5/8"
• 5" spindle travel and 16-1/8" knee travel for flexible workpiece positioning
• Quill downfeed rates of .0015, .003, and .008 IPR for precise depth control
• 230/460V, 3-Phase power input for compatibility with industrial power supplies

Specifications

• MPN: JT9-691050
• Motor: 3 HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 60 - 500 / 500 - 4200
• Spindle Taper: R8
• Collet Capacity: 1/8 - 5/8 in.
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 / .003 / .008
• Table Size (L x W): 10 x 50 in.
• Work Table Weight Capacity (Lbs.): 840
• Table Longitudinal Travel (In.): 34-1/4
• Table Cross Travel (In.): 14-3/4
• Travel of Knee (In.): 16-1/8
• Saddle Width (In.): 20
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Max.) (In.): 27
• Column Width (In.): 13
• Overall Dimensions (L x W x H) (In.): 63 x 63 x 89
• Weight (Lbs.): 2466
• Stock Number: 691050
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What is the spindle speed range on the JET JTM-1050VS2?

The JTM-1050VS2 offers a two-range variable spindle speed system: 60 - 500 RPM in the low range and 500 - 4200 RPM in the high range, providing broad versatility for milling a wide variety of materials and using different tooling sizes.

Does the JTM-1050VS2 include a coolant system?

The machine features an internal coolant tank built into the base for use with an optional coolant system; however, the coolant pump is not included and must be purchased separately.

What makes the column castings on the JTM-1050VS2 different from standard mills?

The JTM-1050VS2 uses JET's proprietary certified Meehanite column castings, which are specifically engineered to provide enhanced rigidity and vibration dampening compared to standard gray iron castings, contributing to greater accuracy and longer machine life.

What power downfeed options are available on the JTM-1050VS2?

The machine is equipped with a three-stage power downfeed with automatic stop, offering quill downfeed rates of .0015, .003, and .008 IPR. This allows operators to select the appropriate feed rate for the material and operation, with the automatic stop ensuring repeatable depth control.
