Product Features
Product Description

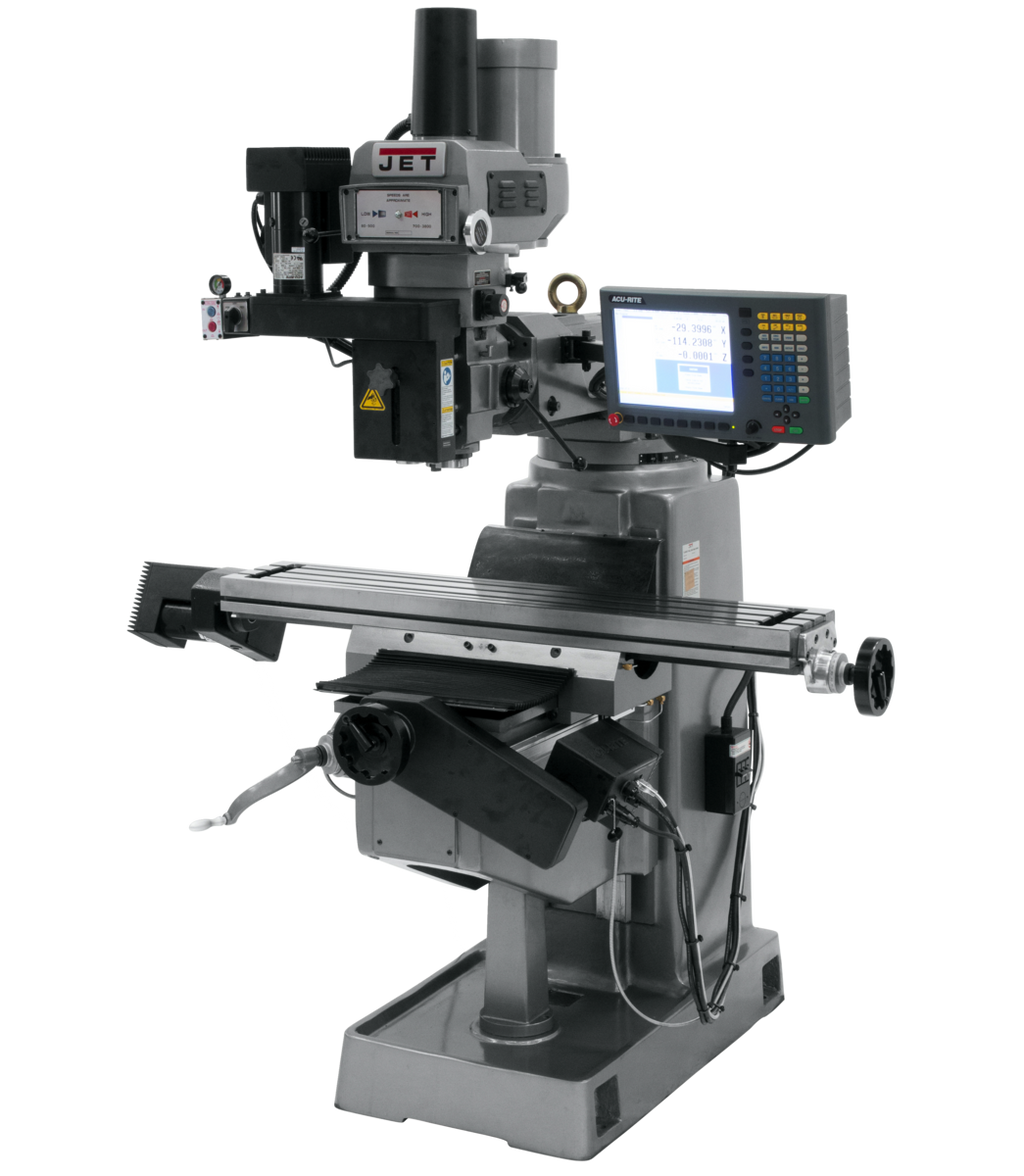

JET JTM-949EVS/230 Mill with 2-Axis ACU-RITE G-2 MILLPWR CNC is a professional-grade vertical milling machine from JET, engineered for machinists and shops that demand precise, repeatable results in heavy cutting applications. Combining a Meehanite-cast construction with a factory-installed ACU-RITE MILLPWR G2 2-axis CNC control package, this mill delivers the accuracy of digital automation alongside the durability of a hardened and ground worktable - making it a powerful solution for complex milling operations that require consistent performance and operator efficiency.
Key Features
- Adjustable gibs throughout for precise movement control and reduced play
- Class 7 bearings support the spindle for maximum rigidity in heavy cutting applications
- Dual locks on all moveable surfaces for secure, stable positioning during operation
- Heavy-duty spindle brake for fast, controlled spindle stopping
- Internal coolant tank built into casting base keeps the footprint clean and self-contained
- Precision bored and honed milling head ensures accurate spindle alignment and finish quality
- Precision hardened and ground ways and table for long-term accuracy and smooth travel
- Quick spindle feed nut easily adjusts to different depths for efficient depth-of-cut changes
- Three-stage power downfeed with automatic stop for controlled, repeatable quill movement
- Two 115V outlets on electrical box for DRO or powerfeeds, adding versatile accessory support
- Factory-installed ACU-RITE MILLPWR G2 CNC package with 2-axis control for digital automation and enhanced precision
- Inverter drive system with Delta, B inverter type for smooth, variable speed control
- Emergency stop located on a swing-away control arm that moves all major functions within the operator's reach
- Automatic lubrication cycles every 30 minutes with a flow of 3 - 6cc to reduce maintenance demands
- Backed by the industry-leading JET Two Year Warranty
Specifications
- Stock Number: 690575
- MPN: JT9-690575
- CNC Package: ACU-RITE MILLPWR G2
- Number of Axis: 2
- Motor: 3HP, 230V, 3Ph
- Inverter Type: Delta, B
- Collet Capacity: 1/8 - 7/8
- Quill Diameter (In.): 3-3/8
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Column Width (In.): 18
- Distance Spindle to Column (Max.) (In.): 18-1/8
- Max Distance Spindle to Table (In.): 20-3/4
- Overall Dimensions (L x W x H) (In.): 67 x 64 x 86
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What CNC control system is included with this mill?
- This mill comes with a factory-installed ACU-RITE MILLPWR G2 CNC package configured as a 2-axis control system, providing digital automation for greater precision and operator efficiency on the shop floor.
- What type of spindle bearings does this mill use, and why does it matter?
- The spindle is supported by Class 7 bearings, which are specifically selected to provide maximum rigidity during heavy cutting applications - helping to maintain accuracy and extend spindle life under demanding workloads.
- What power requirements does this mill have?
- The JTM-949EVS/230 is powered by a 3HP motor requiring 230V, 3-phase electrical service. It also features two 115V outlets on the electrical box that can be used for a DRO or powerfeeds.
- How does the lubrication system work on this mill?
- The mill features an automatic lubrication system that cycles every 30 minutes, delivering a flow of 3 - 6cc of lubricant to reduce maintenance requirements and help keep critical components properly protected during extended operation.
