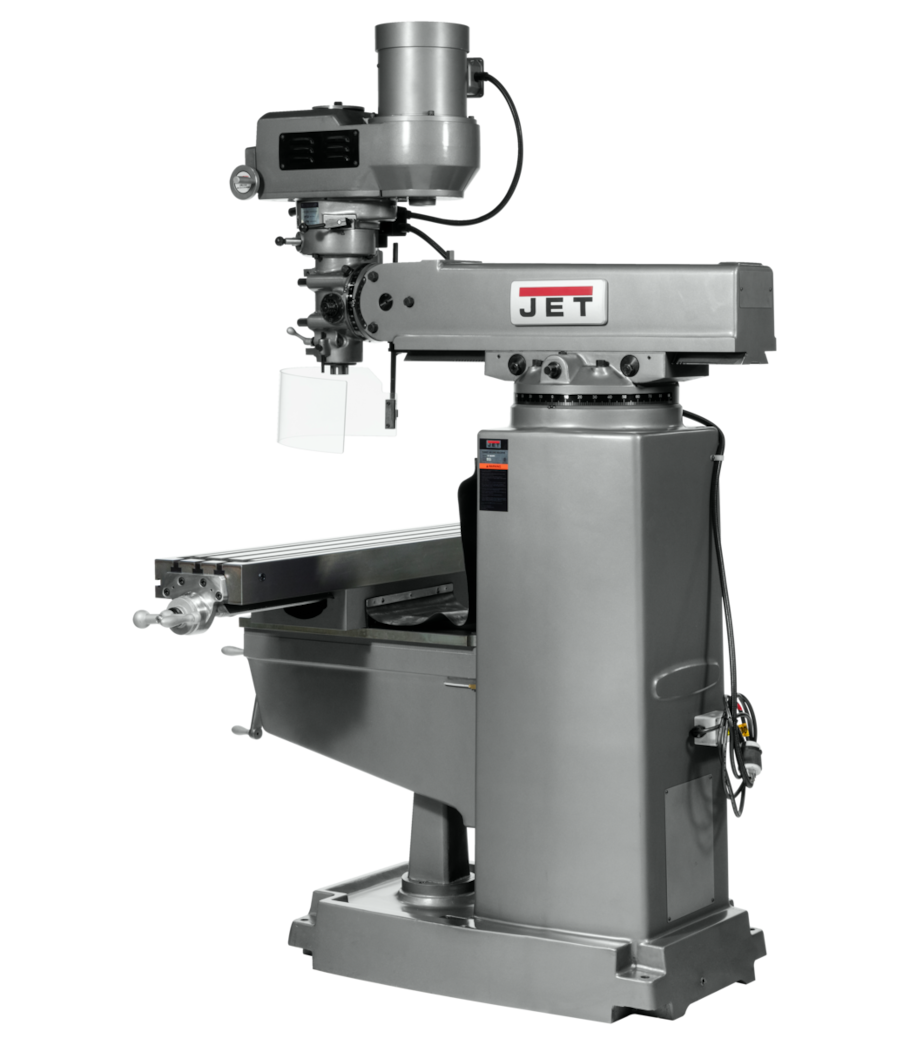

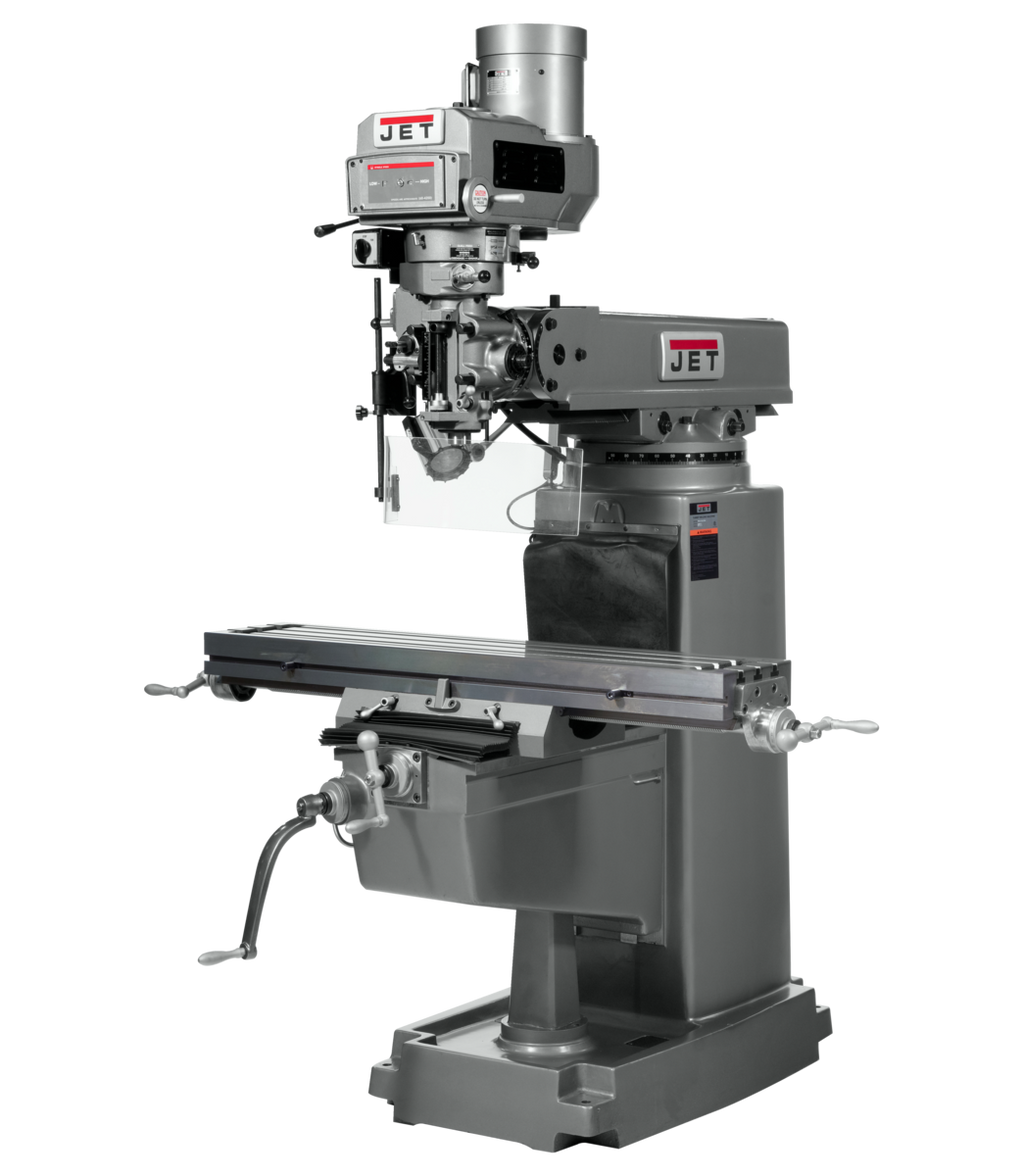

JET JTM-1050VS2 Mill with 3-Axis Newall DP700 DRO (Quill), X/Y/Z-Axis Powerfeeds, and Power Draw Bar is a professional-grade variable speed vertical milling machine engineered by JET for demanding metal cutting, drilling, and milling applications. Built on Meehanite castings with a heavy-duty hardened and ground 10" x 50" table, this mill delivers exceptional rigidity and precision, backed by the industry-leading JET Two Year Warranty.

Key Features

• Adjustable gibs throughout for precise fit and reduced play across all axes
• Chrome lead screws on X and Y axis for smooth, accurate movement and extended service life
• Chrome-plated motor shaft with bearing support at end for enhanced durability and stability
• Hardened and ground square vertical knee ways and cross ways for superior rigidity and accuracy
• Heavy duty motor drive delivering consistent power under load
• Locks on all moveable surfaces to secure workpiece position during operation
• One shot lubrication system for convenient and reliable machine maintenance
• Spindle head is internally cooled to manage heat during extended milling operations
• Three stage power downfeed with automatic stop for controlled, repeatable depth cuts
• Tolerance test sheet included to verify precision right out of the box
• Meehanite castings provide maximum vibration damping and structural integrity
• High precision Class 7 bearings support the spindle for accurate, chatter-free cutting
• Precision bored and honed milling head ensures quality cuts across a wide range of materials
• 3-Axis Newall DP700 DRO (Quill) for accurate real-time position readout
• Pneumatic power draw bar for fast, tool-less collet changes
• Variable speed spindle ranging from 70 to 3,800 RPM to match a wide variety of cutting applications
• X, Y, and Z-axis powerfeeds for reduced operator fatigue and consistent feed rates

Specifications

• MPN: JT9-690234
• Style (Type): Variable Speed R8
• Motor: 3 HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 70 - 3,800
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Number of Axis: 3 (Quill)
• Table Longitudinal Travel (In.): 35
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Max.) (In.): 26
• Max Distance Spindle to Table (In.): 19
• Powerfeed: X, Y, Z-Axis
• Power Draw Bar: Pneumatic
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Prop 65: Cancer and Reproductive Harm
• Country of Origin: Taiwan

What's Included

• JET JTM-1050VS2 Variable Speed Milling Machine
• Newall DP700 3-Axis DRO (Quill)
• X, Y, and Z-Axis Powerfeeds
• Pneumatic Power Draw Bar
• Tolerance test sheet

Frequently Asked Questions

What spindle taper does the JET JTM-1050VS2 use?

The JTM-1050VS2 uses an R-8 spindle taper, which is one of the most common and widely supported tapers for vertical knee mills, compatible with a large selection of collets, end mill holders, and tooling.

What are the available quill down feed rates on this machine?

The three-stage power downfeed offers selectable feed rates of .0015, .003, and .006 inches per revolution (IPR), paired with an automatic stop function for precise and repeatable depth control on every pass.

How does the pneumatic power draw bar improve workflow?

The pneumatic power draw bar eliminates the need for a wrench when changing tooling. Operators can secure or release R-8 collets and tool holders quickly with a single button press, significantly reducing tool change time and operator effort during production runs.

What lubrication system does the JTM-1050VS2 use, and why does it matter?

The machine features a one shot lubrication system, which distributes oil to all critical bearing surfaces and ways simultaneously with a single pump action. This ensures consistent lubrication across the machine, reduces wear, and simplifies routine maintenance compared to manually oiling individual points.
