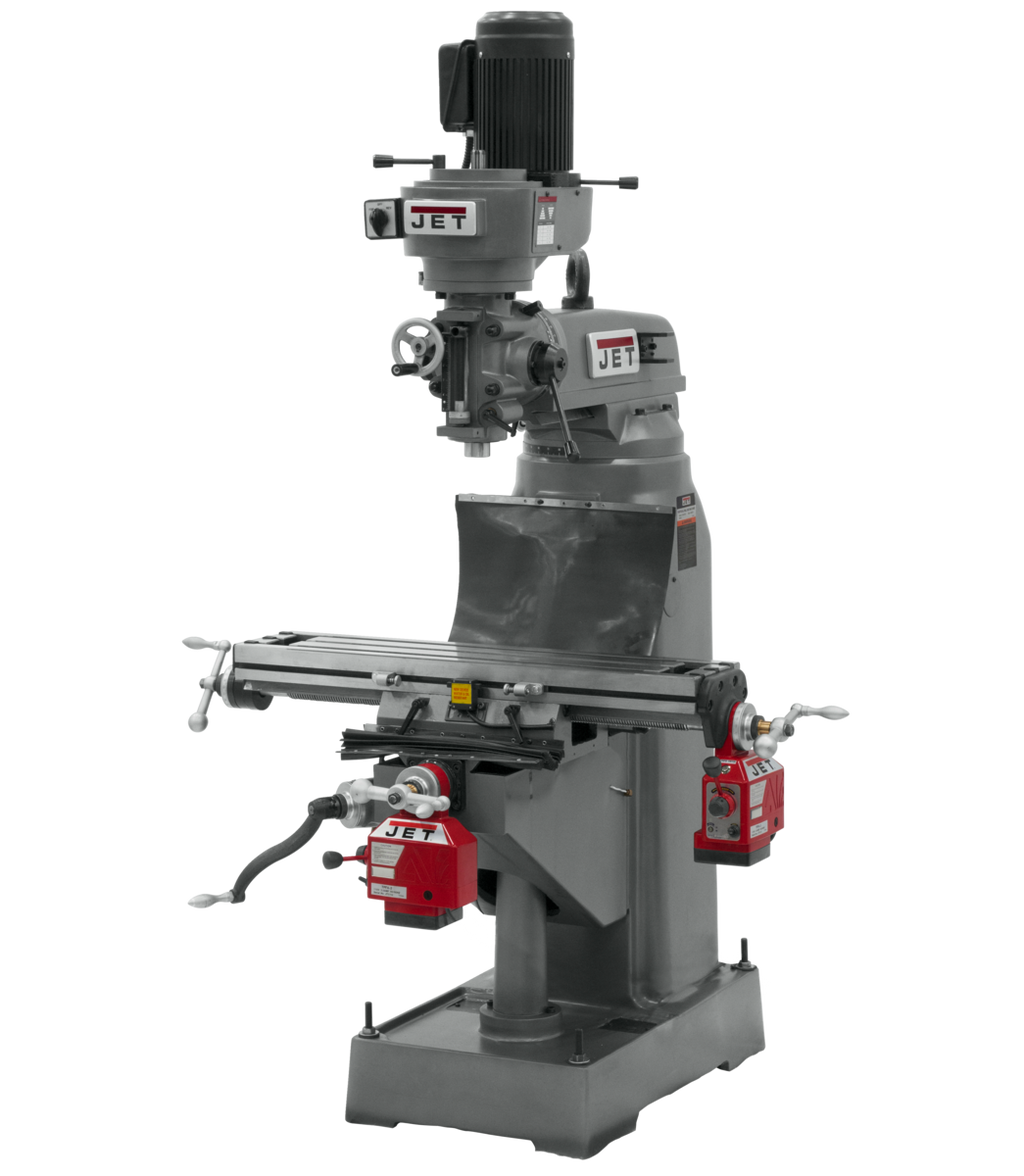

JET JVM-836-1 Mill with X and Y-Axis Powerfeeds is a heavy-duty vertical milling machine from JET engineered for machinists and metalworking professionals who demand accuracy, reliability, and smooth production performance. Featuring both X and Y-Axis powerfeeds alongside a precision bored and honed milling head paired with a hardened and ground table, this mill delivers consistent tolerance retention across a wide range of milling operations - all backed by the JET Two Year Warranty.

Key Features

• Precision bored and honed milling head ensures exceptional accuracy and repeatability in milling operations
• Hardened and ground precision table provides a durable, stable work surface that maintains tolerances over time
• Precision ground dovetail ways deliver smooth, accurate movement and long-term wear resistance
• High precision spindle bearings support consistent spindle performance and extended service life
• Large diameter chromed quill resists wear and contributes to smooth, precise quill travel
• X and Y-Axis powerfeeds allow hands-free, consistent table feed for improved surface finish and operator ease
• Head tilts left or right for versatile angled milling operations
• One shot lubrication system simplifies maintenance and helps protect critical moving components
• Graduated scale on column enables quick and accurate vertical positioning reference
• Locks on all moving surfaces increase user safety during operation
• Backed by the industry-leading JET Two Year Warranty

Specifications

• MPN: JT9-690211
• Stock Number: 690211
• Style (Type): Step Pulley R8
• Motor: 1-1/2 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 5
• Range of Spindle Speeds (RPM): 240 - 1,550
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Table Size (L x W) (In.): 7-7/8 x 35-3/4
• Table Longitudinal Travel (In.): 22-1/4
• Table Longitudinal Travel With Powerfeed (In.): 18
• Table Cross Travel (In.): 9-1/2
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 500
• Powerfeed: X and Y-Axis
• Distance Spindle to Column (Max.) (In.): 15-3/4
• Max Distance Spindle to Table (In.): 13-3/4
• Travel of Knee (In.): 14
• Travel of Ram (In.): 10-1/2
• Overall Dimensions (L x W x H) (In.): 55 x 52 x 78
• Weight (Lbs.): 1,617
• Country of Origin: China
• Prop 65: Cancer and Reproductive Harm
• Warranty: JET Two Year Warranty

Frequently Asked Questions

What powerfeeds are included on the JET JVM-836-1?

The JVM-836-1 is equipped with both X and Y-Axis powerfeeds, enabling hands-free, consistent table movement along both axes for improved surface finish quality and reduced operator fatigue during longer milling runs.

What spindle taper does this mill use?

This mill uses an R-8 spindle taper, one of the most widely used standards in vertical milling machines, with a collet capacity range of 1/8 to 7/8 inch.

How many spindle speeds are available, and what is the RPM range?

The JVM-836-1 offers 5 spindle speeds with a range of 240 to 1,550 RPM, providing flexibility for milling a variety of materials and tool diameters using its step pulley drive system.

What lubrication system does this mill use?

The JVM-836-1 features a one shot lubrication system, which simplifies routine maintenance by allowing the operator to lubricate critical moving components quickly and efficiently in a single action, helping to extend the machine's service life.
