Product Description

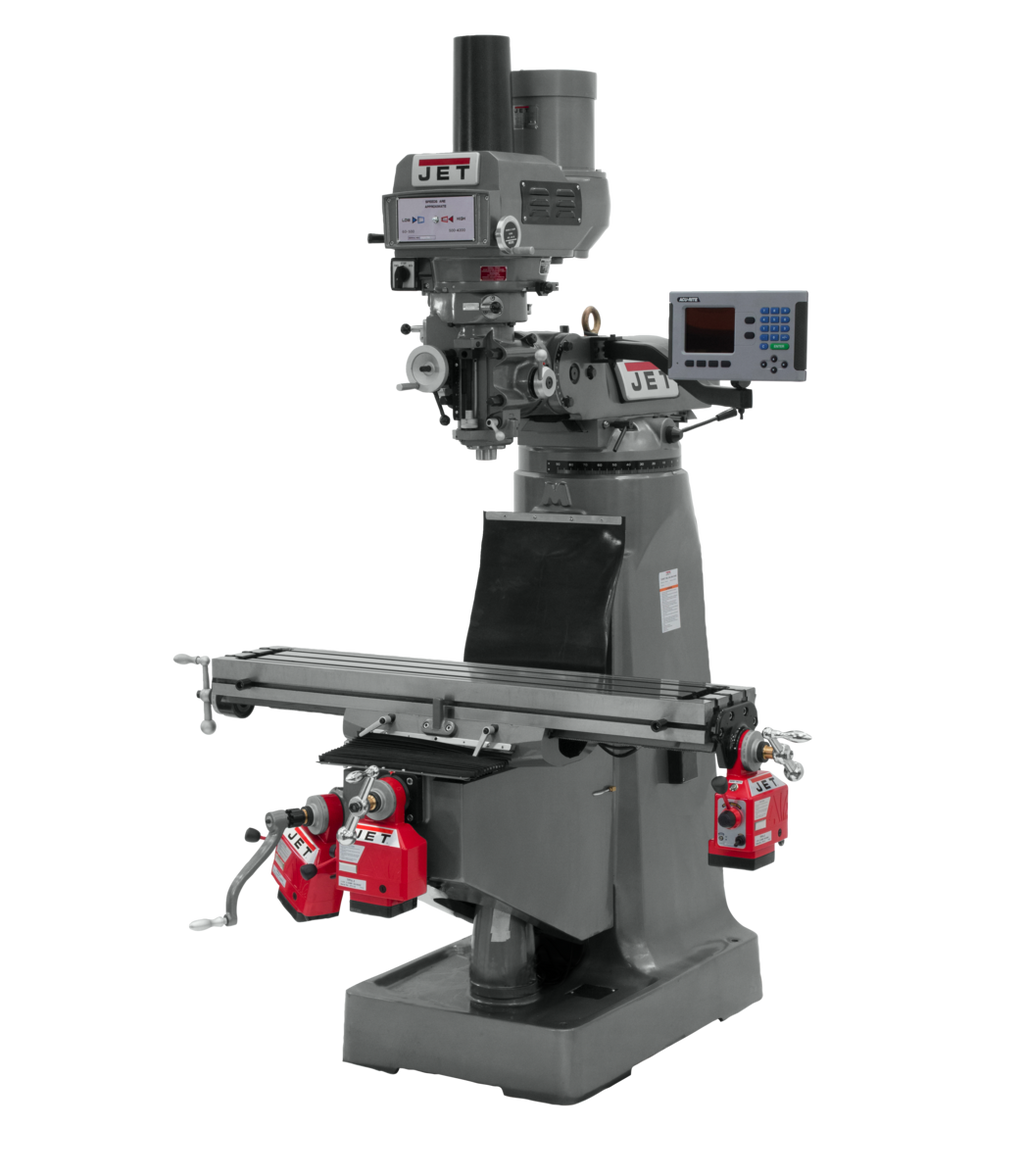

The JET JTM-4VS Mill with 3-Axis ACU-RITE 203 DRO (Quill), X/Y/Z-Axis Powerfeeds, and Power Drawbar is a precision vertical milling machine engineered by JET for demanding machining operations. Built on a Certified Meehanite casting process, this variable speed mill delivers consistent, reliable performance across a wide range of milling tasks. The integrated ACU-RITE 203 Digital Readout system provides real-time positional feedback on all three axes, while the pneumatic power drawbar and tri-axis powerfeeds dramatically reduce operator fatigue and improve throughput. Backed by JET's industry-leading two-year full service and parts warranty, this mill is a serious investment for professional machinists and production shops alike.
Key Features
- Adjustable gibs throughout for precise fit and reduced play across all axes
- Heavy duty splined motor drive ensures robust, reliable power transmission under load
- Internal coolant tank built into the casting base for use with a coolant system (coolant pump not included)
- Large diameter chromed quill for smooth, accurate quill travel and extended wear life
- One shot lubrication system for fast, consistent way and bearing lubrication
- Precision hardened and ground ways and table for superior surface finish and dimensional accuracy
- Spindle head is internally cooled to maintain consistent operating temperatures during extended use
- Precision bored and honed milling head for quality, repeatable cuts
- Three-stage power downfeed with automatic stop for ease of use and repeatable depth control
- 3-Axis ACU-RITE 203 DRO (Quill) provides digital readout on X, Y, and Z axes
- Pneumatic power drawbar for fast, effortless tool changes
- X, Y, and Z-axis powerfeeds for reduced operator fatigue during long production runs
- Tolerance test sheet included for out-of-box verification of machine accuracy
- Available in single or three phase power configurations
Specifications
- MPN: JT9-690153
- Stock Number: 690153
- Brand: JET
- Country of Origin: Taiwan
- Motor: 3 HP, 230/460V, 3Ph
- Number of Axes: 3 (Quill)
- Powerfeed: X, Y, and Z-Axis
- Power Draw Bar: Pneumatic
- Quill Diameter: 3 in.
- Collet Capacity: 1/8 - 7/8 in.
- Max Distance Spindle to Table: 17-1/2 in.
- Distance Spindle to Column (Max.): 19 in.
- Overall Dimensions (L x W x H): 66 x 63 x 85 in.
- Prop 65: Cancer and Reproductive Harm
What's Included
- JET JTM-4VS Variable Speed Milling Machine
- ACU-RITE 203 3-Axis DRO (Quill) - X, Y, and Z-Axis
- X, Y, and Z-Axis Powerfeeds
- Pneumatic Power Drawbar
- Tolerance test sheet
Frequently Asked Questions
- Does this mill include a coolant pump?
- No. While the machine features an internal coolant tank built directly into the casting base, designed for use with a coolant system, the coolant pump is not included and must be purchased separately.
- What does the ACU-RITE 203 DRO provide, and which axes does it cover?
- The ACU-RITE 203 Digital Readout system provides real-time positional feedback across all three axes - X, Y, and Z (Quill) - allowing the operator to monitor and confirm precise table and quill positioning during machining operations.
- What type of power drawbar does this mill use, and what are its advantages?
- This mill is equipped with a pneumatic power drawbar. A pneumatic power drawbar allows for fast, consistent tool changes without the manual effort of a hand wrench, improving efficiency and reducing operator fatigue during high-frequency tool change operations.
- What motor power and electrical configuration does this machine require?
- The JET JTM-4VS is powered by a 3 HP motor rated at 230/460V, 3-phase. It is intended for use in shop environments with three-phase electrical service. The machine is available in single or three phase power configurations.
