Product Features
Product Description

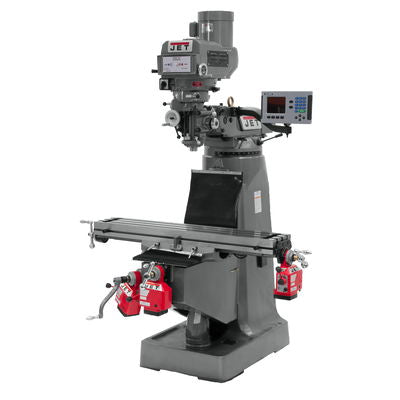

JET JTM-4VS Mill with 3-Axis ACU-RITE 203 DRO (Quill) with XY & Z-Axis Powerfeeds is a professional-grade vertical milling machine engineered by JET for demanding machining operations. Built on a Certified Meehanite casting process foundation, this variable speed mill delivers consistent, reliable performance with precision-bored and honed milling heads for quality cuts. Equipped with a 3-Axis ACU-RITE 203 Digital Readout on the quill, XY-axis and Z-axis powerfeeds, and a wide spindle speed range of 60 - 4,200 RPM, this machine is purpose-built for machinists who require accuracy, durability, and full-featured control in a single-phase or three-phase shop environment.
Key Features
- Adjustable gibs throughout for precise fit and reduced play across all axes
- Heavy duty splined motor drive for robust, reliable power transmission
- Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
- Large diameter quill is chromed for smooth, long-lasting operation
- One shot lubrication system for fast, convenient way and table maintenance
- Precision hardened and ground ways and table for superior accuracy and surface finish
- Spindle head is internally cooled to maintain consistent operating temperatures
- Tolerance test sheet included for verified out-of-box precision
- Certified Meehanite casting process construction for vibration-damping rigidity
- Precision-bored and honed milling head ensures quality cuts
- Three-stage power downfeed with automatic stop for operator ease and repeatability
- 3-Axis ACU-RITE 203 DRO on quill for real-time, accurate positional readout
- XY-axis and Z-axis powerfeeds for smooth, controlled table and vertical movement
- Variable spindle speed range from 60 to 4,200 RPM to match a wide variety of materials and operations
- Backed by JET's industry-leading two-year full service and parts warranty
Specifications
- MPN: JT9-690141
- Stock Number: 690141
- Style / Type: Variable Speed R8
- Motor: 3 HP, 230/460V, 3Ph
- Range of Spindle Speeds: 60 - 4,200 RPM
- Spindle Taper: R-8
- Spindle Travel: 5 in.
- Quill Diameter: 3-3/8 in.
- Quill Down Feed Rates: .0015 - .003 - .006 IPR
- Collet Capacity: 1/8 - 7/8 in.
- Number of Axis: 3 (Quill)
- Powerfeed: X and Y-Axis
- Table Size (L x W): 9 in.
- Table Longitudinal Travel: 34 in.
- Table Longitudinal Travel With Powerfeed: 28-3/4 in.
- Table Cross Travel: 12 in.
- T-Slot Centers: 2-1/2 in.
- Distance Spindle to Column (Max.): 19 in.
- Max Distance Spindle to Table: 17-1/2 in.
- Overall Dimensions (L x W x H): 66 x 63 x 85 in.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- JET JTM-4VS Variable Speed Milling Machine
- 3-Axis ACU-RITE 203 Digital Readout (Quill)
- XY-Axis Powerfeeds
- Z-Axis Powerfeed
- Tolerance test sheet
Frequently Asked Questions
- What spindle taper does the JET JTM-4VS use?
- The JET JTM-4VS uses an R-8 spindle taper, which is a widely used standard in vertical knee mills. It accepts collets ranging from 1/8 to 7/8 in. and is compatible with a broad selection of tooling and accessories.
- What is the spindle speed range on this milling machine?
- The JTM-4VS offers a variable spindle speed range of 60 to 4,200 RPM, allowing operators to dial in the appropriate cutting speed for a wide variety of materials, from aluminum and plastics to steel and cast iron.
- Does the JTM-4VS include a coolant pump?
- The machine features an internal coolant tank built into the casting base for use with a coolant system; however, the coolant pump is not included and must be sourced separately.
- What warranty does the JET JTM-4VS carry?
- The JET JTM-4VS is backed by JET's industry-leading two-year full service and parts warranty, reflecting the brand's commitment to long-term reliability and customer support.
